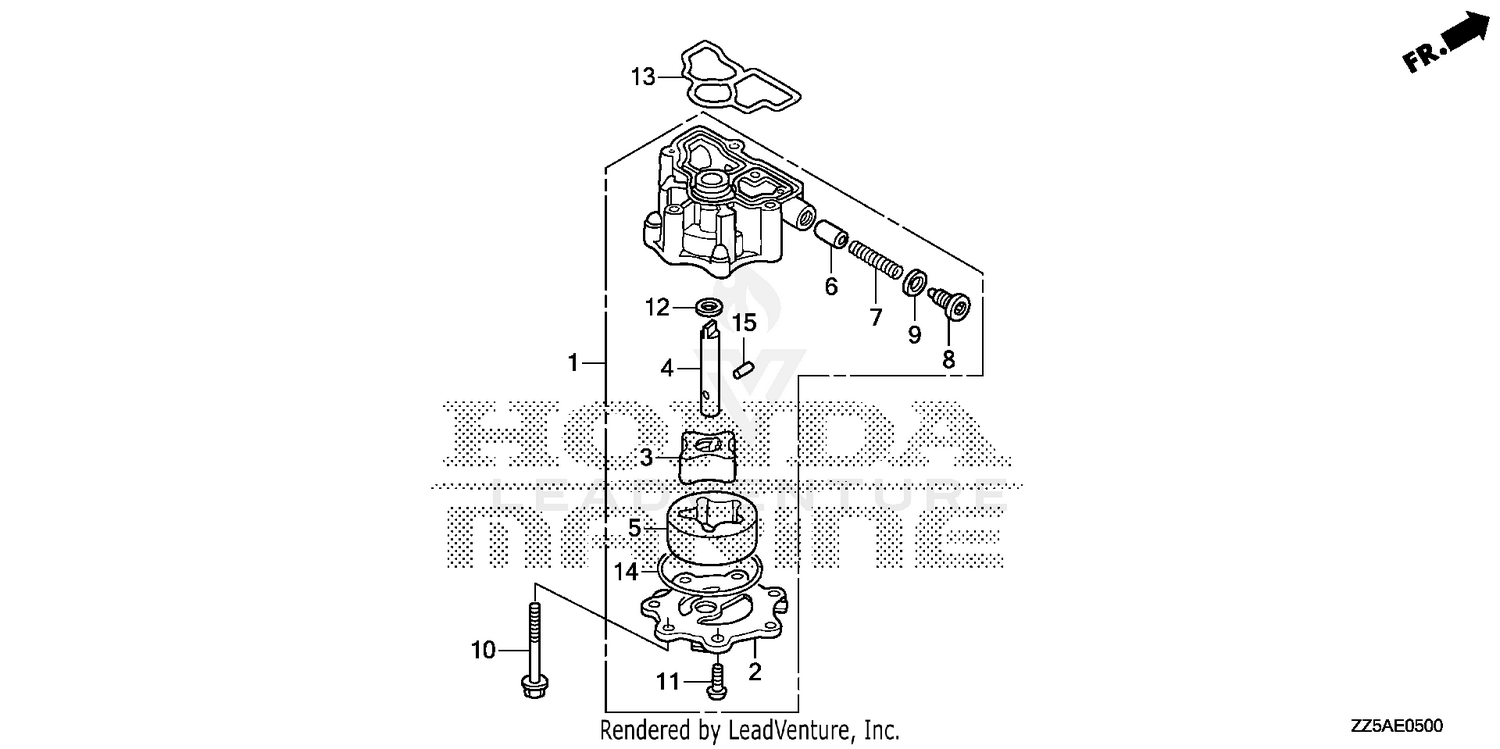

| Ref | Part Number | Description |
|---|
| 1 |
15100-ZV5-000 |
PUMP ASSY., OIL Price: $303.66 |
| 2 |
15116-ZV5-000 |
COVER, OIL PUMP Price: $37.02 |
| 3 |
15122-ME5-000 |
ROTOR (INNER) Price: $16.29 |
| 4 |
15132-ZV5-000 |
SHAFT, OIL PUMP Price: $22.18 |
| 5 |
15162-393-000 |
ROTOR A (OUTER) Price: $24.71 |
| 6 |
15231-413-020 |
VALVE, RELIEF (Honda Code 0690453). Price: $28.12 |
| 7 |
15232-KT8-000 |
SPRING, RELIEF VALVE Price: $5.18 |
| 8 |
15236-ZV5-010 |
SEE PART DETAILS - PRI; BOLT, SEALING (14MM) Price: $6.76 |
| 9 |
15302-PE0-300 |
WASHER, SEALING (14MM) (Honda Code 1600014). Price: $8.46 |
| 10 |
90047-ZZ5-M01 |
BOLT, FLANGE (6X55) Price: $2.68 |
| 11 |
90084-ZZ5-M00 |
SCREW, PAN (6X16) Price: $1.40 |
| 12 |
90456-MC7-000 |
WASHER, THRUST (12MM) Price: $3.42 |
| 13 |
91301-ZV5-010 |
SEE PART DETAILS - PRI; O-RING, PUMP COVER Price: $6.72 |
| 14 |
91302-KF0-003 |
O-RING (54X2.4) (ARAI) Price: $4.78 |
