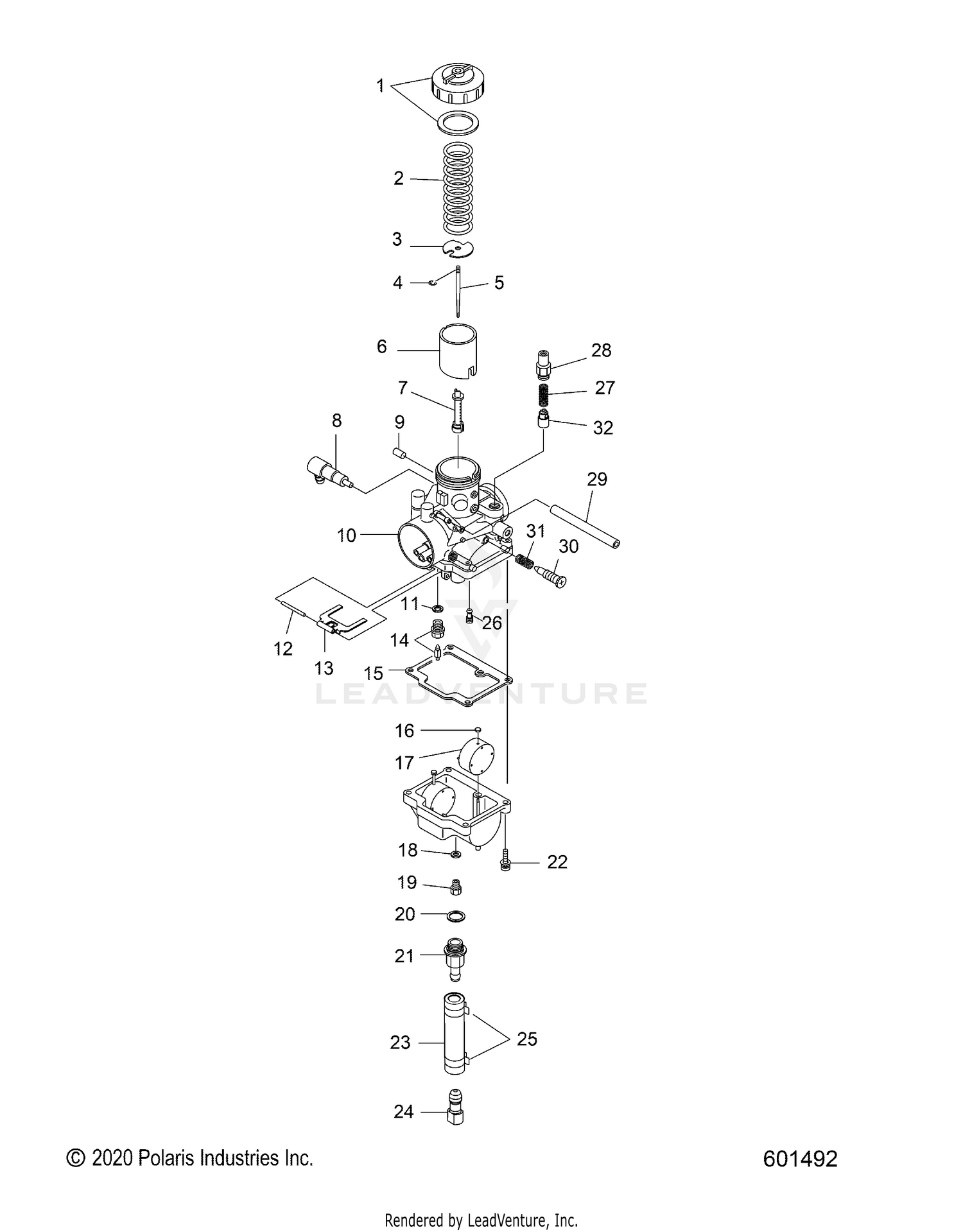

| Ref | Part Number | Description |
|---|
| 1 |
3130184 |
ASM., TOP, MIXING CHAMBER Price: $44.99 |
| 2 |
3130439 |
SPRING, THROTTLE Price: $17.99 |
| 3 |
3130027 |
PLATE, THROTTLE Price: $12.99 |
| 4 |
3130508 |
E-RING Price: $7.99 |
| 5 |
3131703 |
NEEDLE, JET, JB-6BGY48 Price: $54.99 |
| 6 |
3131763 |
VALVE, THROTTLE, 3.0 Price: $139.99 |
| 7 |
3130964 |
JET, NEEDLE, Q-O, 480 Price: $59.99 |
| 8 |
3086785 |
ASM., VALVE, CHECK Price: $69.99 |
| 9 |
3130479 |
CAP Price: $17.99 |
| 11 |
3130017 |
PACKING, NEEDLE VALVE Price: $4.99 |
| 12 |
3130361 |
PIN, FLOAT Price: $11.99 |
| 13 |
3130018 |
ARM, FLOAT Price: $34.99 |
| 14 |
3131146 |
NEEDLE VALVE, 1.5 Price: $64.99 |
| 15 |
3130020 |
GASKET, FLOAT CHAMBER Price: $19.99 |
| 16 |
3130237 |
CAP Price: $4.99 |
| 17 |
3130430 |
ASM., FLOAT Price: $49.99 |
| 18 |
3130014 |
WASHER Price: $1.99 |
| 19 |
3130125 |
JET,MAIN,HX.HD#220(10) This part replaces 3130428. Price: $7.99 |
| 20 |
3130239 |
O-RING Price: $12.99 |
| 21 |
3130573 |
NIPPLE Price: $44.99 |
| 22 |
3130025 |
ASM., SCREW AND WASHER Price: $3.99 |
| 23 |
5413396 |
HOSE, WATERTRAP Price: $17.99 |
| 24 |
5431893 |
PLUG, TRAP Price: $16.99 |
| 25 |
7080534 |
CLAMP, HOSE Price: $1.99 |
| 26 |
3130068 |
PILOT JET, #45 Price: $11.99 |
| 27 |
3131764 |
SPRING, PLUNGER Price: $11.99 |
| 28 |
3130199 |
HOLDER, GUIDE Price: $34.99 |
| 29 |
3090196 |
HOSE Price: $34.99 |
| 30 |
3130009 |
SCREW,THROTTLE STOP This part replaces 3130437. Price: $24.99 |
| 31 |
3130010 |
SPRING, THROTTLE ADJUSTER Price: $11.99 |
