Home / POWERSPORTS / SNOWMOBILE / 2018 / 2018 ZR 200 WHITE INTERNATIONAL [S2018ZRAABOSW] / SLIDE RAIL, IDLER WHEELS, AND TRACK ASSEMBLY [106074]

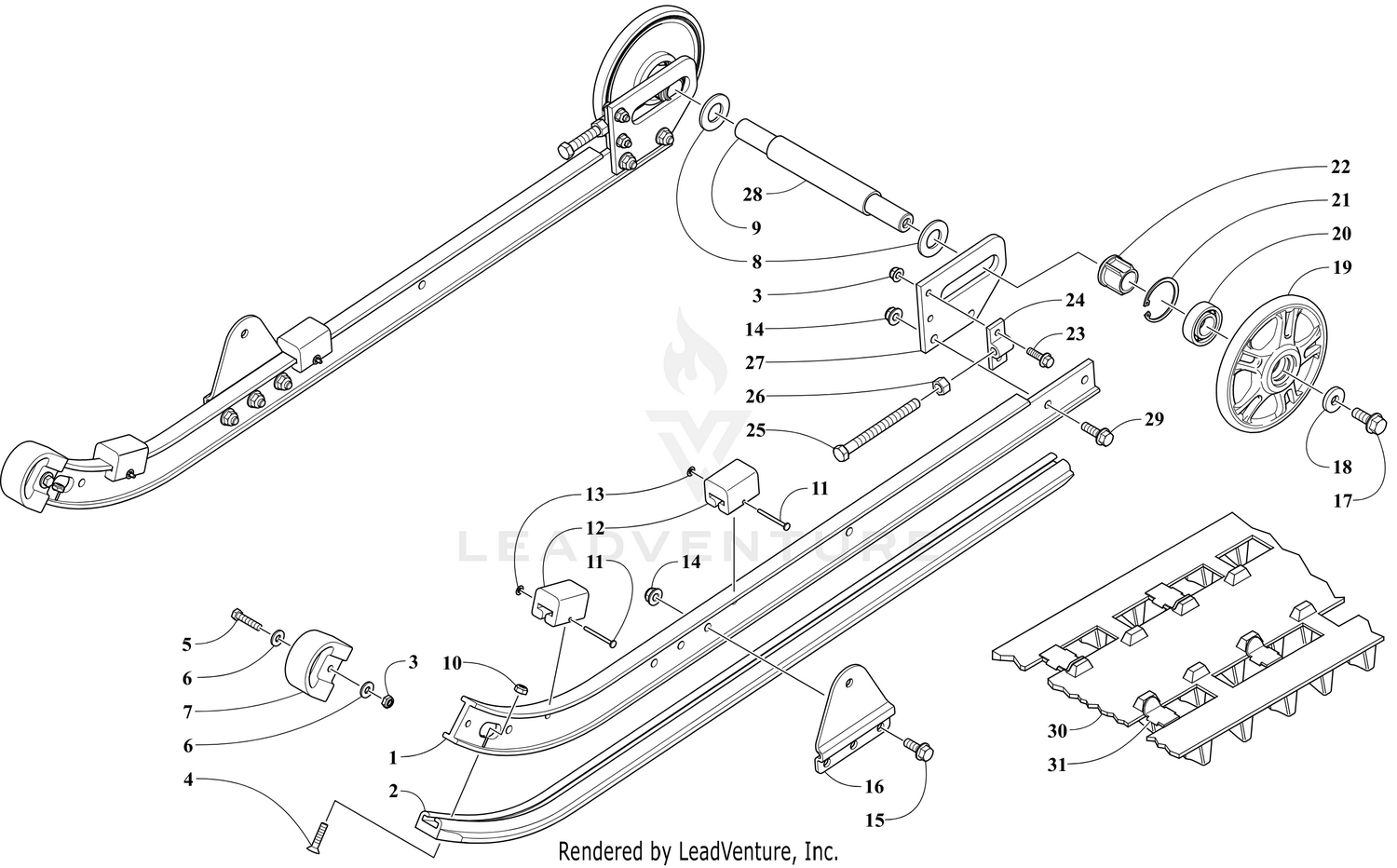

SLIDE RAIL, IDLER WHEELS, AND TRACK ASSEMBLY [106074]

SLIDE RAIL, IDLER WHEELS, AND TRACK ASSEMBLY [106074]

Parts (28)

RefPart NumberDescription
1 4604-254 Rail, Formed Price: $89.95
2 4604-386 Wearstrip - Black Price: $27.95
3 8047-366 Nut, Lock Price: $0.46
4 0123-859 Screw, Machine Price: $1.18
5 8002-043 Screw, Cap Price: $0.70
6 8050-217 Washer, Flat Price: $0.24
7 0604-231 Nose Piece, Slide Rail - Black Price: $16.61
8 0623-921 Washer Price: $1.77
9 3604-542 Axle, Rear Price: $41.95
10 8041-366 Nut, Lock Price: $0.35
11 0123-767 Rivet, Solid Price: $1.07
12 0104-631 Pad, Shock Price: $7.08
13 0423-090 NUT,PRESS ON (PUSHNUT)-1/8 STUD Price: $0.46
14 8047-426 Nut, Hex Price: $0.70
15 8020-131 Screw, Cap Price: $1.77
16 0704-896 Bracket, Support - Front Arm - Painted Black Price: $22.56
17 1623-427 Screw, Cap Price: $2.13
18 0623-664 Washer Price: $1.30
20 3604-033 Bearing Price: $13.95
21 0623-946 Ring, Retaining Price: $2.26
22 3604-503 Bushing, Adjuster Price: $4.75
23 8020-041 Screw, Cap Price: $8.27
24 0604-206 Adjuster, Track Price: $14.23
25 0124-310 Screw, Cap Price: $2.61
26 8042-486 Nut Price: $1.77
27 3604-543 Housing, Axle - Rear Price: $37.95
28 4604-395 Spacer Price: $2.69
29 8020-132 Screw, Cap Price: $1.41
