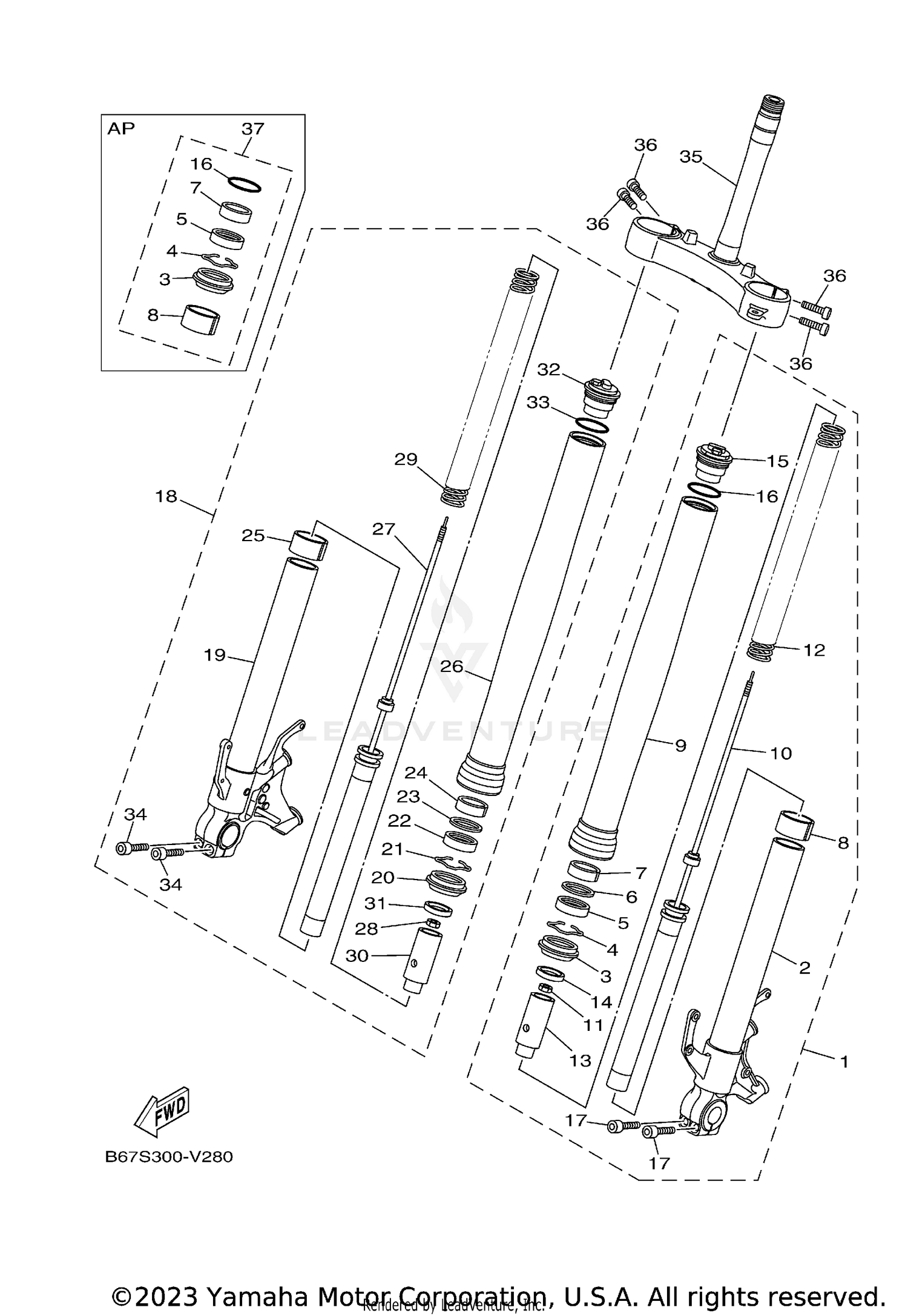

| Ref | Part Number | Description |
|---|
| 1 |
B67-23102-11-00 |
FRONT FORK ASSY (L This part replaces B67-23102-10-00. Price: $1,148.99 |
| 2 |
2CR-23110-00-00 |
INNER TUBE COMP. 1 Price: $415.99 |
| 3 |
4PU-23144-00-00 |
SEAL, DUST Price: $26.99 |
| 5 |
4PU-23145-01-00 |
OIL SEAL Price: $28.99 |
| 6 |
5PW-23146-00-00 |
WASHER, OIL SEAL Price: $19.99 |
| 7 |
2CR-23125-00-00 |
METAL, SLIDE 1 Price: $12.99 |
| 8 |
2CR-23171-00-00 |
PISTON, FRONT FORK Price: $30.99 |
| 9 |
2CR-23136-10-00 |
TUBE, OUTER 2 Price: $373.99 |
| 10 |
B67-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $342.99 |
| 11 |
3LC-23357-00-00 |
NUT Price: $7.49 |
| 12 |
B67-23141-00-00 |
SPRING, FRONT FORK Price: $51.99 |
| 13 |
2CR-23118-00-00 |
SPACER Price: $12.49 |
| 14 |
2CR-23117-00-00 |
GUIDE, SPRING Price: $12.49 |
| 15 |
2CR-23111-10-00 |
BOLT, CAP Price: $322.99 |
| 16 |
39P-23147-00-00 |
O-RING Price: $9.49 |
| 17 |
91314-08040-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 18 |
B67-23103-12-00 |
FRONT FORK ASSY (R.H) This part replaces B67-23103-10-00. Price: $1,148.99 |
| 19 |
2CR-23120-00-00 |
INNER TUBE COMP. 2 Price: $415.99 |
| 20 |
4PU-23144-00-00 |
SEAL, DUST Price: $26.99 |
| 22 |
4PU-23145-01-00 |
OIL SEAL Price: $28.99 |
| 23 |
5PW-23146-00-00 |
WASHER, OIL SEAL Price: $19.99 |
| 24 |
2CR-23125-00-00 |
METAL, SLIDE 1 Price: $12.99 |
| 25 |
2CR-23171-00-00 |
PISTON, FRONT FORK Price: $30.99 |
| 26 |
2CR-23136-10-00 |
TUBE, OUTER 2 Price: $373.99 |
| 27 |
B67-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $342.99 |
| 28 |
3LC-23357-00-00 |
NUT Price: $7.49 |
| 29 |
B67-23141-00-00 |
SPRING, FRONT FORK Price: $51.99 |
| 30 |
2CR-23118-00-00 |
SPACER Price: $12.49 |
| 31 |
2CR-23117-00-00 |
GUIDE, SPRING Price: $12.49 |
| 32 |
2CR-23111-10-00 |
BOLT, CAP Price: $322.99 |
| 33 |
39P-23147-00-00 |
O-RING Price: $9.49 |
| 34 |
91314-08040-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 35 |
B67-23340-00-00 |
UNDER BRACKET COMP. Price: $515.99 |
| 36 |
91314-08030-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.55 |
