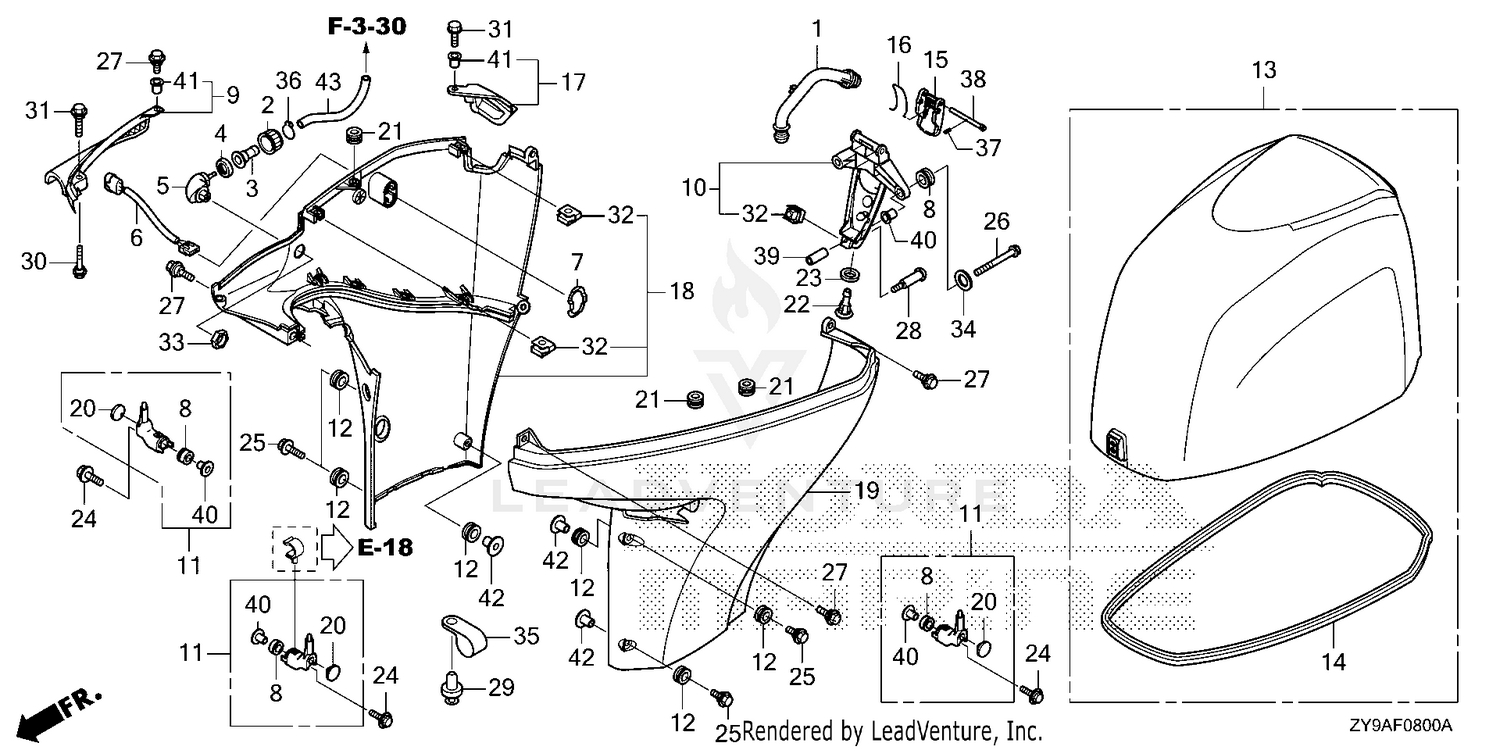

| Ref | Part Number | Description |
|---|
| 1 |
18211-ZY9-000 |
PORT, IDLE EX. Price: $43.66 |
| 2 |
19270-ZY3-000 |
NUT, WATER MOUTH Price: $17.84 |
| 3 |
19271-ZY3-000 |
JOINT, WATER HOSE Price: $12.12 |
| 4 |
19272-ZY3-000 |
SEAT, WATER MOUTH Price: $5.54 |
| 5 |
19289-ZY6-000 |
CAP, WATER JOINT Price: $38.26 |
| 6 |
35640-ZY9-003 |
SWITCH ASSY., POWER TILT Price: $79.12 |
| 7 |
35645-ZY9-000 |
STAY, POWER TILT SWITCH Price: $10.62 |
| 8 |
40102-ZV5-000 |
GROMMET, CASE (LOWER) Price: $3.62 |
| 9 |
40151-ZY9-000ZB |
COVER, FR. SEPARATE *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $168.80 |
| 10 |
40155-ZY9-010 |
BRACKET, COVER (LOWER) Price: $47.70 |
| 11 |
40165-ZY9-010 |
STOPPER ASSY., ENGINE SIDE Price: $17.00 |
| 12 |
61102-MB6-631 |
RUBBER, FENDER MOUNTING Price: $2.82 |
| 13 |
63100-ZY9-030ZB |
SEE PART DETAILS - PRI; COVER ASSY., ENGINE *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $1,415.84 |
| 14 |
63102-ZY9-010 |
SEE PART DETAILS - PRI; SEAL, ENGINE COVER Price: $61.58 |
| 15 |
63232-ZY9-010 |
LEVER, FASTENER Price: $16.62 |
| 16 |
63237-ZY9-000 |
WIRE, FASTENER Price: $10.92 |
| 17 |
63347-ZY9-010ZB |
COVER, PLUG MAINTENANCE *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $26.76 |
| 18 |
63711-ZY9-010ZB |
COVER, R. ENGINE (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $194.70 |
| 19 |
63716-ZY9-010ZB |
COVER, L. ENGINE (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $194.70 |
| 20 |
77212-965-000 |
RUBBER, SEAT SIDE Price: $6.82 |
| 21 |
80103-GJ5-000 |
GROMMET, ENGINE COVER Price: $2.72 |
| 22 |
82873-ZY9-000 |
GROMMET, WATER CHECK Price: $6.00 |
| 23 |
82874-ZY9-000 |
SEAL, WATER CHECK GROMMET Price: $5.12 |
| 24 |
90003-ZZ5-M01 |
BOLT-WASHER (6X27) Price: $3.50 |
| 25 |
90103-ZY9-000 |
BOLT-WASHER (6X22) Price: $3.74 |
| 26 |
90106-ZZ0-M01 |
BOLT, FLANGE (6X55) Price: $2.72 |
| 27 |
90111-ZY3-000 |
BOLT, SPECIAL (6X17) Price: $2.90 |
| 28 |
90113-ZY9-003 |
BOLT, RR. BRACKET Price: $13.04 |
| 29 |
90127-ZV5-003 |
SCREW, RIVET (5X10) Price: $2.66 |
| 30 |
90132-ZY3-000 |
BOLT, SPECIAL (6X37) Price: $4.38 |
| 31 |
90068-ZZ5-M01 |
BOLT (6X20) Price: $1.80 |
| 32 |
90301-ZY6-000 |
NUT, CLIP Price: $5.08 |
| 33 |
90302-921-000 |
NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE) Price: $5.62 |
| 34 |
90508-ZZ5-M01 |
WASHER, PLAIN (6MM) This part replaces 90508-ZY3-000. Price: $2.48 |
| 35 |
90602-SB0-003 |
CLIP (10.7MM) Price: $5.54 |
| 36 |
90651-ZY6-000 |
CLIP B1, TUBE Price: $5.08 |
| 37 |
90751-ZY9-000 |
PIN, SPRING (2.0X12) Price: $3.12 |
| 38 |
90755-ZY9-000 |
PIN (5X59) Price: $16.38 |
| 39 |
91552-ZY9-000 |
COLLAR, DISTANCE (6.5X11X27) Price: $2.44 |
| 40 |
91553-ZV5-010 |
SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI) Price: $3.66 |
| 41 |
91553-ZY6-000 |
COLLAR, DISTANCE (6.5X9X11.5) Price: $5.58 |
| 42 |
91554-ZY9-000 |
COLLAR, DISTANCE (6.2X7.5) Price: $3.90 |
