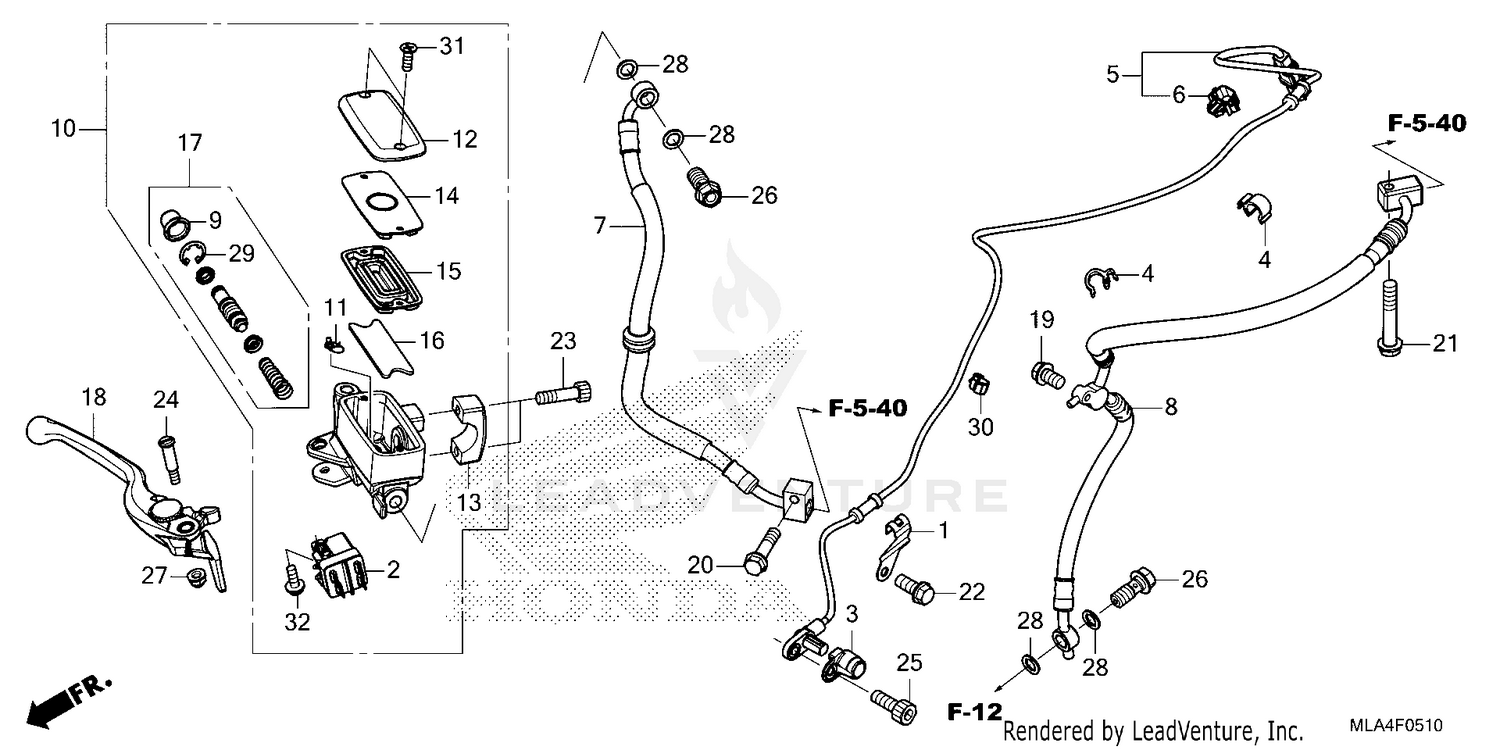

| Ref | Part Number | Description |
|---|
| 1 |
32912-MLA-A00 |
STAY, FR. SPEED SENSOR WIRE Price: $4.27 |
| 2 |
35340-MKS-E01 |
SWITCH ASSY., FR. STOP & CRUISE Price: $66.45 |
| 3 |
38511-MLA-A00 |
GUARD, ABS SENSOR Price: $12.02 |
| 4 |
38517-MGE-003 |
CLAMP, ABS WIRE (D12) Price: $3.11 |
| 5 |
38520-MLA-A01 |
SENSOR, FR. WHEEL SPEED Price: $207.18 |
| 6 |
42524-T5A-003 |
CLIP, CONNECTOR (DARK BLUE) Price: $3.05 |
| 7 |
45125-MLA-A01 |
HOSE A, FR. BRAKE Price: $58.31 |
| 8 |
45128-MLA-A01 |
HOSE D, FR. BRAKE Price: $139.98 |
| 9 |
45504-410-003 |
BOOT Price: $14.75 |
| 10 |
45510-MLA-A01 |
MASTER CYLINDER SUB-ASSY., FR. (NISSIN) Price: $280.20 |
| 11 |
45512-MA6-006 |
PROTECTOR Price: $5.38 |
| 12 |
45513-MM5-016 |
CAP, MASTER CYLINDER (NISSIN) Price: $27.15 |
| 13 |
45517-MAV-751 |
HOLDER, MASTER CYLINDER (NISSIN) Price: $25.09 |
| 14 |
45518-MM5-006 |
PLATE, DIAPHRAGM (NISSIN) Price: $12.91 |
| 15 |
45520-MM5-006 |
DIAPHRAGM (NISSIN) Price: $18.31 |
| 16 |
45523-MN5-006 |
FLOAT, FR. MASTER CYLINDER (NISSIN) Price: $5.64 |
| 17 |
45530-471-831 |
MASTER CYLINDER SET Price: $48.07 |
| 18 |
53170-MLA-A01 |
LEVER ASSY., R. HANDLE Price: $60.60 |
| 19 |
90013-GHB-640 |
BOLT, FLANGE (6X18) Price: $2.47 |
| 20 |
90013-GHB-670 |
BOLT, FLANGE (6X25) Price: $2.65 |
| 21 |
90021-GHB-710 |
BOLT, FLANGE (6X32) Price: $2.84 |
| 22 |
90101-MKH-D00 |
BOLT, FLANGE (6X12) Price: $2.67 |
| 23 |
90111-GHB-660 |
BOLT, SOCKET (6X22) Price: $1.13 |
| 24 |
90114-MA5-671 |
BOLT, R. HANDLEBAR PIVOT Price: $11.42 |
| 25 |
90117-MKR-D10 |
BOLT, FLANGE SOCKET (6X16) Price: $3.02 |
| 26 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 27 |
90201-415-000 |
NUT, CAP (6MM) Price: $2.45 |
| 28 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 29 |
90651-MA5-671 |
CIRCLIP Price: $3.35 |
| 30 |
90690-MJE-D11 |
CLIP, CABLE (10MM) Price: $2.53 |
| 31 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
| 32 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
