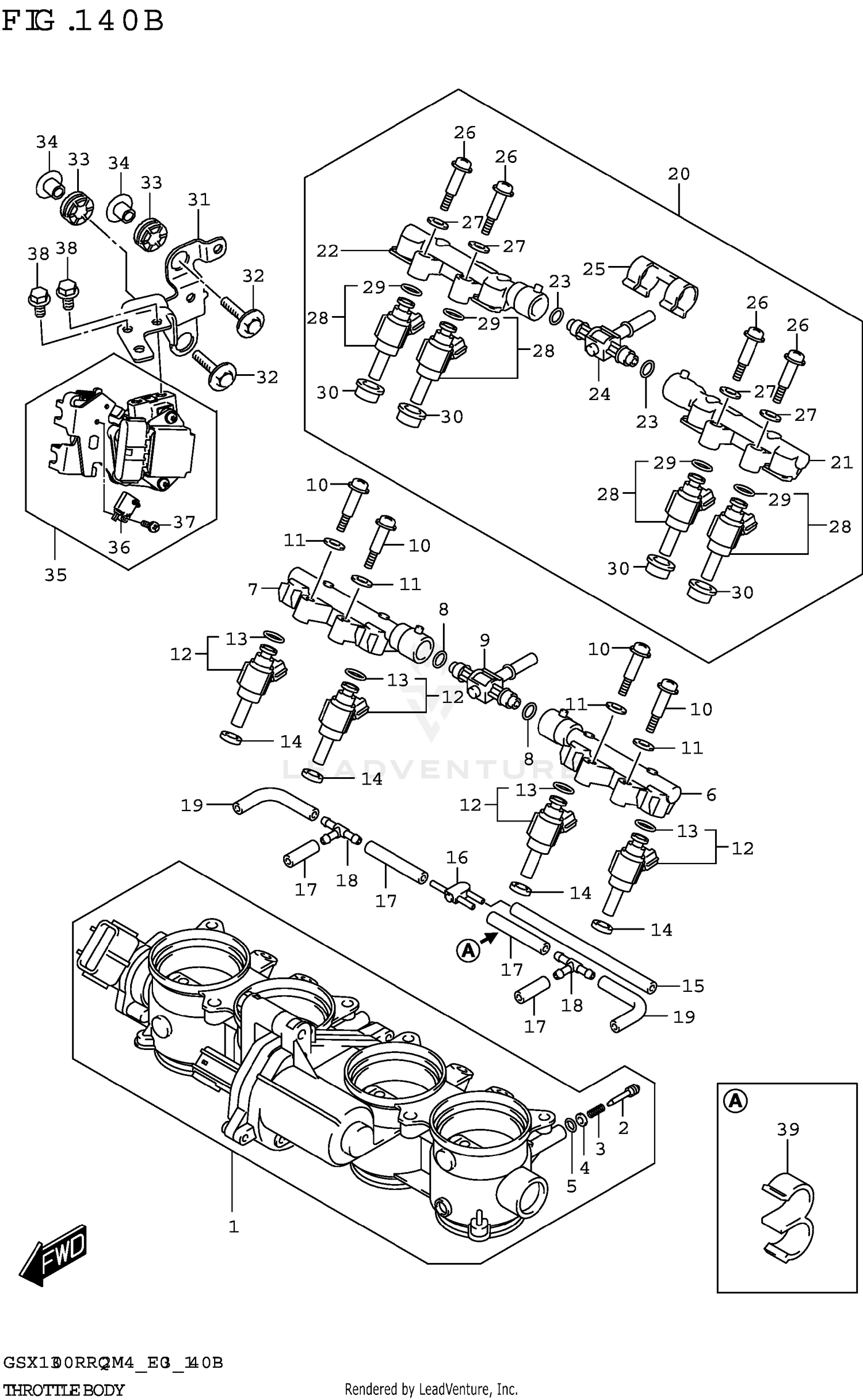

THROTTLE BODY (E03,E28)
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13405-10L10 | BODY ASSY, THROTTLE Price: $1,015.32 |
| 2 | 13269-33E00 | SCREW Price: $14.10 |
| 3 | 13268-48700 | SPRING,THROTTLE SCREW Price: $5.36 |
| 4 | 13606-47A00 | WASHER Price: $3.55 |
| 5 | 13295-29901 | O-RING Price: $5.36 |
| 6 | 13471-10L00 | DELIVERY PIPE Price: $30.76 |
| 7 | 13472-10L00 | DELIVERY PIPE Price: $30.76 |
| 8 | 13374-32G00 | O-RING Price: $7.81 |
| 9 | 13473-10L00 | NIPPLE ASSY Price: $38.11 |
| 10 | 13601-29G00 | SCREW Price: $4.35 |
| 11 | 13602-29G01 | PACKING Price: $2.94 |
| 12 | 15710-14J00 | INJECTOR ASSY Price: $357.05 |
| 13 | 15717-58B00 | O-RING Price: $12.30 |
| 14 | 15722-14J00 | SEAL Price: $14.43 |
| 15 | 13683-01H01 | HOSE Price: $11.20 |
| 16 | 13471-18H00 | JOINT Price: $11.34 |
| 17 | 13683-10F61 | HOSE (L:425) Price: $18.47 |
| 19 | 13681-39F00-070 | HOSE (3.2X7.4X70) Price: $3.23 |
| 20 | 15900-10L00 | BODY ASSY,2ND INJECTOR Price: $341.28 |
| 21 | 13471-10L00 | DELIVERY PIPE Price: $30.76 |
| 22 | 13472-10L00 | DELIVERY PIPE Price: $30.76 |
| 23 | 13374-32G00 | O-RING Price: $7.81 |
| 24 | 13473-10L00 | NIPPLE ASSY Price: $38.11 |
| 26 | 13601-29G00 | SCREW Price: $4.35 |
| 27 | 13602-29G01 | PACKING Price: $2.94 |
| 29 | 15717-58B00 | O-RING Price: $12.30 |
| 30 | 15722-14J00 | SEAL Price: $14.43 |
| 31 | 13571-10L00 | BRACKET,ACCEL SENSOR Price: $12.77 |
| 32 | 09116-06185 | BOLT (6X30) Price: $3.25 |
| 33 | 09320-10055 | CUSHION Price: $5.56 |
| 34 | 09180-06319 | SPACER (6.5X10X11.6) Price: $4.76 |
| 35 | 13500-10L00 | BODY ASSY,ACCELERATOR Price: $446.12 |
| 38 | 01550-0612A | BOLT Price: $2.37 |
