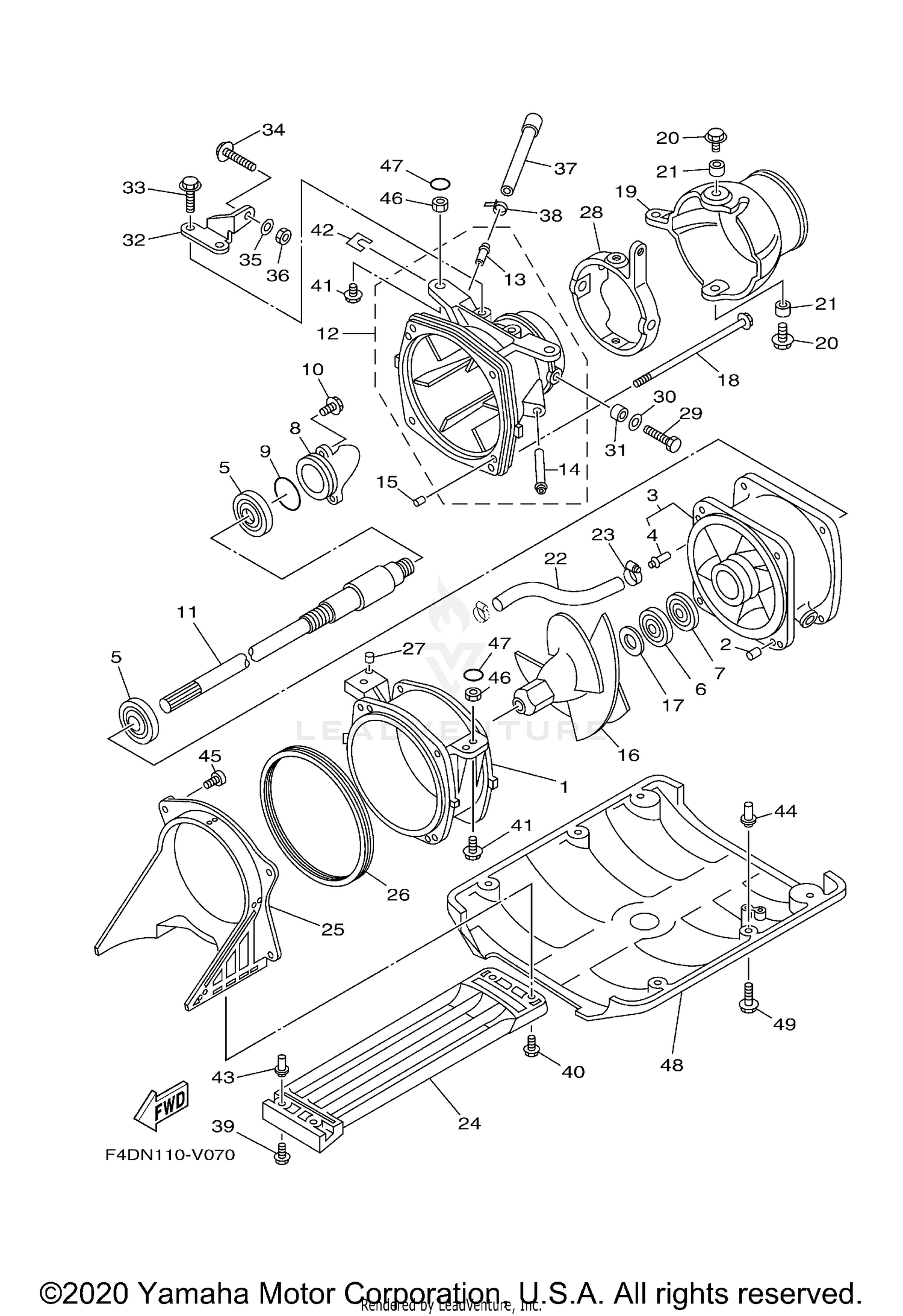

| Ref | Part Number | Description |
|---|
| 1 |
6R7-51312-03-00 |
HOUSING, IMPELLER Price: $317.99 |
| 2 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 3 |
62T-51315-01-00 |
DUCT, IMPELLER This part replaces 62T-51315-01-94. Price: $298.99 |
| 4 |
6K8-51129-00-00 |
NIPPLE Price: $12.99 |
| 5 |
93306-205U1-00 |
BEARING This part replaces 93306-205U0-00. Price: $24.99 |
| 6 |
93102-25M34-00 |
OIL SEAL Price: $18.49 |
| 7 |
93101-25M50-00 |
OIL SEAL Price: $28.99 |
| 8 |
62T-51326-10-00 |
CAP Price: $48.49 |
| 9 |
93210-44003-00 |
O-RING Price: $2.99 |
| 10 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 11 |
6BA-45511-00-00 |
SHAFT, DRIVE Price: $403.99 |
| 12 |
64R-51318-01-00 |
NOZZLE Price: $217.99 |
| 13 |
6K8-51129-00-00 |
NIPPLE Price: $12.99 |
| 14 |
62T-51129-00-00 |
NIPPLE Price: $18.49 |
| 15 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 16 |
6BA-51321-00-00 |
IMPELLER Price: $765.99 |
| 17 |
62T-51348-00-00 |
SPACER Price: $53.99 |
| 18 |
90119-06M70-00 |
BOLT, WITH WASHER Price: $9.99 |
| 19 |
6BA-51313-00-00 |
NOZZLE, DEFLECTOR Price: $107.99 |
| 20 |
97E95-08520-00 |
BOLT, HEXAGON W/W Price: $1.50 |
| 21 |
90387-08M06-00 |
COLLAR Price: $12.49 |
| 22 |
90445-14M11-00 |
HOSE This part replaces 90445-14M12-00. Price: $17.99 |
| 23 |
90450-14M05-00 |
HOSE CLAMP ASSY Price: $19.49 |
| 24 |
6R7-51333-00-00 |
SCREEN, INTAKE Price: $95.99 |
| 25 |
6R7-51311-00-00 |
DUCT, INTAKE Price: $124.49 |
| 26 |
6R7-51117-01-00 |
PACKING Price: $39.99 |
| 27 |
93606-07M17-00 |
PIN, DOWEL Price: $10.49 |
| 28 |
62T-51190-01-00 |
RING,TRIM Price: $63.99 |
| 29 |
97095-08018-00 |
BOLT Price: $3.49 |
| 30 |
92990-08600-00 |
WASHER, PLATE This part replaces 92995-08600-00. Price: $2.70 |
| 31 |
90387-08M08-00 |
COLLAR Price: $14.99 |
| 32 |
6BA-51387-00-00 |
STAY Price: $25.49 |
| 33 |
97E95-06514-00 |
BOLT, HEXAGON W/W Price: $1.25 |
| 34 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 35 |
90201-06M31-00 |
WASHER, PLATE Price: $3.45 |
| 36 |
95380-06700-00 |
NUT Price: $9.49 |
| 37 |
6BA-51673-00-00 |
PIPE 1 Price: $12.99 |
| 38 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 39 |
90119-06896-00 |
BOLT, WITH WASHER This part replaces 90119-06915-00. Price: $8.99 |
| 40 |
90119-06908-00 |
BOLT, WITH WASHER Price: $2.99 |
| 41 |
90119-10948-00 |
BOLT, WITH WASHER Price: $7.99 |
| 43 |
90179-06947-00 |
NUT Price: $4.70 |
| 44 |
90179-08962-00 |
NUT Price: $19.99 |
| 45 |
97780-60520-00 |
SCREW, TAPPING This part replaces 97780-60120-00. Price: $4.49 |
| 46 |
90179-10925-00 |
NUT Price: $5.49 |
| 47 |
EW2-62723-30-00 |
SEAL Price: $7.99 |
| 48 |
F2F-6273B-01-00 |
PLATE 2 Price: $207.99 |
