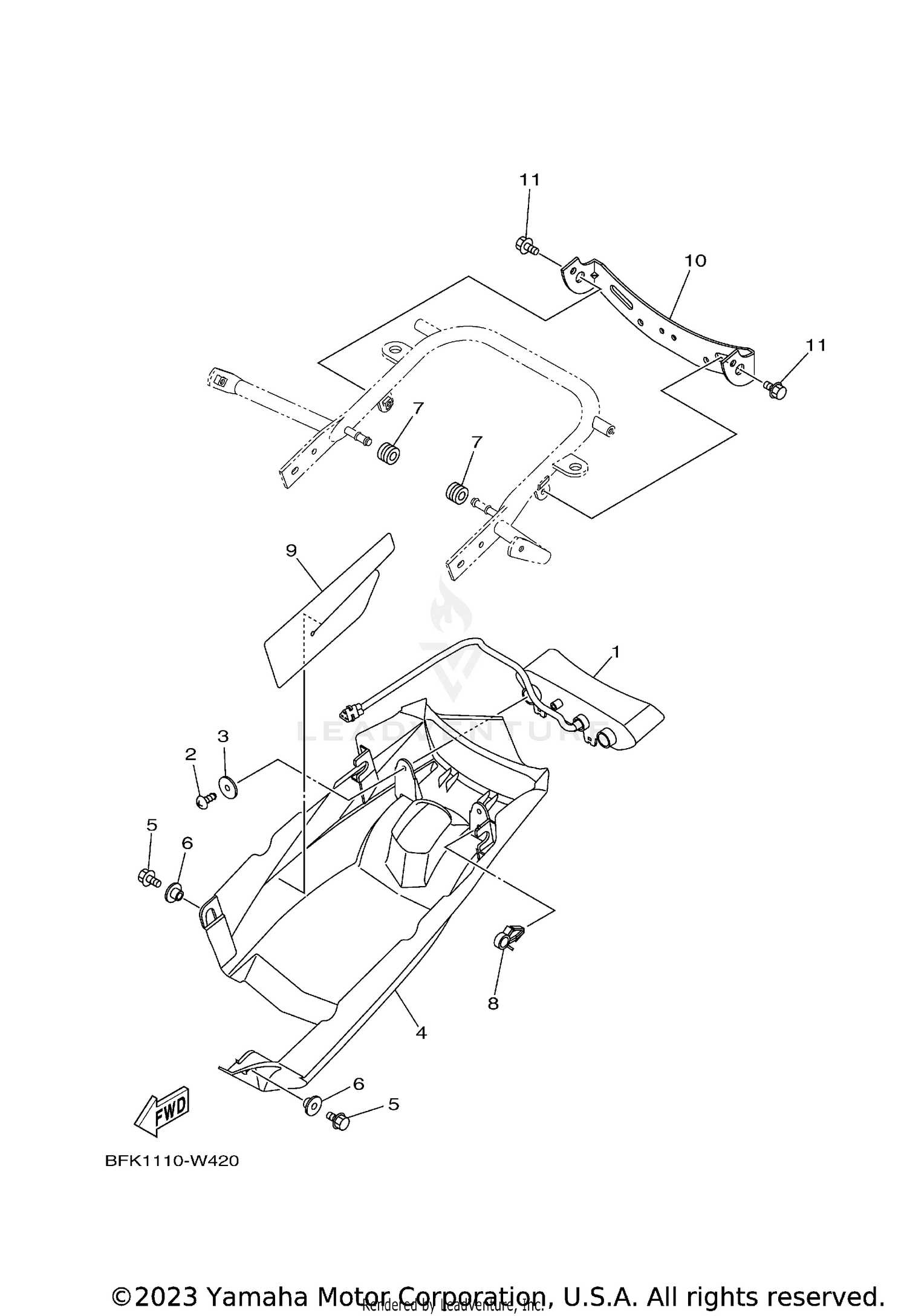

TAILLIGHT
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BAS-84710-01-00 | TAILLIGHT UNIT ASSY Price: $141.99 |
| 2 | 97702-50016-00 | SCREW, TAPPING Price: $2.60 |
| 3 | 90201-05025-00 | WASHER, PLATE Price: $6.49 |
| 4 | 1PE-H4716-10-00 | COVER,TAILLIGHT Price: $43.99 |
| 5 | 95D02-06010-00 | BOLT, FLANGE DEEP RECESS Price: $0.45 |
| 6 | 90387-06153-00 | COLLAR Price: $8.49 |
| 7 | 90480-14023-00 | GROMMET This part replaces 90480-14101-00. Price: $8.49 |
| 8 | 90464-15157-00 | CLAMP Price: $9.49 |
| 9 | 1S3-84736-00-00 | DAMPER, TAIL 1 Price: $7.49 |
| 10 | 1PE-H4703-01-00 | BRACKET Price: $12.99 |
