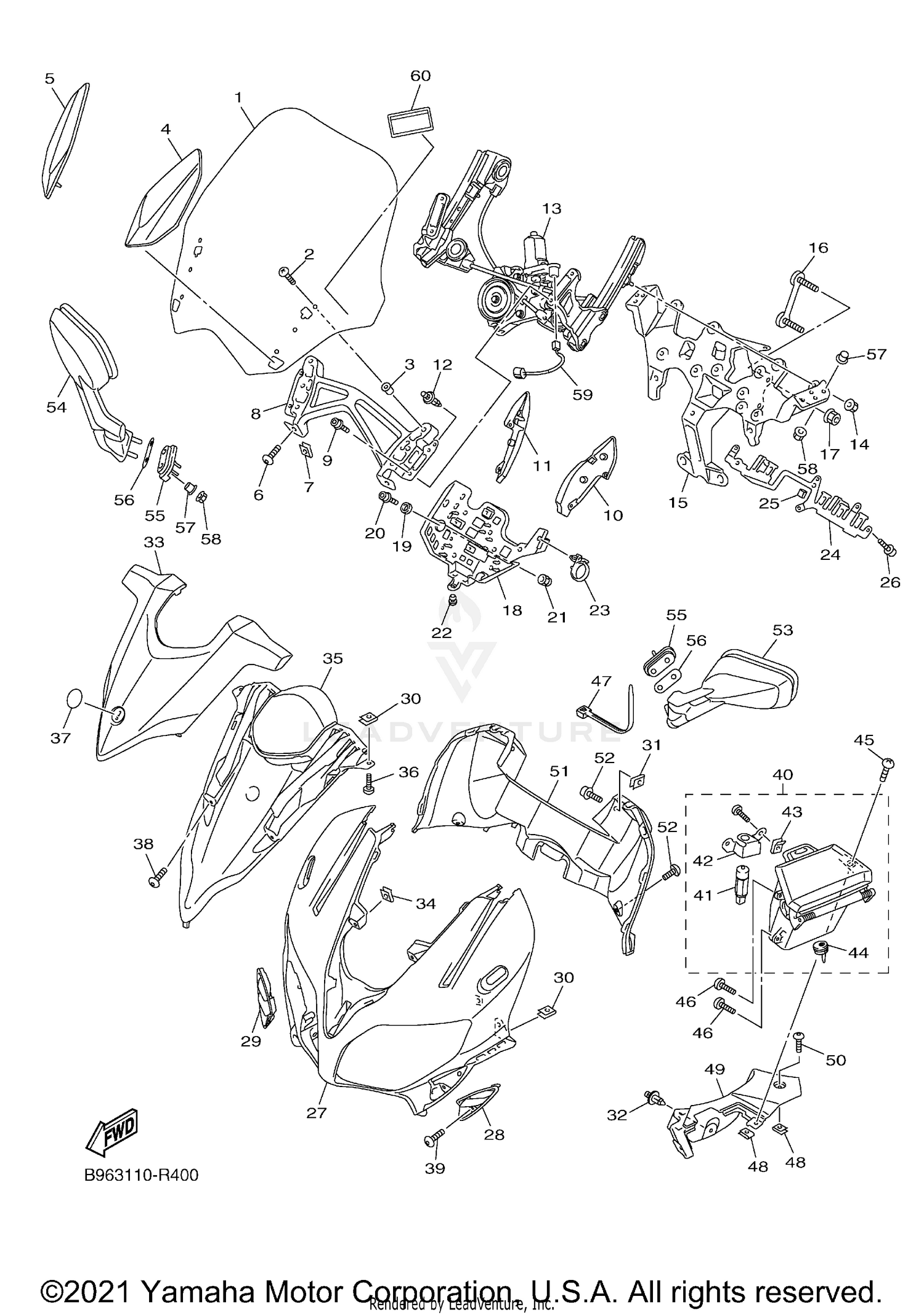

| Ref | Part Number | Description |
|---|
| 1 |
2BC-28381-00-00 |
WINDSHIELD Price: $545.99 |
| 2 |
90150-05024-00 |
SCREW, ROUND HEAD Price: $3.35 |
| 3 |
90179-05523-00 |
NUT Price: $7.49 |
| 6 |
92012-05012-00 |
BOLT, BUTTON HEAD Price: $4.75 |
| 7 |
90183-050A7-00 |
NUT, SPRING Price: $3.80 |
| 8 |
1MC-28322-00-00 |
STAY 2 Price: $80.99 |
| 9 |
90109-060E9-00 |
BOLT Price: $11.49 |
| 10 |
1MC-2843J-01-00 |
COVER 3 Price: $8.49 |
| 11 |
1MC-2844J-01-00 |
COVER 4 Price: $7.49 |
| 12 |
90269-05005-00 |
RIVET Price: $3.55 |
| 13 |
1MC-83306-01-00 |
DRIVE UNIT ASSY This part replaces 1MC-83306-00-00. Price: $567.99 |
| 14 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 15 |
1MC-28356-01-00 |
STAY 1 Price: $413.99 |
| 16 |
5JW-28336-00-00 |
PLATE Price: $25.99 |
| 17 |
95707-10500-00 |
NUT, FLANGE Price: $2.15 |
| 18 |
1MC-2838K-01-00 |
BOX 1 Price: $17.99 |
| 19 |
90387-06106-00 |
COLLAR Price: $8.49 |
| 20 |
90110-06245-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 21 |
95380-06800-00 |
NUT, CROWN This part replaces 95304-06800-00. Price: $9.49 |
| 22 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 23 |
90464-36006-00 |
CLAMP Price: $3.80 |
| 24 |
1MC-28366-00-00 |
BRACKET Price: $45.99 |
| 25 |
1MC-2834E-00-00 |
DAMPER 3 Price: $4.90 |
| 26 |
91312-06014-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 28 |
1MC-2837N-00-00 |
GRILL, AIR INTAKE 1 Price: $15.49 |
| 29 |
1MC-2837R-00-00 |
GRILL, AIR INTAKE 2 Price: $15.49 |
| 30 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 31 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 32 |
90269-06008-00 |
RIVET Price: $9.49 |
| 34 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 35 |
1MC-2838N-00-00 |
DUCT 1 Price: $230.99 |
| 36 |
97702-50016-00 |
SCREW, TAPPING Price: $2.60 |
| 37 |
8GC-2836B-02-00 |
TUNING FORK MARK Price: $43.99 |
| 38 |
90167-05080-00 |
SCREW, TAPPING Price: $2.70 |
| 39 |
90167-05080-00 |
SCREW, TAPPING Price: $2.70 |
| 41 |
5VS-28470-00-00 |
LOCK ASSY Price: $205.99 |
| 42 |
5VS-28367-00-00 |
BRACKET Price: $12.99 |
| 43 |
90183-051A0-00 |
NUT, SPRING Price: $4.10 |
| 44 |
3P6-28187-00-00 |
GROMMET Price: $8.49 |
| 45 |
90154-05007-00 |
SCREW, BINDING Price: $3.55 |
| 46 |
97702-50016-00 |
SCREW, TAPPING Price: $2.60 |
| 47 |
90465-10098-00 |
CLAMP Price: $2.70 |
| 48 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 49 |
1MC-28365-00-00 |
COVER Price: $254.99 |
| 50 |
90111-05021-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 51 |
1MC-2837L-00-00 |
PANEL, CONSOLE 1 Price: $224.99 |
| 52 |
90111-05021-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 55 |
5JW-26298-00-00 |
PLATE, MIRROR FITTING 1 Price: $14.49 |
| 56 |
3P6-26299-00-00 |
PLATE, MIRROR FITTING 2 Price: $8.49 |
| 57 |
90387-0602X-00 |
COLLAR Price: $10.49 |
| 58 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 59 |
1MC-82507-00-00 |
WIRE, LEAD Price: $19.49 |
