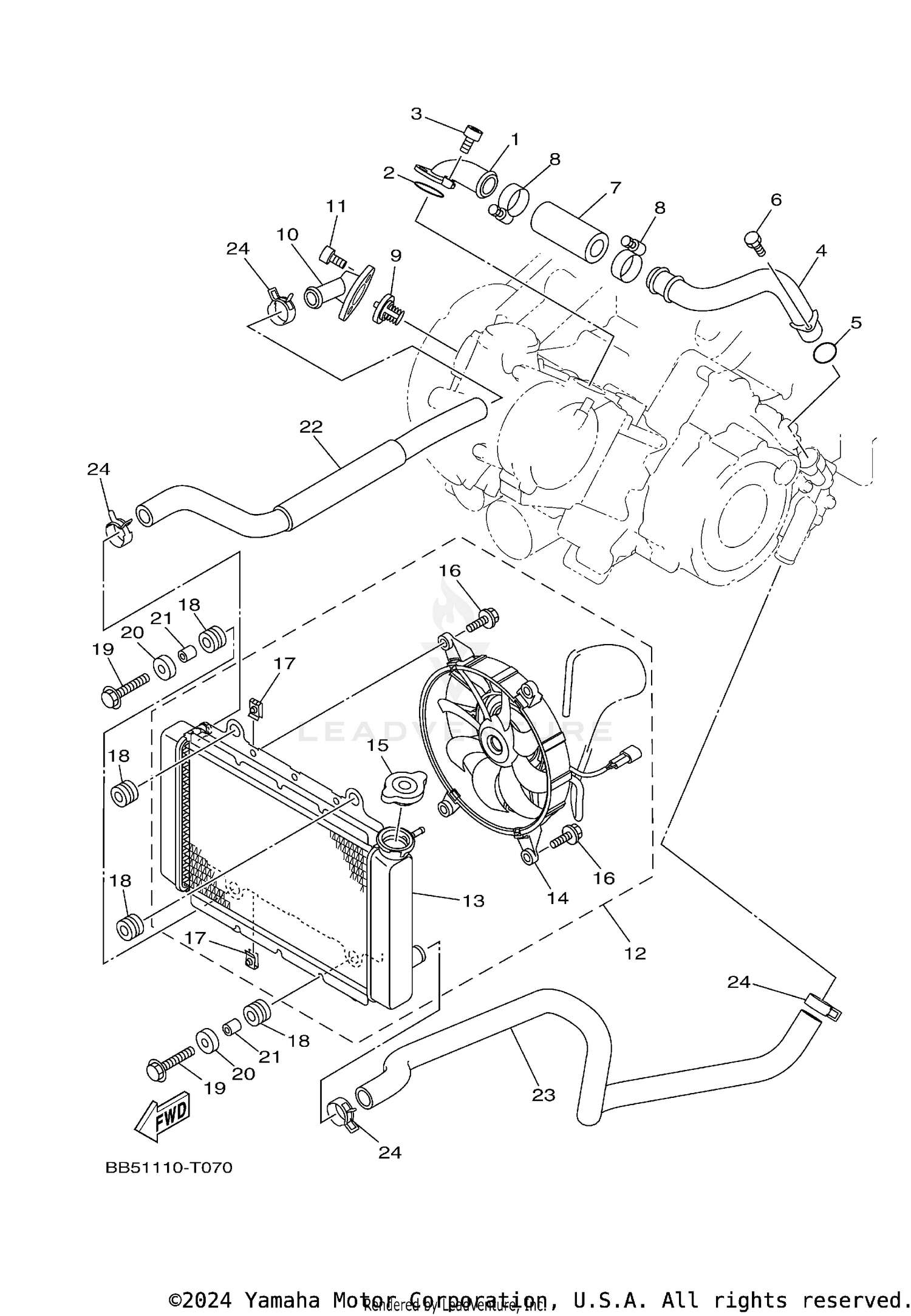

| Ref | Part Number | Description |
|---|---|---|
| 1 | 5GH-12446-00-00 | JOINT Price: $56.99 |
| 2 | 93210-33006-00 | O-RING This part replaces 93210-33786-00. Price: $5.49 |
| 3 | 91314-06020-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06189-00. Price: $2.65 |
| 4 | 5GH-12484-00-00 | PIPE 4 Price: $62.99 |
| 5 | 93210-18417-00 | O-RING Price: $8.49 |
| 6 | 91317-06012-00 | BOLT This part replaces 91312-06012-00. Price: $9.49 |
| 7 | 5GH-12481-00-00 | PIPE 1 Price: $12.99 |
| 8 | 90450-32015-00 | HOSE CLAMP ASSY Price: $19.49 |
| 9 | 2TV-12411-01-00 | THERMOSTAT This part replaces 2TV-12411-00-00. Price: $77.99 |
| 10 | 5GH-12413-00-00 | COVER, THERMOSTAT Price: $74.99 |
| 11 | 91314-06020-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 91312-06020-00. Price: $2.65 |
| 12 | BB5-E2460-04-00 | RADIATOR ASSY This part replaces BB5-E2460-00-00. Price: $259.99 |
| 13 | BB5-E2461-00-00 | RADIATOR COMP Price: $188.99 |
| 14 | 5ND-E2405-02-00 | BLOWER ASSY Price: $277.99 |
| 15 | 5ND-E2462-00-00 | CAP, RADIATOR Price: $35.99 |
| 16 | 5ND-E2675-00-00 | BOLT, BLOWER HOLDING Price: $0.80 |
| 17 | 5ND-E2535-00-00 | PLATE Price: $16.49 |
| 18 | 90480-12475-00 | GROMMET This part replaces 90480-15235-00. Price: $9.49 |
| 19 | 95817-06020-00 | BOLT, FLANGE This part replaces 95812-06020-00. Price: $3.50 |
| 20 | 90209-06012-00 | WASHER Price: $6.49 |
| 21 | 90387-06113-00 | COLLAR Price: $12.49 |
| 22 | 5ND-E2482-00-00 | PIPE 2 Price: $60.99 |
| 23 | 1CT-E2483-00-00 | PIPE 3 Price: $25.99 |
