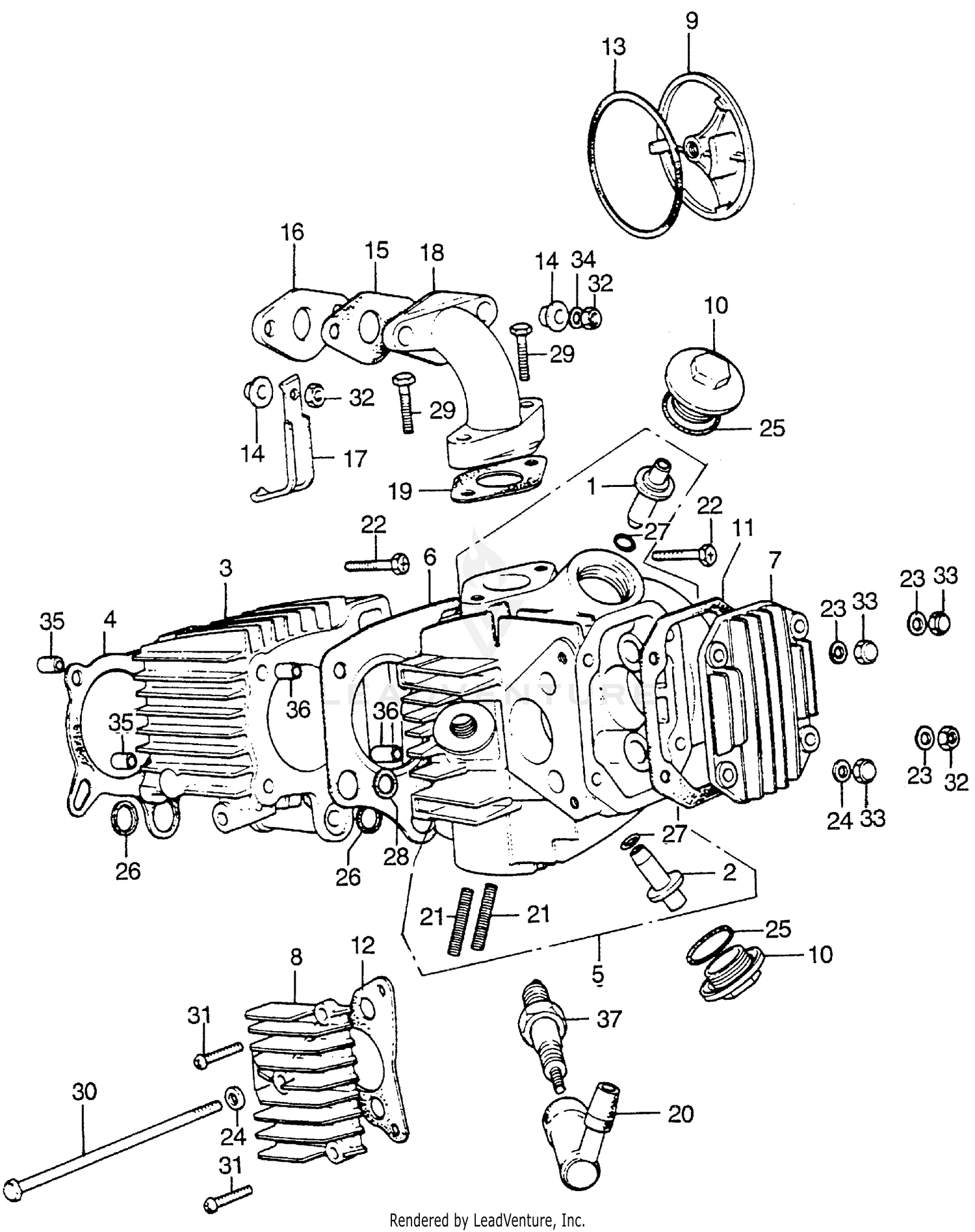

| Ref | Part Number | Description |
|---|
| 1 |
12023-035-405 |
GUIDE, VALVE This part replaces 12021-035-811. Price: $8.79 |
| 2 |
12023-051-320 |
GUIDE, EX. VALVE (NOT AVAILABLE) Price: $11.46 |
| 3 |
12101-GB0-910 |
CYLINDER Price: $243.18 |
| 4 |
12191-GW8-683 |
GASKET, CYLINDER This part replaces 12191-GB2-004. Price: $10.75 |
| 5 |
12200-087-305 |
CYLINDER HEAD This part replaces 12200-087-010. Price: $413.68 |
| 6 |
12251-111-505 |
GASKET, CYLINDER HEAD This part replaces 12251-087-000. Price: $15.47 |
| 7 |
12301-035-000 |
COVER, CYLINDER HEAD (NOT AVAILABLE) Price: $21.25 |
| 8 |
12331-035-000 |
COVER, R. CYLINDER HEAD SIDE Price: $21.25 |
| 9 |
12341-035-000 |
COVER, L. CYLINDER HEAD SIDE Price: $30.87 |
| 10 |
12361-300-000 |
CAP, VALVE ADJ. This part replaces 12361-035-000. Price: $12.40 |
| 11 |
12391-KVM-C20 |
GASKET, CYLINDER HEAD COVER This part replaces 12391-GW8-680. Price: $5.20 |
| 12 |
12394-035-010 |
GASKET, R. CYLINDER This part replaces 12394-035-000. Price: $4.27 |
| 13 |
12395-GW8-682 |
GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GW8-680. Price: $6.22 |
| 14 |
16196-040-004 |
RING, INSULATOR (NOT AVAILABLE) Price: $3.58 |
| 15 |
16201-098-010 |
GASKET, INSULATOR This part replaces 16201-098-000. Price: $3.87 |
| 16 |
16211-098-306 |
INSULATOR, CARBURETOR This part replaces 16211-098-000. Price: $6.33 |
| 17 |
16236-128-000 |
CLAMP, FUEL TUBE (NOT AVAILABLE) Price: $4.67 |
| 18 |
17111-937-000 |
PIPE, INLET (NOT AVAILABLE) Price: $58.52 |
| 19 |
17119-088-832 |
GASKET, IN. PIPE This part replaces 17119-035-000. Price: $5.51 |
| 20 |
30700-KE2-942 |
CAP ASSY., NOISE SUPPRESSOR Price: $21.65 |
| 21 |
90033-041-020 |
BOLT, STUD (6X32) This part replaces 90033-041-000. Price: $2.56 |
| 22 |
90082-035-010 |
BOLT (6MM) This part replaces 90082-035-000. Price: $2.73 |
| 23 |
90442-035-000 |
WASHER, SEALING (6MM) Price: $2.53 |
| 24 |
90443-035-000 |
WASHER A, SEALING (6MM) Price: $4.58 |
| 25 |
91302-001-020 |
O-RING (30.8MM) (Honda Code 0001065) Price: $4.70 |
| 26 |
91303-035-000 |
GASKET, RUBBER (16MM) Price: $6.13 |
| 27 |
91306-028-000 |
O-RING (9.5X1.6) Price: $3.64 |
| 28 |
91306-141-000 |
GASKET, RUBBER (9MM) This part replaces 91306-035-000. Price: $5.84 |
| 29 |
92101-06025-0A |
BOLT, HEX. (6X25) This part replaces 92000-06025. Price: $1.70 |
| 30 |
92101-06110-0A |
BOLT, HEX. (6X112) This part replaces 92000-06112. Price: $3.28 |
| 31 |
93500-06020-0A |
SCREW, PAN (6X20) This part replaces 93500-06020. Price: $1.07 |
| 32 |
94001-06200-0S |
NUT, HEX. (6MM) This part replaces 90310-KA3-711. Price: $1.37 |
| 33 |
94021-06020 |
NUT, CAP (6MM) This part replaces 94021-06000. Price: $1.90 |
| 34 |
94101-06800 |
WASHER, PLAIN (6MM) This part replaces 94101-06000. Price: $0.68 |
| 35 |
94301-08120 |
PIN A, DOWEL (8X12) Price: $2.40 |
| 36 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 37 |
98056-57713 |
SPARK PLUG (C7HS) (NGK) This part replaces 98056-57710. Price: $2.63 |
