Parts Catalog

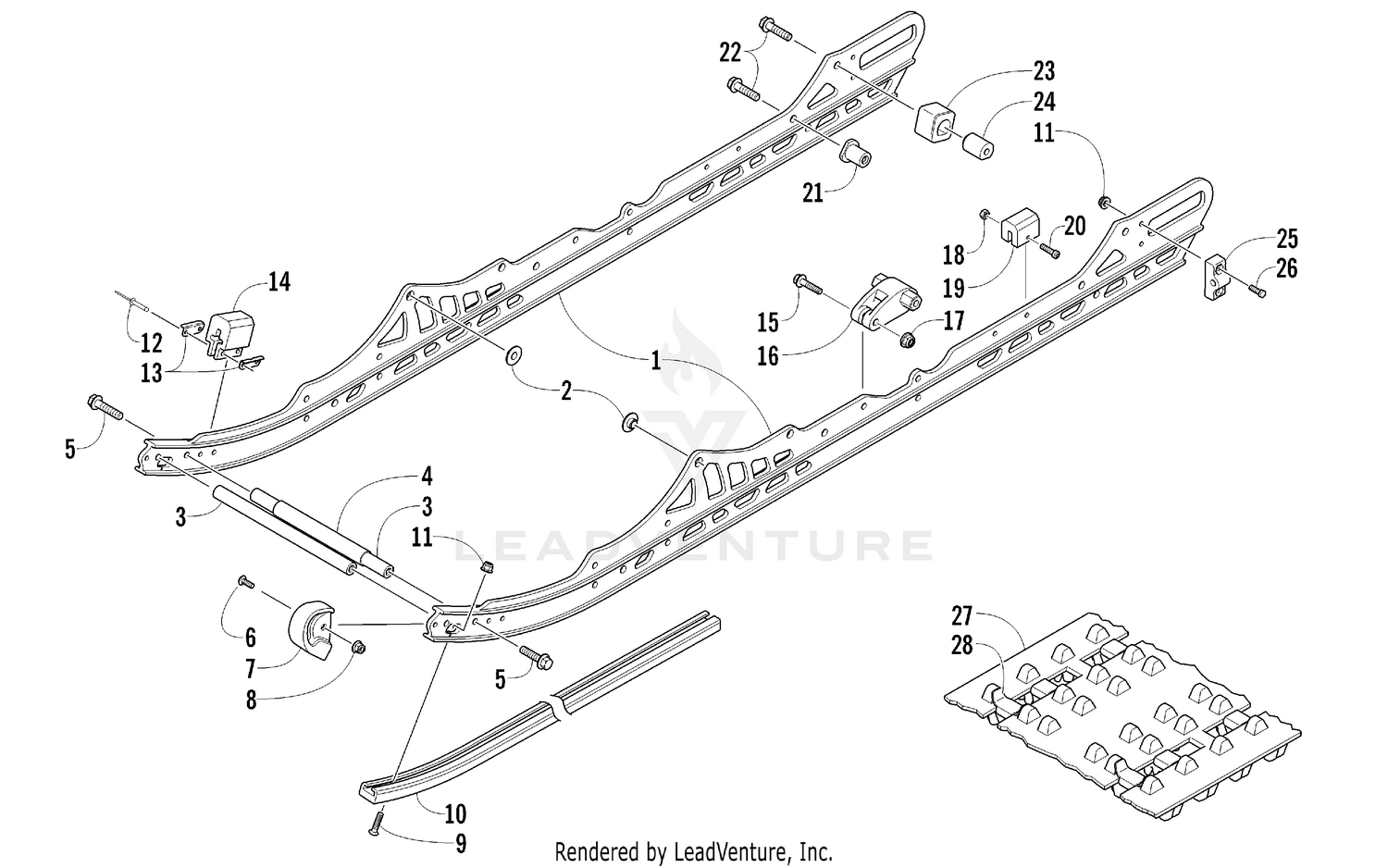

SLIDE RAIL AND TRACK ASSEMBLY [99358]

Parts (26)

Ref	Part Number	Description
1	3604-469	Rail, Formed Price: $372.95
2	3604-266	Insert, Rail Price: $3.51
3	3604-268	Axle Price: $31.95
4	2604-281	Spacer Price: $1.99
5	8408-826	Screw, Cap Price: $0.46
6	8476-625	Screw, Machine Price: $1.92
7	3604-003	End Cap, Slide Rail Price: $20.56
8	8427-602	Nut, Hex Price: $0.23
9	0123-859	Screw, Machine Price: $1.18
10	2604-799	Wearstrip, Slide Rail Price: $40.95
11	8047-366	Nut, Lock Price: $0.46
12	8060-633	Rivet, Blind - DH Price: $1.20
13	0604-967	Bracket, Retaining Price: $3.75
14	0604-918	Pad, Shock Price: $14.49
15	8408-850	Screw, Cap Price: $1.20
16	3604-513	Block, Spring Tension Price: $19.35
17	8427-802	Nut, Lock Price: $0.58
18	8427-502	Nut, Lock Price: $1.07
19	1604-429	Pad, Shock Price: $7.23
20	8470-540	Screw, Machine Price: $1.45
21	3604-979	Axle Price: $3.75
22	8408-031	Screw, Cap Price: $2.30
23	2604-545	Block, Coupler Price: $15.71
24	3604-291	Bushing, Coupler Price: $13.28
25	0704-352	Block Price: $50.95
26	8002-042	Screw, Cap Price: $0.48
