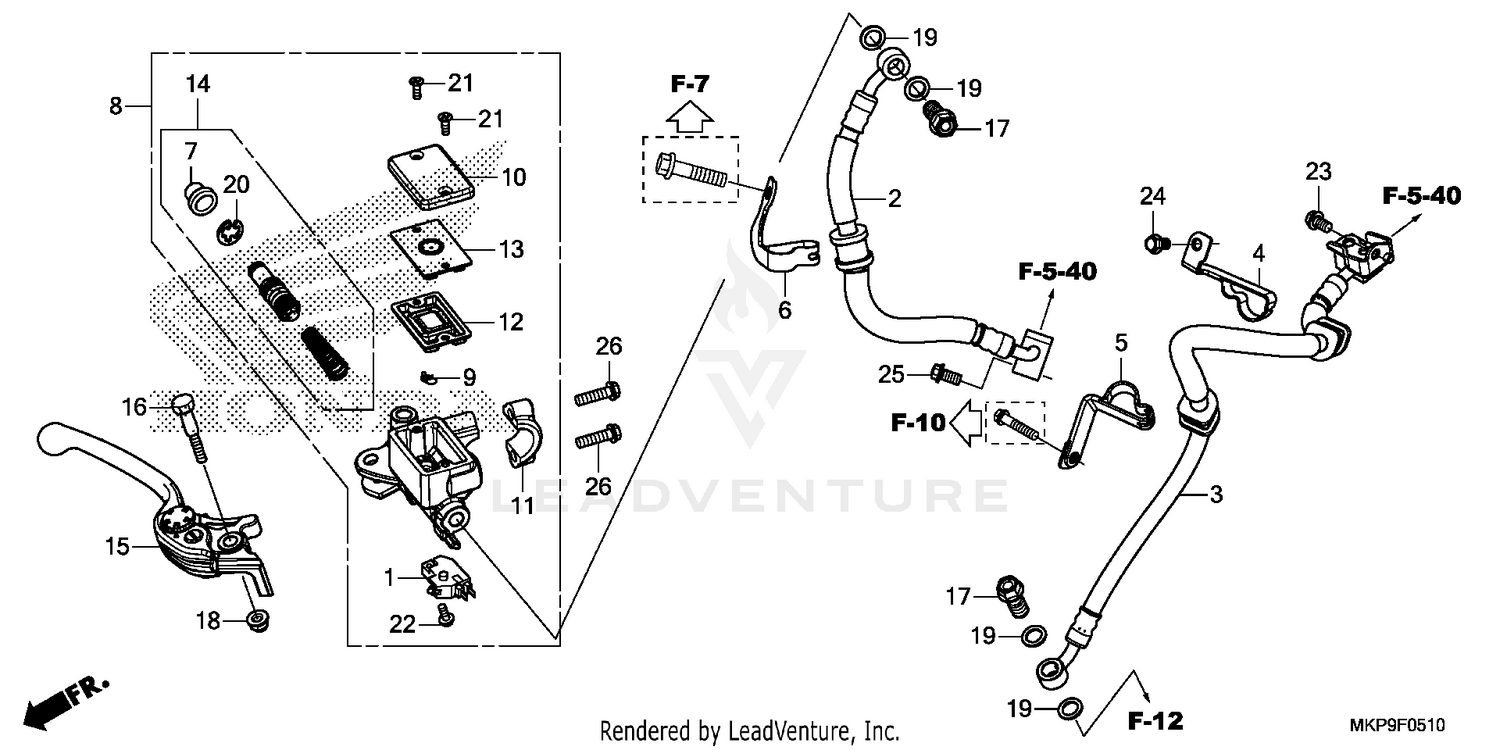

| Ref | Part Number | Description |
|---|
| 1 |
35340-MGS-D31 |
SWITCH ASSY., FR. STOP Price: $22.42 |
| 2 |
45125-MJW-J51 |
HOSE A, FR. BRAKE Price: $28.76 |
| 3 |
45126-MJW-J11 |
HOSE B, FR. BRAKE Price: $66.02 |
| 4 |
45155-MGZ-J10 |
CLAMP A, FR. BRAKE HOSE Price: $4.56 |
| 5 |
45156-MGZ-J10 |
CLAMP B, FR. BRAKE HOSE Price: $3.71 |
| 6 |
45157-MGZ-J40 |
CLAMP C, FR. BRAKE HOSE Price: $4.09 |
| 7 |
45504-410-003 |
BOOT Price: $14.75 |
| 8 |
45510-MGZ-315 |
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-MGZ-D02. Price: $139.42 |
| 9 |
45512-MA6-006 |
PROTECTOR Price: $5.38 |
| 10 |
45513-HR0-305 |
CAP, MASTER CYLINDER (COO) Price: $5.22 |
| 11 |
45517-166-006 |
HOLDER, MASTER CYLINDER Price: $16.42 |
| 12 |
45520-GE2-006 |
DIAPHRAGM Price: $11.27 |
| 13 |
45521-K21-901 |
PLATE, DIAPHRAGM Price: $2.60 |
| 14 |
45530-471-831 |
MASTER CYLINDER SET Price: $48.07 |
| 15 |
53170-MJW-J01 |
LEVER ASSY., R. HANDLE Price: $110.25 |
| 16 |
90114-166-006 |
BOLT, HANDLE LEVER PIVOT Price: $8.16 |
| 17 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 18 |
90202-KCW-870 |
NUT, CAP (6MM) Price: $3.32 |
| 19 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 20 |
90651-MA5-671 |
CIRCLIP Price: $3.35 |
| 21 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
| 22 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
| 23 |
95701-06010-07 |
BOLT, FLANGE (6X10) Price: $1.70 |
| 24 |
90013-GHB-600 |
BOLT, FLANGE (6X10) Price: $5.11 |
| 25 |
90013-GHB-610 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $2.65 |
