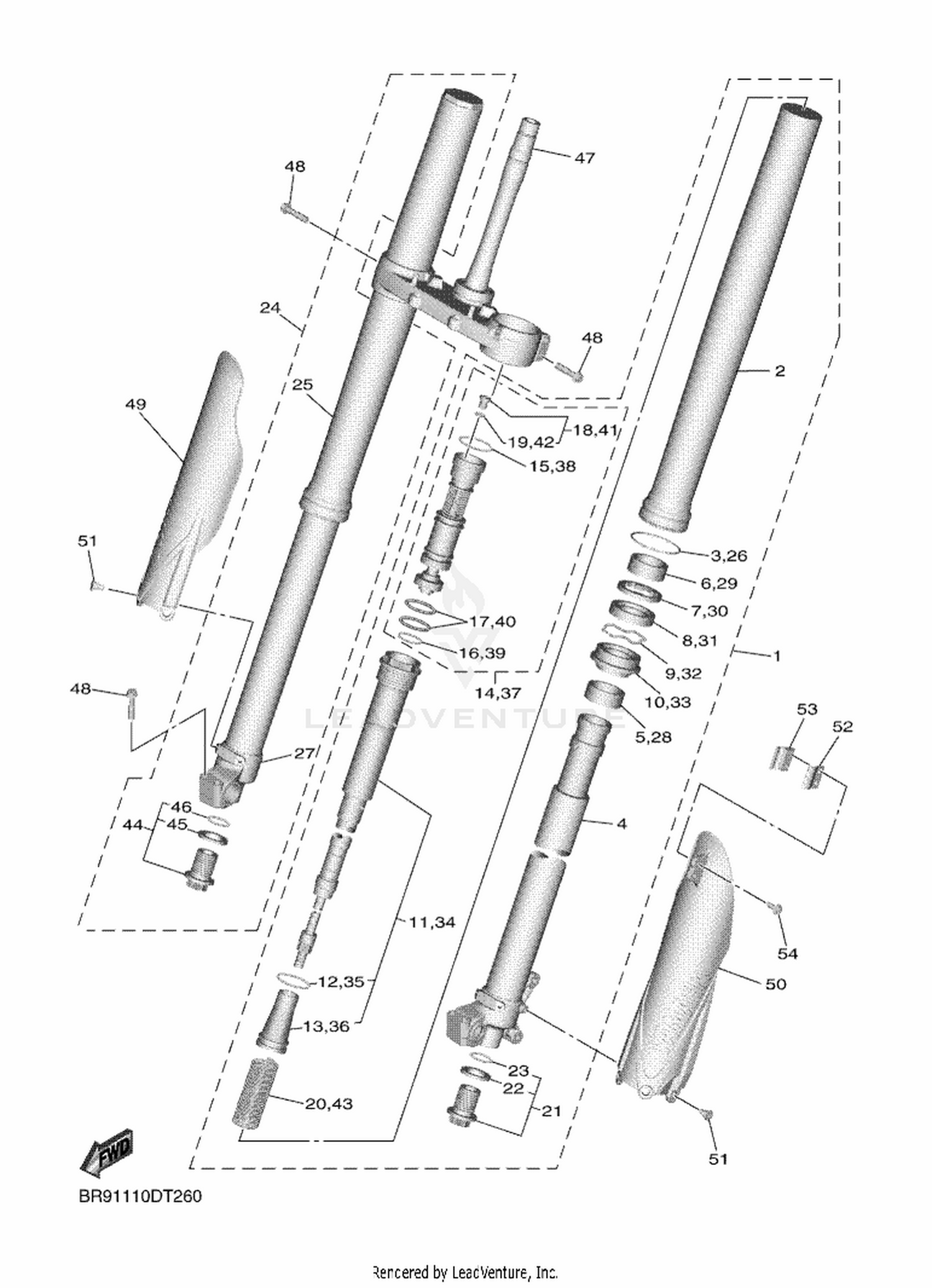

28 FRONT FORK
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B7B-23102-61 | FRONT FORK ASSY (L.H) Price: Call Us |
| 20 | BR9-23141-40 | SPRING, FRONT FORK (K=4.7) Price: Call Us |
| 24 | B7B-23103-61 | FRONT FORK ASSY (R.H) Price: Call Us |
| 43 | BR9-23141-40 | SPRING, FRONT FORK (K=4.7) Price: Call Us |
| 47 | 33D-23340-20 | UNDER BRACKET COMP. Price: Call Us |
| 48 | 95E34-08035 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 49 | 17D-2315J-H0 | PROTECTOR 2 Price: Call Us |
| 50 | 17D-2315H-H0 | PROTECTOR 1 Price: Call Us |
| 51 | 90109-06232 | BOLT Price: Call Us |
| 52 | 17D-23466-00 | CLAMP Price: Call Us |
| 53 | 17D-23467-00 | CLAMP Price: Call Us |
