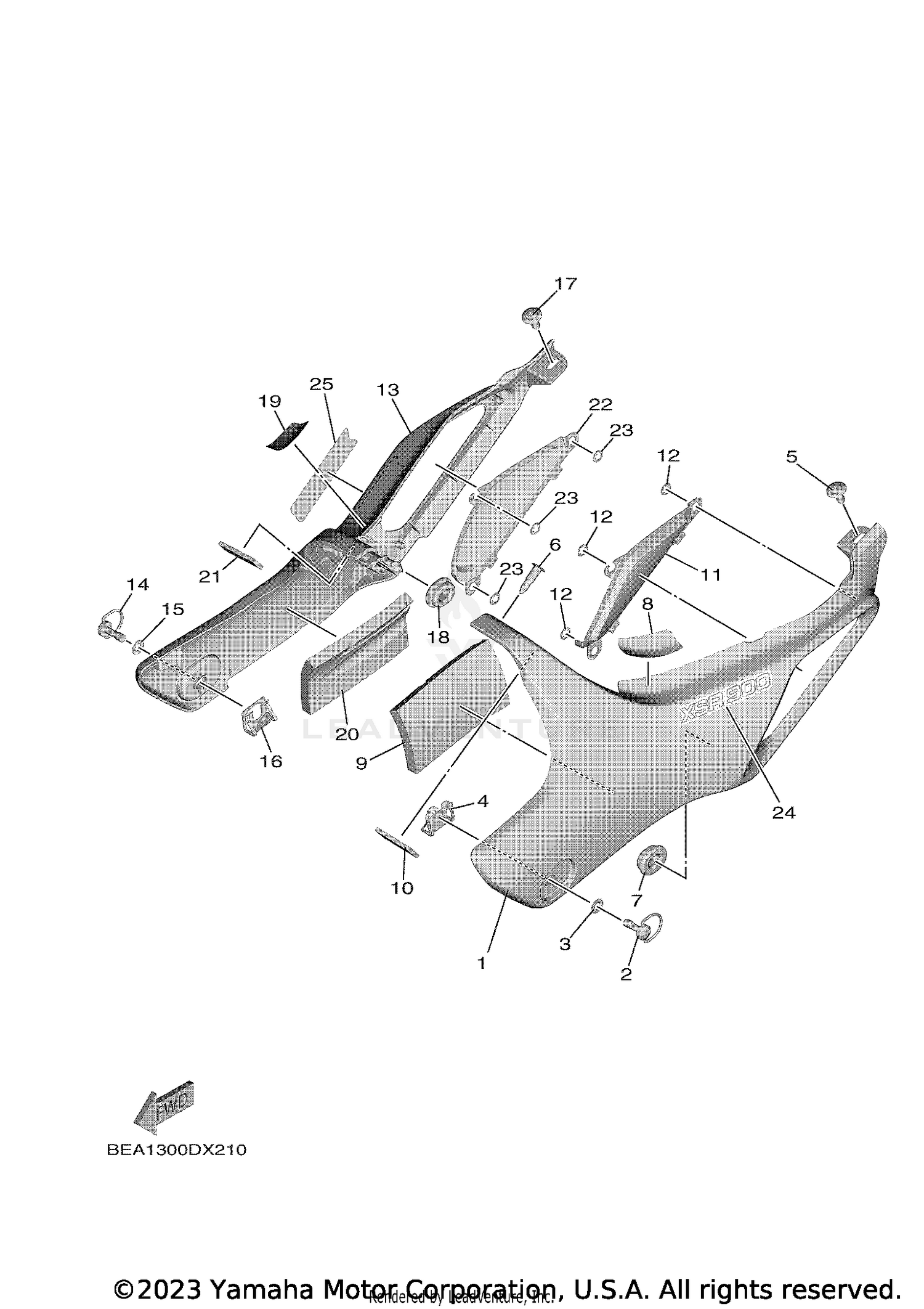

| Ref | Part Number | Description |
|---|
| 2 |
8HG-28386-00-00 |
HEAD Price: $34.99 |
| 3 |
8HG-21757-00-00 |
WASHER, SPECIAL 1 Price: $1.15 |
| 4 |
2CR-2177L-00-00 |
PLATE, SPRING Price: $7.49 |
| 5 |
90269-06001-00 |
RIVET This part replaces 90269-06046-00. Price: $6.49 |
| 6 |
90269-07001-00 |
RIVET Price: $1.65 |
| 7 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 8 |
BEA-21732-00-00 |
SEAL 1 Price: $16.49 |
| 9 |
90520-08010-00 |
DAMPER, PLATE Price: $3.75 |
| 10 |
18A-21778-00-00 |
PROTECTOR, FUEL TANK This part replaces 2JX-24141-00-00. Price: $7.49 |
| 11 |
BEA-2837V-00-00 |
GRILL, AIR OUTLET 1 Price: $36.99 |
| 12 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 14 |
8HG-28386-00-00 |
HEAD Price: $34.99 |
| 15 |
8HG-21757-00-00 |
WASHER, SPECIAL 1 Price: $1.15 |
| 16 |
2CR-2177L-00-00 |
PLATE, SPRING Price: $7.49 |
| 17 |
90269-06001-00 |
RIVET This part replaces 90269-06046-00. Price: $6.49 |
| 18 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 19 |
BEA-21732-00-00 |
SEAL 1 Price: $16.49 |
| 20 |
90520-08010-00 |
DAMPER, PLATE Price: $3.75 |
| 21 |
18A-21778-00-00 |
PROTECTOR, FUEL TANK This part replaces 2JX-24141-00-00. Price: $7.49 |
| 22 |
BEA-2837W-00-00 |
GRILL, AIR OUTLET 2 Price: $33.99 |
| 23 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
