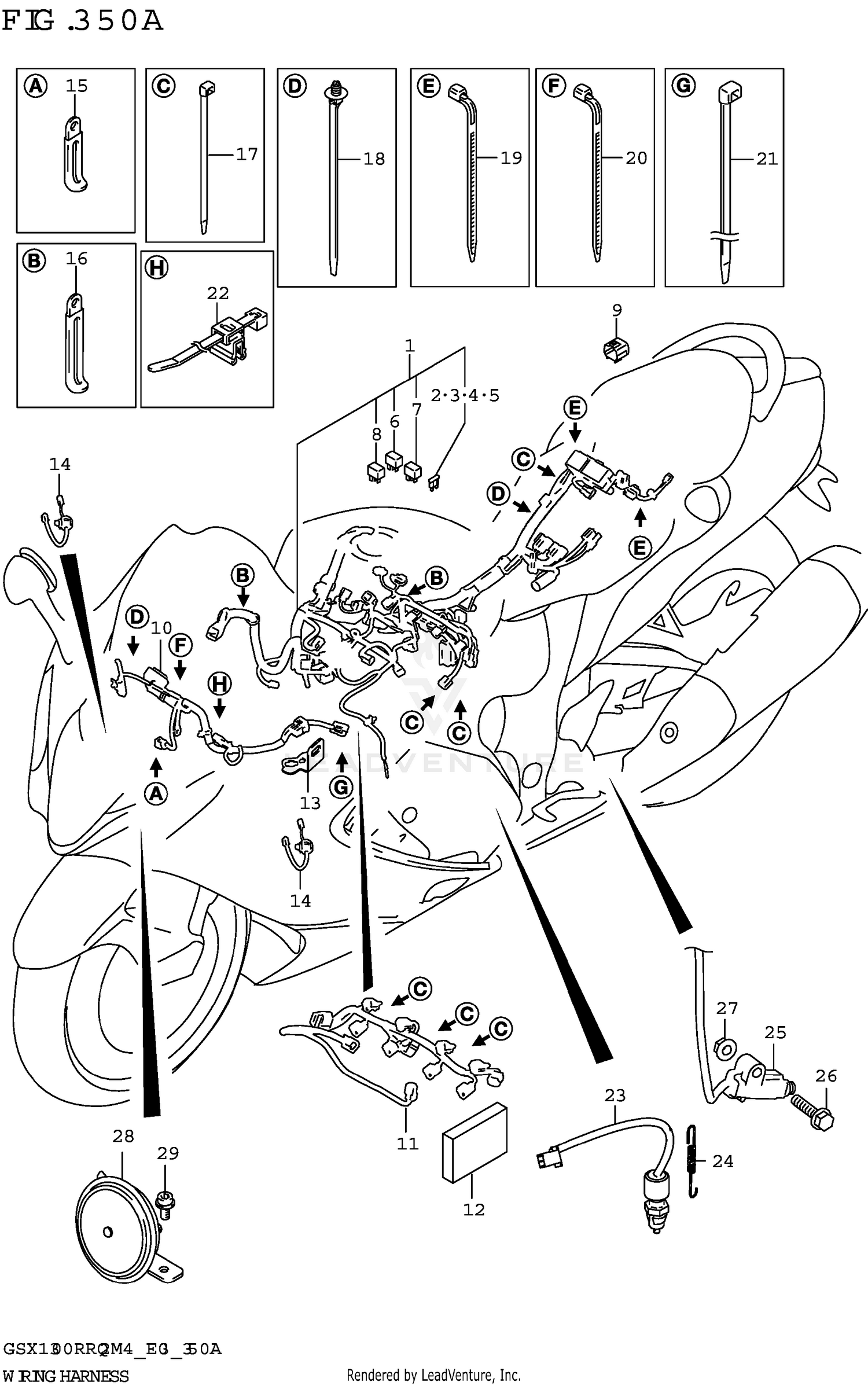

WIRING HARNESS (E33)
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-10L10 | HARNESS,WIRING Price: $994.05 |
| 9 | 36654-28K00 | CAP,OBD CONNECTOR Price: $9.43 |
| 10 | 36620-10L00 | HARNESS,WIRING NO.2 Price: $202.06 |
| 11 | 36630-10L00 | HARNESS,WIRING NO.3 Price: $208.34 |
| 12 | 36652-10L00 | CUSHION,HARNESS WIRING Price: $4.05 |
| 13 | 36672-10L00 | BRACKET,WIRING HARNESS Price: $7.94 |
| 14 | 36852-10L00 | WIRE,FAN MOTOR LEAD Price: $33.18 |
| 15 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 16 | 09407-11401 | CLAMP (L:95) Price: $2.77 |
| 17 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 18 | 09407-17403 | CLAMP (L:170) Price: $6.24 |
| 19 | 09407-19401 | CLAMP (L:190) Price: $3.22 |
| 20 | 09407-19408 | CLAMP Price: $3.68 |
| 21 | 09407-38402 | CLAMP Price: $4.68 |
| 22 | 36990-10L00 | CLAMP Price: $3.36 |
| 23 | 37740-10L00 | SWITCH ASSY,STOP LAMP Price: $16.22 |
| 24 | 09443-06012 | SPRING Price: $3.91 |
| 25 | 37840-24F02 | SWITCH ASSY,SIDE STAND This part replaces 37840-24F01. Price: $63.96 |
| 26 | 09103-08357 | BOLT (8X35) Price: $4.39 |
| 27 | 08316-1008B | NUT Price: $3.21 |
| 28 | 38500-24F40 | HORN ASSY Price: $41.41 |
