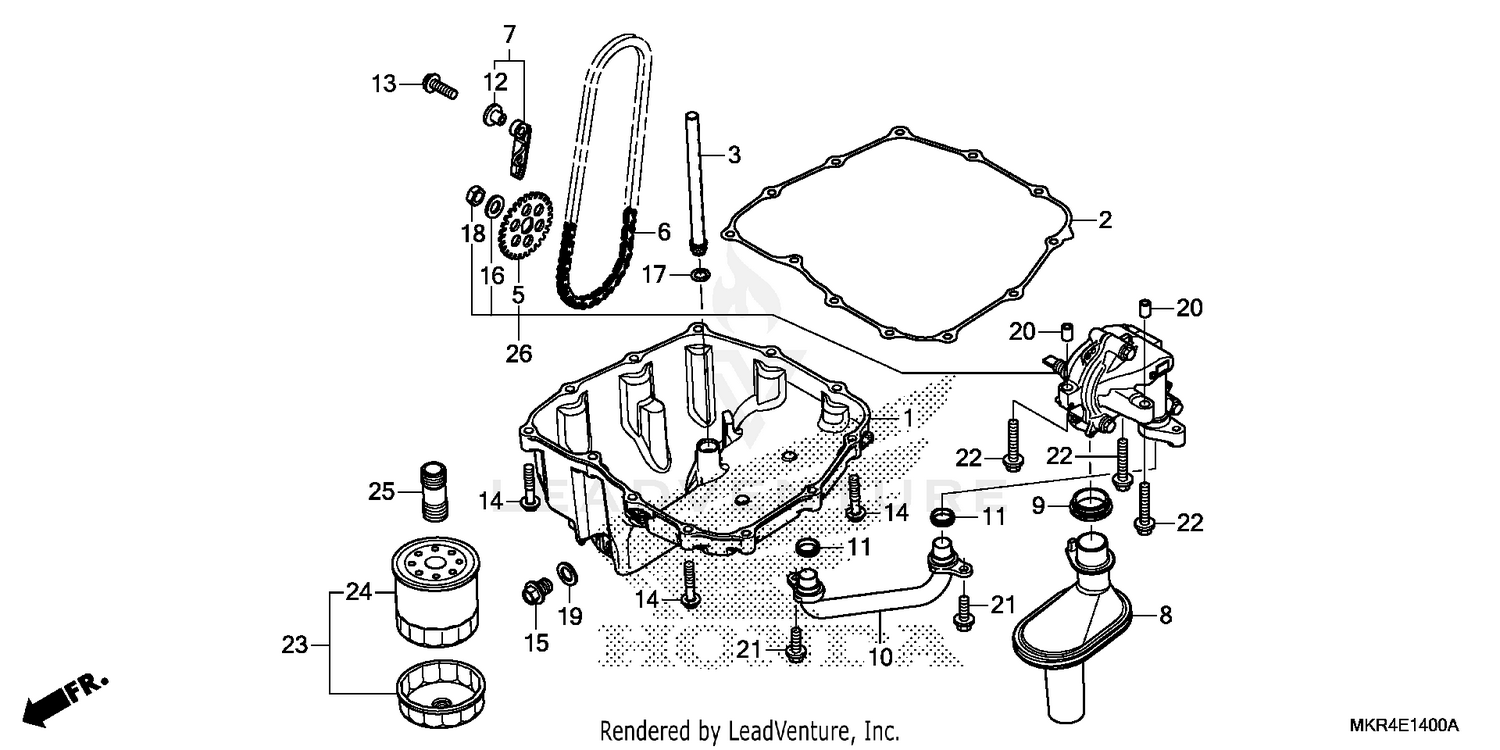

| Ref | Part Number | Description |
|---|
| 1 |
11210-MKR-D10 |
PAN, OIL Price: $439.40 |
| 2 |
11215-MKR-D11 |
GASKET, OIL PAN Price: $15.85 |
| 3 |
11530-MKR-D10 |
PIPE, OIL BREATHER Price: $15.80 |
| 5 |
15134-MKR-D10 |
SPROCKET, OIL PUMP DRIVEN (30T) Price: $52.13 |
| 6 |
15141-MFL-003 |
CHAIN, OIL PUMP (72L) Price: $23.45 |
| 7 |
15146-MFL-000 |
GUIDE, OIL PUMP CHAIN Price: $8.27 |
| 8 |
15150-MKR-D10 |
STRAINER, OIL Price: $43.42 |
| 9 |
15154-MAT-000 |
GASKET, OIL STRAINER Price: $7.73 |
| 10 |
15310-MKR-D10 |
PIPE, OIL Price: $90.76 |
| 11 |
15433-MKR-D11 |
SEAL, RING Price: $3.02 |
| 12 |
61107-MCR-D00 |
COLLAR, FR. FENDER Price: $2.56 |
| 13 |
90011-MFL-000 |
BOLT, FLANGE (6X20) Price: $2.15 |
| 14 |
90027-GHB-700 |
BOLT, FLANGE (6X30) Price: $2.64 |
| 15 |
90131-896-650 |
BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000. Price: $2.76 |
| 16 |
90410-KR0-000 |
WASHER (10MM) Price: $3.05 |
| 17 |
91309-ML7-003 |
O-RING (9.6X2.6) (ARAI) Price: $2.43 |
| 18 |
94002-10200-0S |
NUT, HEX. (10MM) Price: $1.00 |
| 19 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 20 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 21 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 22 |
95701-06035-00 |
BOLT, FLANGE (6X35) Price: $1.97 |
| 24 |
15410-MFJ-D02 |
FILTER, OIL (WAKO FILTER) Price: $18.63 |
| 25 |
90019-MKR-D10 |
BOSS, OIL FILTER Price: $8.91 |
