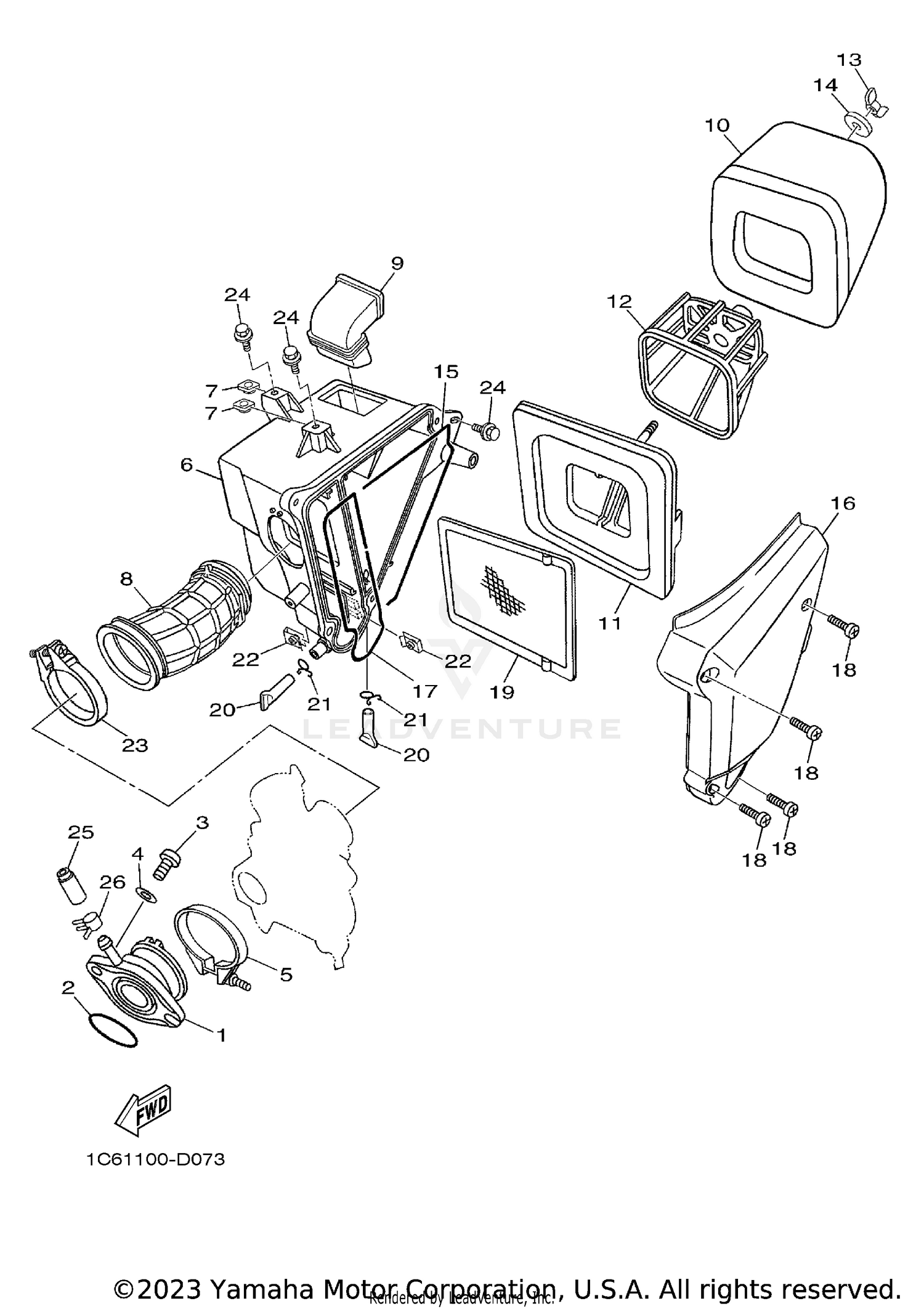

| Ref | Part Number | Description |
|---|
| 1 |
1C6-E3586-00-00 |
JOINT, CARBURETOR 1 Price: $42.99 |
| 2 |
93210-35537-00 |
O-RING Price: $15.49 |
| 3 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 9131M-06020-00. Price: $2.65 |
| 4 |
9290M-06600-00 |
WASHER Price: $0.35 |
| 5 |
90450-47002-00 |
HOSE CLAMP ASSY This part replaces 90460-46206-00. Price: $9.49 |
| 6 |
1C6-E4411-00-00 |
CASE, AIR CLEANER 1 Price: $63.99 |
| 7 |
1B2-E4477-00-00 |
PLATE Price: $0.65 |
| 8 |
1C6-E4453-00-00 |
JOINT, AIR CLEANER 1 Price: $23.99 |
| 9 |
1C6-E4437-00-00 |
DUCT Price: $14.49 |
| 10 |
1C6-14451-01-00 |
ELEMENT, AIR CLEANER This part replaces 1C6-14451-00-00. Price: $23.99 |
| 11 |
1C6-E4459-00-00 |
HOLDER, GUIDE Price: $42.99 |
| 12 |
1C6-E4458-00-00 |
GUIDE Price: $2.05 |
| 13 |
90175-06008-00 |
NUT, WING This part replaces 90175-06012-00. Price: $2.75 |
| 14 |
90201-06086-00 |
WASHER, PLATE This part replaces 90201-06735-00. Price: $8.49 |
| 15 |
1C6-E4462-00-00 |
SEAL Price: $33.99 |
| 16 |
1C6-E4412-00-00 |
CAP, CLEANER CASE 1 Price: $24.99 |
| 17 |
1C6-E4452-00-00 |
SEAL Price: $3.50 |
| 18 |
98907-06020-00 |
SCREW, BIND This part replaces 9890M-06020-00. Price: $9.49 |
| 19 |
1C6-E4472-00-00 |
PLATE, ELEMENT Price: $11.49 |
| 20 |
5HH-E443E-01-00 |
PIPE, DRAIN Price: $0.80 |
| 21 |
90467-15012-00 |
CLIP Price: $9.49 |
| 22 |
90183-06023-00 |
NUT, SPRING Price: $10.49 |
| 23 |
90450-49001-00 |
HOSE CLAMP ASSY This part replaces 90460-49293-00. Price: $18.49 |
| 24 |
90119-06242-00 |
BOLT, WITH WASHER This part replaces 90119-06044-00. Price: $8.49 |
| 25 |
16G-13569-00-00 |
PLUG, BLIND Price: $8.49 |
