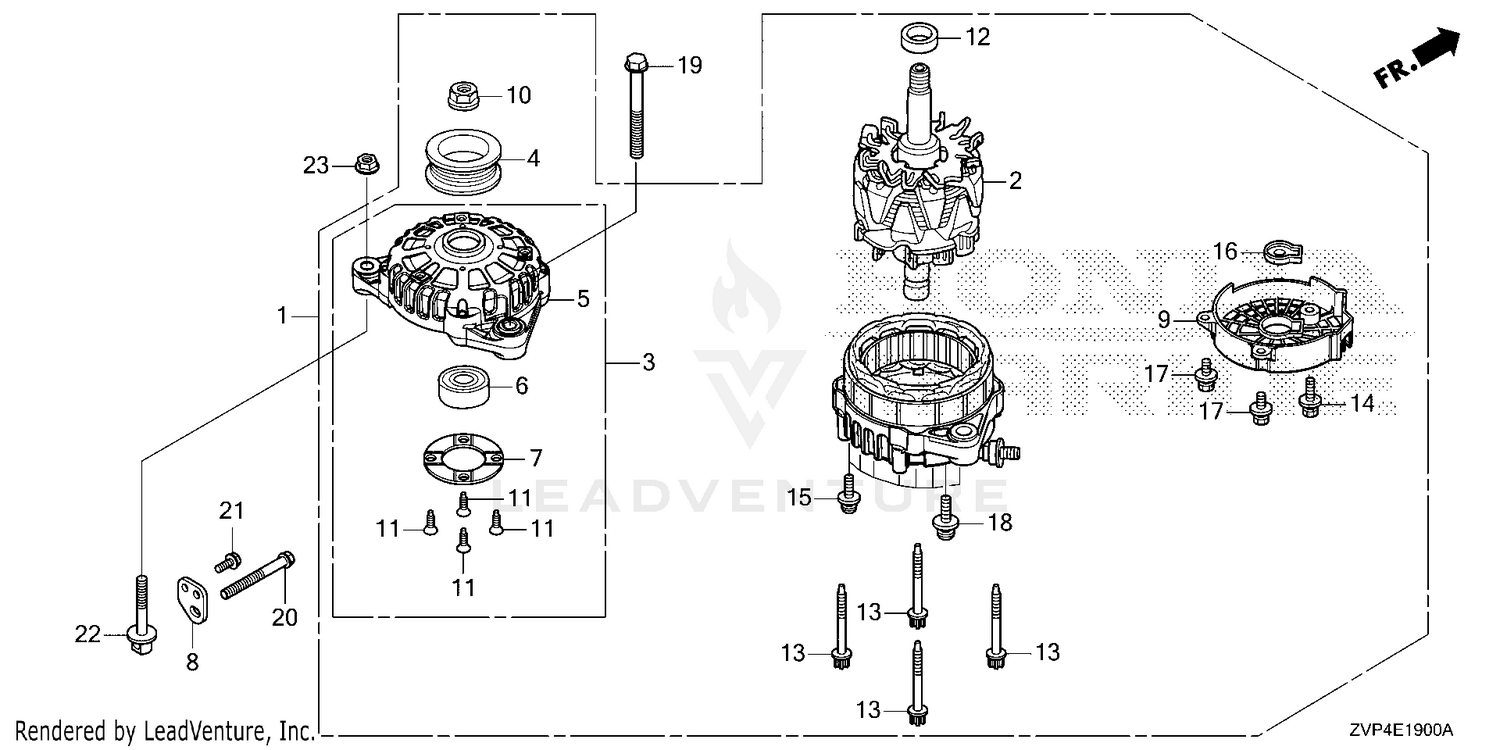

| Ref | Part Number | Description |
|---|
| 1 |
31630-ZVP-003 |
ALTERNATOR ASSY. Price: $972.92 |
| 2 |
31631-ZVP-003 |
ROTOR ASSY. Price: $477.09 |
| 3 |
31632-ZVP-003 |
FRAME UNIT Price: $584.10 |
| 4 |
31633-ZVP-003 |
PULLEY Price: $40.90 |
| 5 |
31634-ZVP-003 |
FRAME, DRIVE END Price: $586.44 |
| 6 |
31635-ZVP-003 |
BEARING, FR. Price: $10.68 |
| 7 |
31636-ZVP-003 |
PLATE, RETAINER Price: $7.24 |
| 8 |
31637-ZVL-000 |
STAY, ALTERNATOR Price: $6.92 |
| 9 |
31639-ZVP-003 |
END COVER, RR. Price: $45.84 |
| 10 |
31641-ZVP-003 |
NUT, PULLEY LOCK Price: $2.74 |
| 11 |
31642-ZVP-003 |
SCREW (5X13.6) Price: $2.56 |
| 12 |
31643-ZVP-003 |
COLLAR Price: $8.86 |
| 13 |
31644-ZVP-003 |
THROUGH BOLT Price: $4.24 |
| 14 |
31645-ZVP-003 |
BOLT-WASHER (4X17.6) Price: $2.42 |
| 15 |
31646-ZVP-003 |
BOLT-WASHER (4X17.6) Price: $2.42 |
| 16 |
31647-ZVP-003 |
SEAL, SLIP RING Price: $3.38 |
| 17 |
31648-ZVP-003 |
BOLT-WASHER (4X12) Price: $2.42 |
| 18 |
31649-ZVP-003 |
SCREW-WASH (5X6) Price: $2.80 |
| 19 |
90002-ZVL-010 |
BOLT, FLANGE (10X90) Price: $3.84 |
| 20 |
90011-ZVL-010 |
BOLT, SPL ADJ Price: $7.62 |
| 21 |
90017-ZZ5-M01 |
BOLT, FLANGE (6X16) Price: $1.70 |
| 22 |
90055-ZVL-010 |
BOLT, TENSIONER Price: $32.58 |
