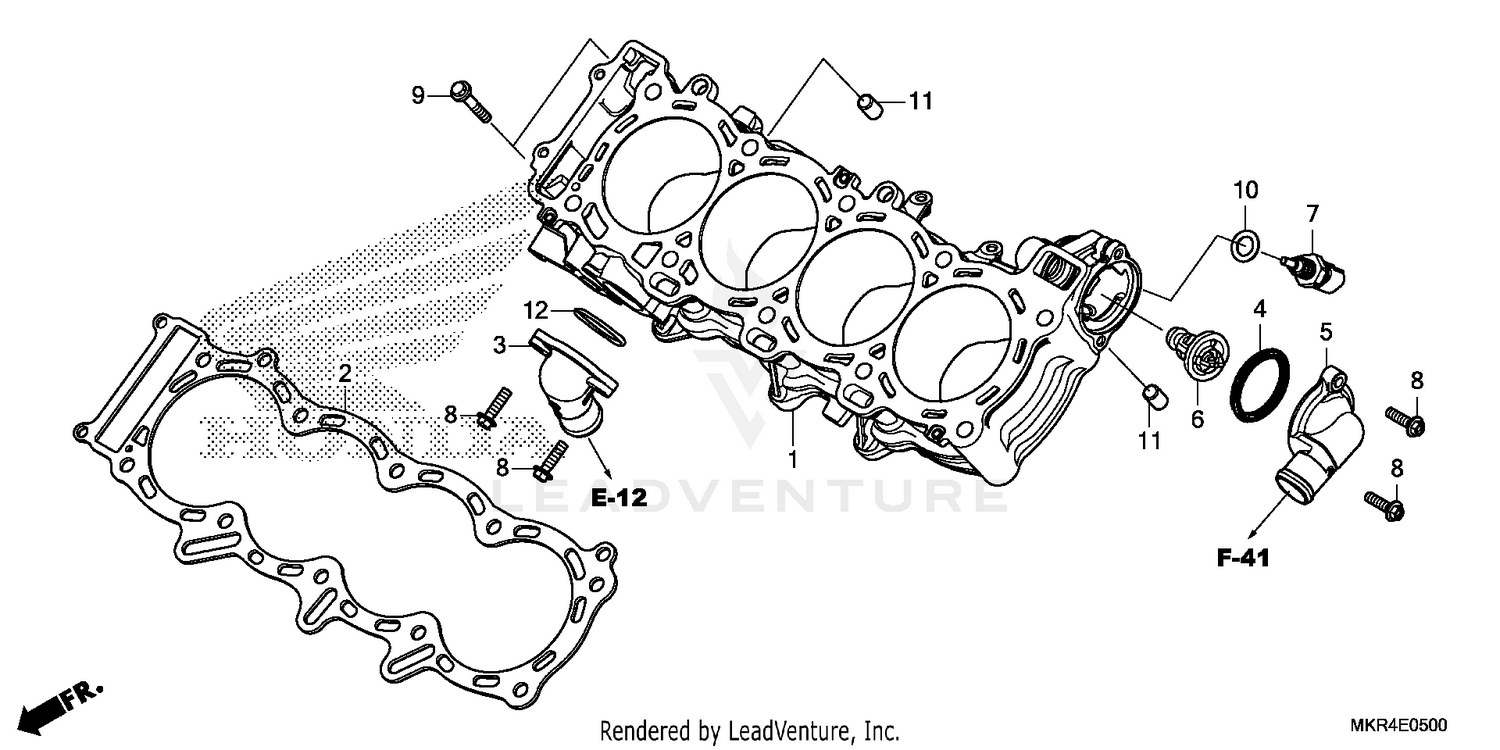

| Ref | Part Number | Description |
|---|
| 1 |
12100-MKR-D61 |
CYLINDER This part replaces 12100-MKR-D60. Price: $1,229.63 |
| 2 |
12191-MKR-D11 |
GASKET, CYLINDER Price: $100.15 |
| 3 |
19060-MKR-D10 |
JOINT, CYLINDER WATER Price: $55.42 |
| 4 |
19305-KV3-010 |
RUBBER, THERMOSTAT Price: $7.62 |
| 5 |
19315-MKR-D10 |
COVER, THERMOSTAT Price: $54.69 |
| 6 |
19320-MKF-D41 |
THERMOSTAT Price: $80.09 |
| 7 |
37870-KRJ-901 |
SENSOR ASSY., WATER TEMPERATURE Price: $37.25 |
| 8 |
90027-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.56 |
| 9 |
90027-GHB-710 |
BOLT, FLANGE (6X32) Price: $2.73 |
| 10 |
90454-MC7-000 |
WASHER, SPECIAL (12MM) Price: $2.98 |
| 11 |
90701-MV9-670 |
PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
