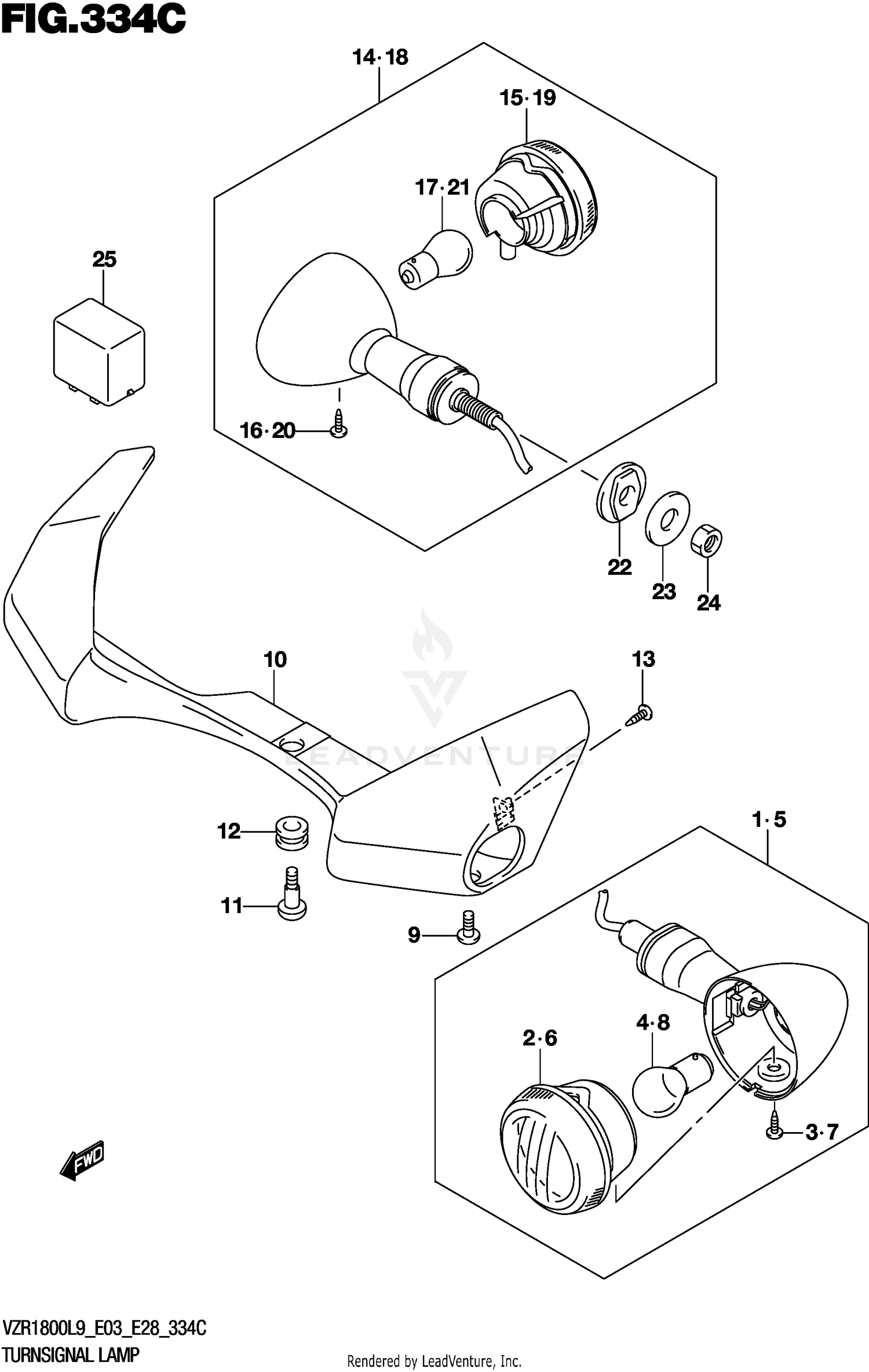

TURNSIGNAL LAMP (VZR1800BZL9 E28)
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35601-38AH0 | LAMP ASSY,FRONT TURNSIGNAL RH Price: $196.27 |
| 5 | 35602-38AH0 | LAMP ASSY,FRONT TURNSIGNAL LH Price: $187.20 |
| 9 | 02142-0612A | SCREW Price: $1.65 |
| 10 | 35641-48GB0 | COVER,FRONT TURNSIGNAL Price: $175.21 |
| 11 | 09139-06146 | SCREW (6X16) Price: $3.59 |
| 12 | 09320-09016 | CUSHION (9X18X9.5) Price: $2.37 |
| 13 | 03541-0512A | SCREW Price: $1.65 |
| 14 | 35603-48ED0 | LAMP ASSY,REAR TURNSIGNAL RH Price: $166.35 |
| 18 | 35604-38AF1 | LAMP ASSY,RR TURNSIGNAL LH This part replaces 35604-38AF0. Price: $115.29 |
| 22 | 35695-17C00 | SPACER,REAR TURNSIGNAL Price: $4.97 |
| 23 | 09160-10501 | WASHER (10.5X30X2.3) Price: $2.72 |
| 24 | 08310-0010A | NUT Price: $2.25 |
