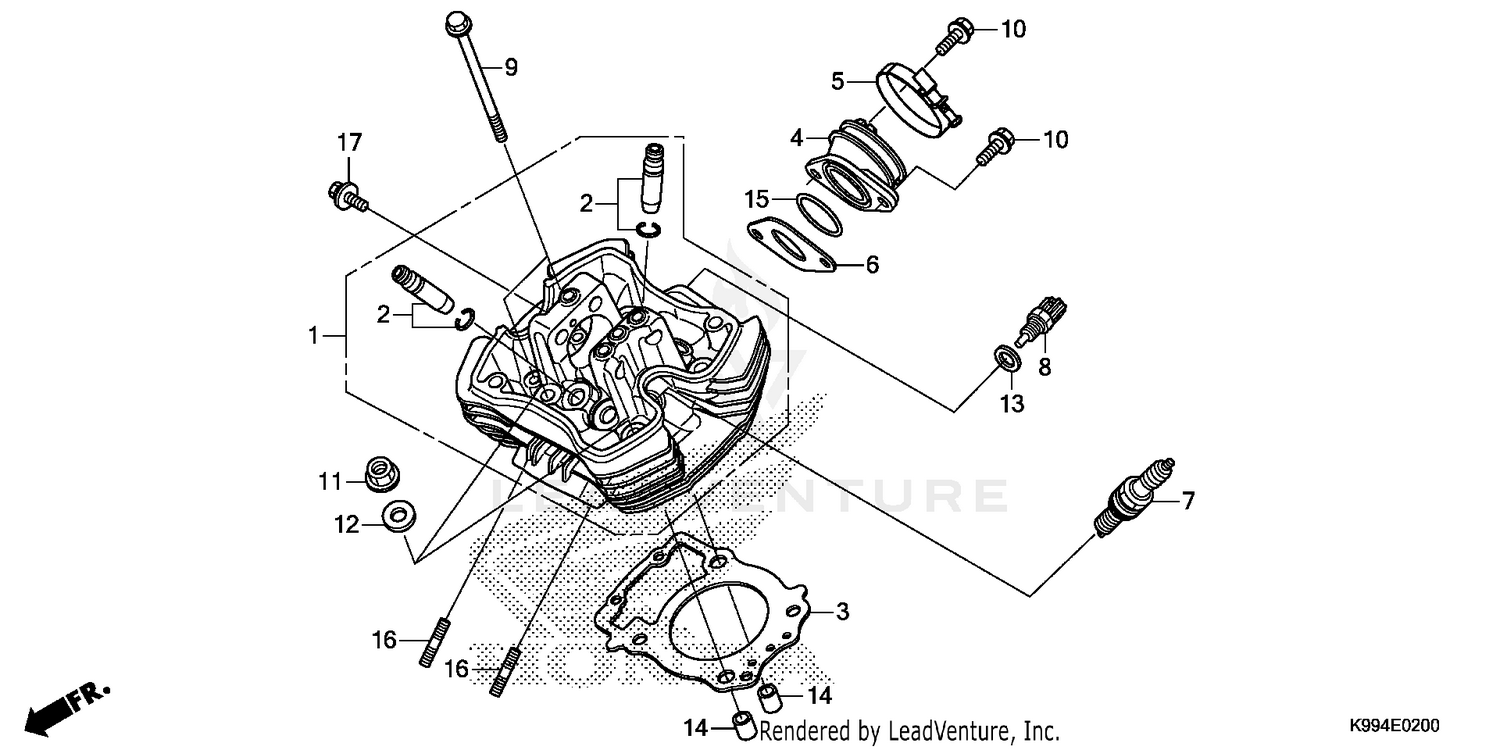

| Ref | Part Number | Description |
|---|
| 1 |
12200-K99-A00 |
CYLINDER HEAD Price: $83.49 |
| 2 |
12204-K31-305 |
GUIDE ASSY., VALVE (OVER SIZE) Price: $46.93 |
| 3 |
12251-K31-901 |
GASKET, CYLINDER HEAD (STD.) Price: $38.00 |
| 4 |
16210-K31-900 |
INSULATOR, THROTTLE BODY Price: $25.33 |
| 5 |
16217-K99-A00 |
BAND, INSULATOR Price: $6.84 |
| 6 |
16291-K31-900 |
GASKET, INSULATOR Price: $6.20 |
| 7 |
31908-K31-901 |
SPARK PLUG (LMAR7H-9DS) (NGK) Price: $50.37 |
| 8 |
37750-KPH-701 |
SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445) Price: $61.02 |
| 9 |
90001-K31-900 |
BOLT, FLANGE (6X120) Price: $3.95 |
| 10 |
90004-GHB-650 |
BOLT, FLANGE (6X20) (NSHF) Price: $2.24 |
| 11 |
90204-KPE-870 |
NUT, FLANGE (10MM) Price: $6.87 |
| 12 |
90401-K31-900 |
WASHER (10MM) Price: $2.76 |
| 13 |
90443-KSS-B30 |
WASHER, SEALING (10MM) Price: $1.85 |
| 14 |
90701-K31-900 |
PIN, DOWEL (12X16) Price: $4.13 |
| 15 |
91305-K31-900 |
O-RING (38X2.4) Price: $86.98 |
| 16 |
92900-08022-3E |
BOLT, STUD (8X22) Price: $2.64 |
