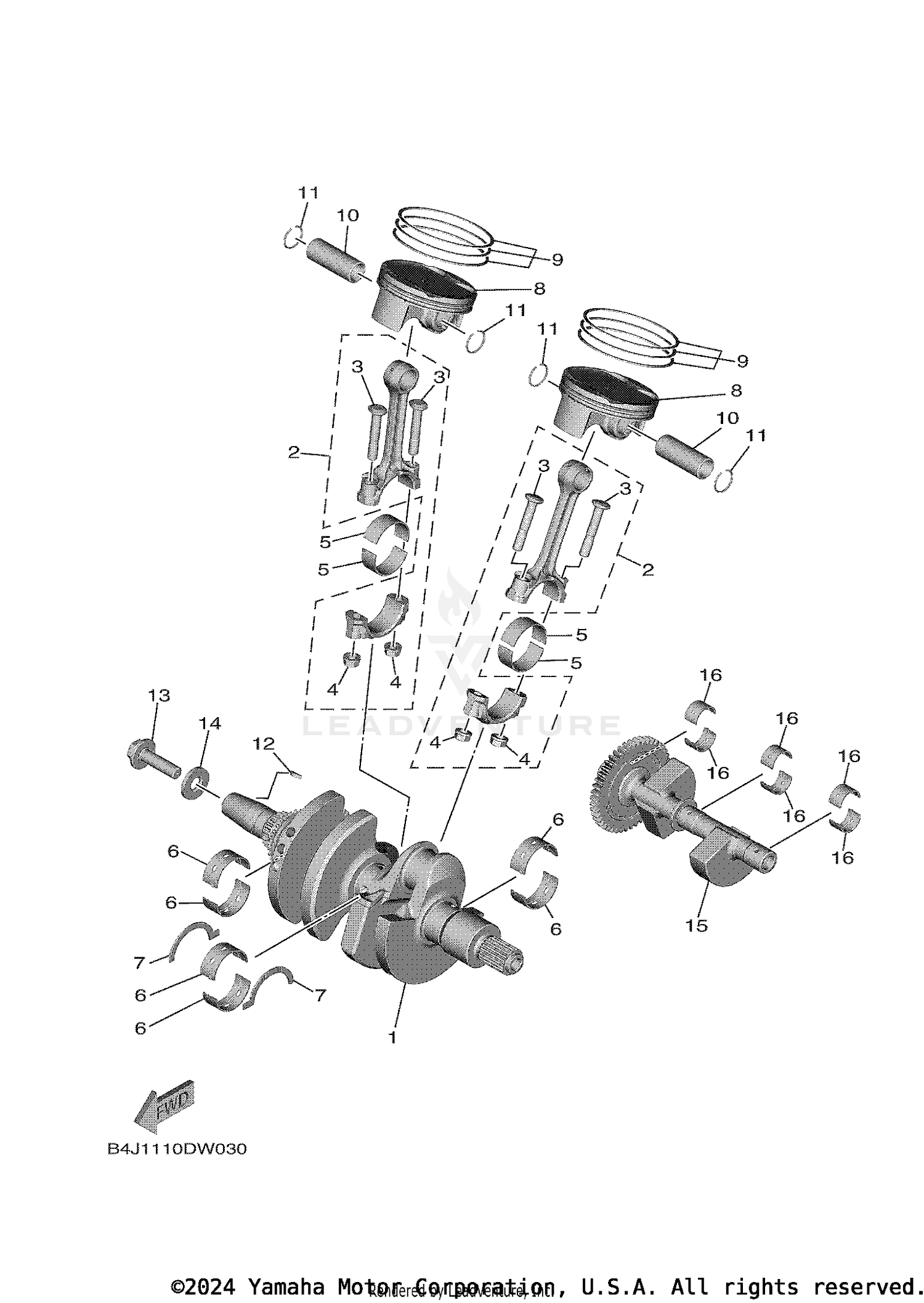

CRANKSHAFT & PISTON
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B1R-11400-00-00 | CRANKSHAFT ASSY Price: $749.99 |
| 2 | B1R-11650-00-00 | CONNECTING ROD ASSY Price: $179.99 |
| 3 | B1R-11654-00-00 | BOLT, CONNECTING ROD Price: $5.49 |
| 4 | 90179-09379-00 | NUT Price: $9.49 |
| 7 | BG4-11426-00-00 | BEARING, THRUST 1 Price: $15.49 |
| 8 | B1R-11631-00-00 | PISTON (STD) Price: $102.99 |
| 9 | B1R-E1603-00-00 | PISTON RING SET (S Price: $19.49 |
| 10 | B1R-11633-00-00 | PIN, PISTON Price: $34.99 |
| 11 | 93450-23167-00 | CIRCLIP Price: $9.49 |
| 12 | 90280-03017-00 | KEY, WOODRUFF This part replaces 90280-03045-00. Price: $8.49 |
| 13 | 90401-12003-00 | BOLT, UNION Price: $23.99 |
| 14 | 90201-12191-00 | WASHER, PLATE This part replaces 90201-121H0-00. Price: $8.49 |
| 15 | B1R-E1500-00-00 | BALANCER ASSY Price: $251.99 |
