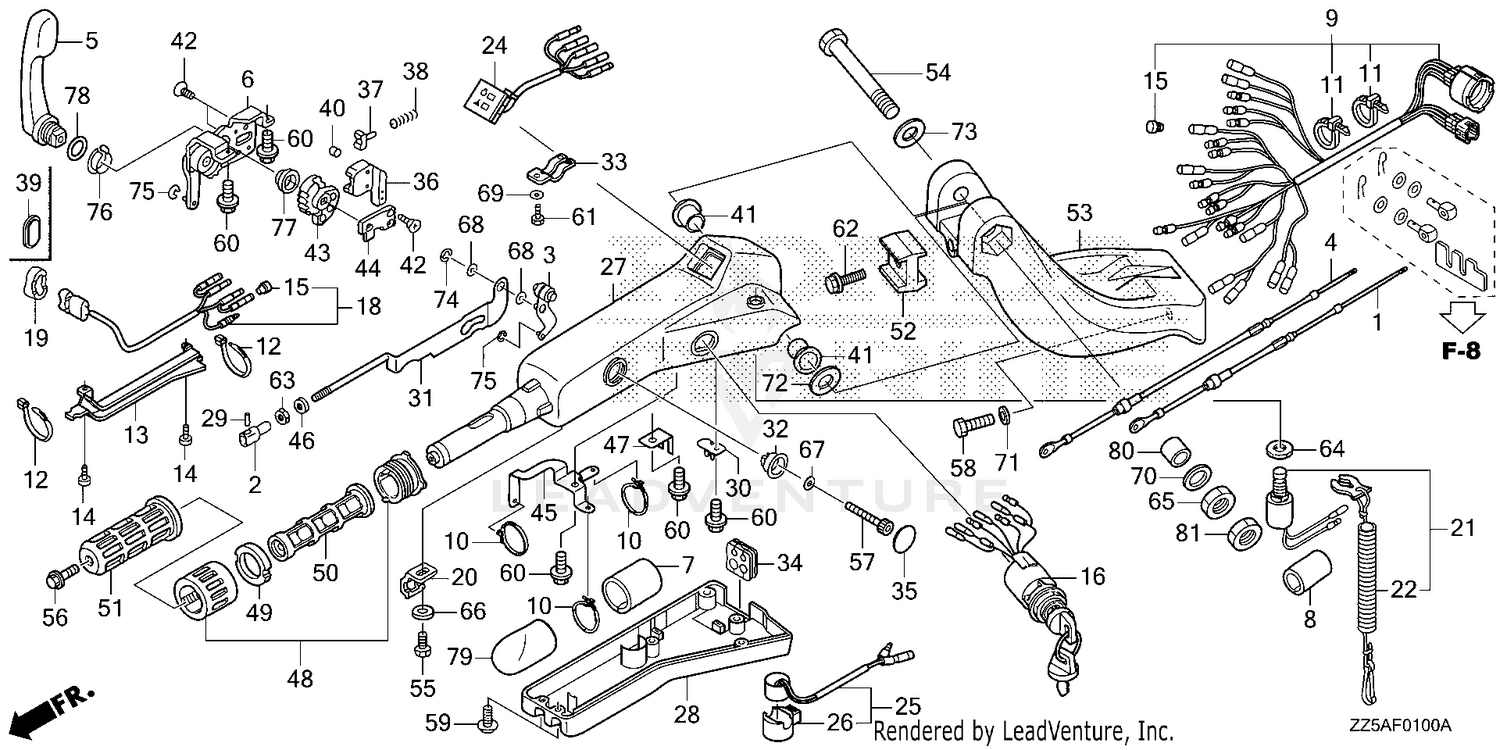

| Ref | Part Number | Description |
|---|
| 1 |
17910-ZW4-H01 |
CABLE, THROTTLE Price: $94.04 |
| 2 |
17917-ZW9-000 |
PIVOT, THROTTLE CABLE Price: $9.34 |
| 3 |
17931-ZW4-H02 |
ARM, THROTTLE Price: $39.20 |
| 4 |
24590-ZW4-H01 |
CABLE, SHIFT Price: $98.32 |
| 5 |
24614-ZW4-H03 |
SEE PART DETAILS - PRI; LEVER, SHIFT Price: $68.50 |
| 6 |
24615-ZW4-H03 |
FRAME ASSY., SHIFT Price: $128.54 |
| 7 |
32533-ZW4-H01 |
TUBE (38.1X40) Price: $8.48 |
| 8 |
32534-ZY9-A01 |
TUBE Price: $6.98 |
| 9 |
32538-ZZ5-611 |
CABLE ASSY., LONG HANDLE (A) Price: $212.76 |
| 10 |
32543-ZW4-H01 |
BAND (CONVEX CV-150) Price: $2.28 |
| 11 |
32544-ZW4-H01 |
BAND (CONVEX CV-200) Price: $2.28 |
| 12 |
32547-ZW4-H01 |
BAND (CONVEX) Price: $2.28 |
| 13 |
32548-ZW4-H01 |
COVER, WIRE Price: $17.02 |
| 14 |
32549-ZW4-H01 |
SCREW Price: $2.22 |
| 15 |
32823-ZV5-003 |
PLUG, CONNECTOR (INNER) (TROLLING CONTROL) Price: $4.04 |
| 16 |
35100-ZW4-H02 |
SWITCH ASSY., COMBINATION Price: $120.14 |
| 20 |
35645-ZW4-H02 |
HOLDER, SWITCH Price: $18.44 |
| 21 |
36180-ZV5-033 |
SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP Price: $77.86 |
| 22 |
36182-ZV4-651 |
SEE PART DETAILS - PRI; WIRE, EMERGENCY (SINGLE) (DUAL) Price: $25.28 |
| 24 |
37210-ZY9-A03 |
LAMP ASSY., INDICATOR Price: $138.78 |
| 25 |
38400-ZY9-A00 |
BUZZER ASSY., WARNING Price: $96.38 |
| 26 |
38402-ZY9-A00 |
SUSPENSION, WARNING BUZZER Price: $29.58 |
| 27 |
53101-ZY9-A02ZB |
HOUSING *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $460.64 |
| 28 |
53102-ZY9-A02 |
COVER, HANDLEBAR (LOWER) Price: $20.98 |
| 29 |
53103-ZW9-000 |
PIN, THROTTLE CABLE Price: $3.84 |
| 30 |
53104-ZW4-H02 |
BRACKET, CABLE Price: $7.86 |
| 31 |
53105-ZW4-H01 |
PLATE ASSY., LOCK Price: $49.08 |
| 32 |
53106-ZW4-H01 |
STOPPER Price: $15.58 |
| 33 |
53107-ZW4-H02 |
PLATE, GUIDE Price: $8.30 |
| 34 |
53108-ZW4-H01 |
GROMMET Price: $21.34 |
| 35 |
53109-ZW4-H02 |
CAP Price: $12.10 |
| 36 |
53112-ZW4-H02 |
GUIDE, SPRING Price: $30.16 |
| 37 |
53113-ZW4-H01 |
ACTUATOR Price: $7.02 |
| 38 |
53114-ZW4-H01 |
SPRING, COIL Price: $19.72 |
| 39 |
53115-ZW4-H02 |
GROMMET, POWER TILT SWITCH Price: $6.84 |
| 40 |
53116-ZW4-H01 |
ROLLER Price: $2.32 |
| 41 |
53116-ZW4-H11 |
BUSH, HANDLEBAR Price: $9.02 |
| 42 |
53117-ZW4-H01 |
SCREW (M5X14) Price: $1.16 |
| 43 |
53118-ZW4-H03 |
SEE PART DETAILS - PRI; GEAR, SHIFT Price: $34.48 |
| 44 |
53119-ZW4-H02 |
PLATE, BALL GUIDE Price: $13.10 |
| 45 |
53121-ZW4-H02 |
BRACKET Price: $16.80 |
| 46 |
53122-ZW4-H01 |
ROD, GROMMET Price: $21.42 |
| 47 |
53123-ZW4-H01 |
CLAMP, BRACKET Price: $20.32 |
| 48 |
53130-ZW9-000 |
SEE PART DETAILS - PRI; GRIP ASSY., THROTTLE FRICTION Price: $29.72 |
| 49 |
53133-ZW9-000 |
PAD, THROTTLE FRICTION Price: $8.76 |
| 50 |
53141-ZW4-H00 |
PIPE, GRIP Price: $32.34 |
| 51 |
53165-ZW9-000 |
RUBBER, GRIP Price: $15.34 |
| 52 |
53232-ZY9-A00 |
BLOCK, HEIGHT ADJUSTER Price: $63.72 |
| 53 |
53233-ZZ5-000ZB |
BRACKET, STEERING *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $249.00 |
| 54 |
90101-ZW4-H00 |
BOLT, HEX. (12X80) Price: $22.48 |
| 55 |
90102-ZW4-H01 |
BOLT (M5X8) Price: $2.22 |
| 56 |
90102-ZW9-000 |
BOLT, FLANGE (6X12) Use from Frame SN 1005249. Price: $2.90 |
| 57 |
90103-ZW4-H02 |
SEE PART DETAILS - PRI; BOLT (M8X50) Price: $9.34 |
| 58 |
90103-ZY3-000 |
BOLT, HEX. (10X32) Price: $7.38 |
| 59 |
90104-ZW4-H01 |
BOLT (M5X12) Price: $2.22 |
| 60 |
90105-ZW4-H02 |
BOLT (M6X12) Price: $2.40 |
| 61 |
90106-ZW4-H01 |
BOLT (M5X12) Price: $2.10 |
| 62 |
90118-HW1-671 |
BOLT, FLANGE (8X28) Price: $6.20 |
| 63 |
90301-ZW4-H01 |
NUT, HEX. (5MM) Price: $2.22 |
| 64 |
90302-921-000 |
NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE) Price: $5.62 |
| 65 |
90303-ZW4-H00 |
NUT, HEX. (12MM) Price: $7.54 |
| 66 |
90501-ZW4-H01 |
WASHER (5MM) Price: $2.22 |
| 67 |
90502-ZW4-H02 |
SEE PART DETAILS - PRI; WASHER (8MM) Price: $2.28 |
| 68 |
90503-ZW4-H01 |
WASHER (10MM) Price: $2.98 |
| 69 |
90504-ZW4-H01 |
WASHER (5MM) Price: $2.24 |
| 70 |
90506-ZV1-000 |
WASHER, WAVE (14MM) Price: $3.34 |
| 71 |
90514-ZV4-000 |
WASHER (10MM) Price: $2.32 |
| 72 |
90552-ZV5-000 |
WASHER, PLAIN (12MM) Price: $6.40 |
| 73 |
90559-ZV5-000 |
WASHER, PLAIN (12MM) Price: $4.04 |
| 74 |
90651-ZW4-H01 |
E-RING Price: $6.68 |
| 75 |
90652-ZW4-H01 |
E-RING Price: $4.70 |
| 76 |
91051-ZW4-H02 |
BEARING Price: $3.88 |
| 77 |
91052-ZW4-H01 |
BEARING Price: $5.56 |
| 78 |
91304-HP5-601 |
O-RING (20.6X1.9) Price: $4.08 |
| 79 |
91451-ZY9-A00 |
TUBE, CORD (40MM) Price: $7.80 |
| 80 |
91552-ZW4-H00 |
COLLAR, DISTANCE (12.2X23X16) Price: $10.80 |
