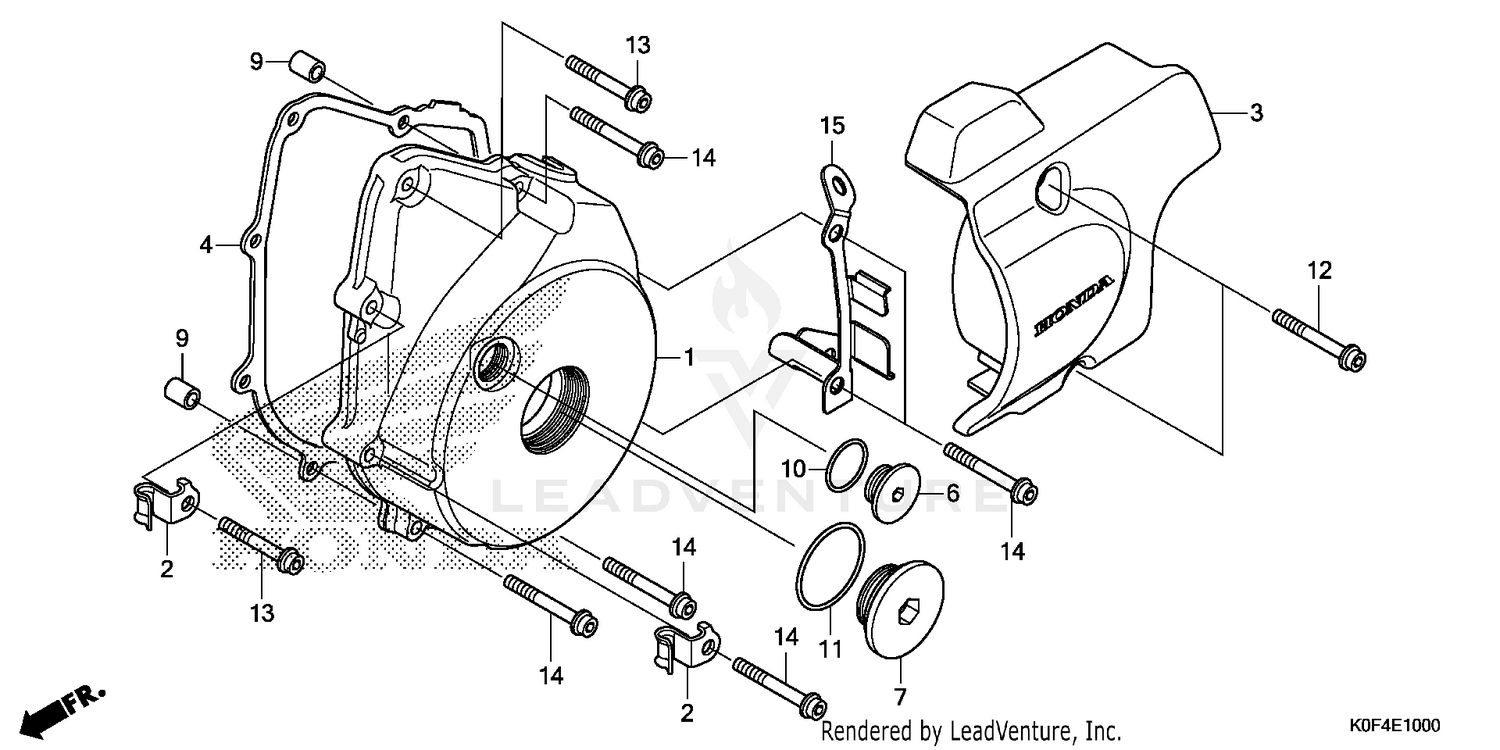

LEFT CRANKCASE COVER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11341-K0F-T00 | COVER, L. CRANKCASE Price: $57.31 |
| 2 | 11346-K0F-T00 | CLAMP A, OIL TEMP SENSOR CORD Price: $1.56 |
| 3 | 11360-K0F-T00 | COVER ASSY., L. RR. Price: $62.93 |
| 4 | 11395-K73-T60 | GASKET, L. CRANKCASE COVER This part replaces 11395-KPH-901. Price: $1.89 |
| 6 | 90084-K0F-T00 | CAP (14MM) Price: $17.20 |
| 7 | 90087-K0F-T00 | CAP (30MM) Price: $22.93 |
| 9 | 90702-KFM-900 | PIN, DOWEL (8X12) Price: $0.76 |
| 10 | 91303-377-000 | O-RING (13.8X2.5) Price: $4.29 |
| 11 | 91356-KWV-000 | O-RING (30MM) Price: $1.58 |
| 12 | 90001-MJE-D00 | BOLT, FLANGE SOCKET (6X35) Price: $1.22 |
| 13 | 90003-MGZ-J00 | BOLT, FLANGE SOCKET (6X28) Price: $0.75 |
| 14 | 90001-MJE-D00 | BOLT, FLANGE SOCKET (6X35) Price: $1.22 |
