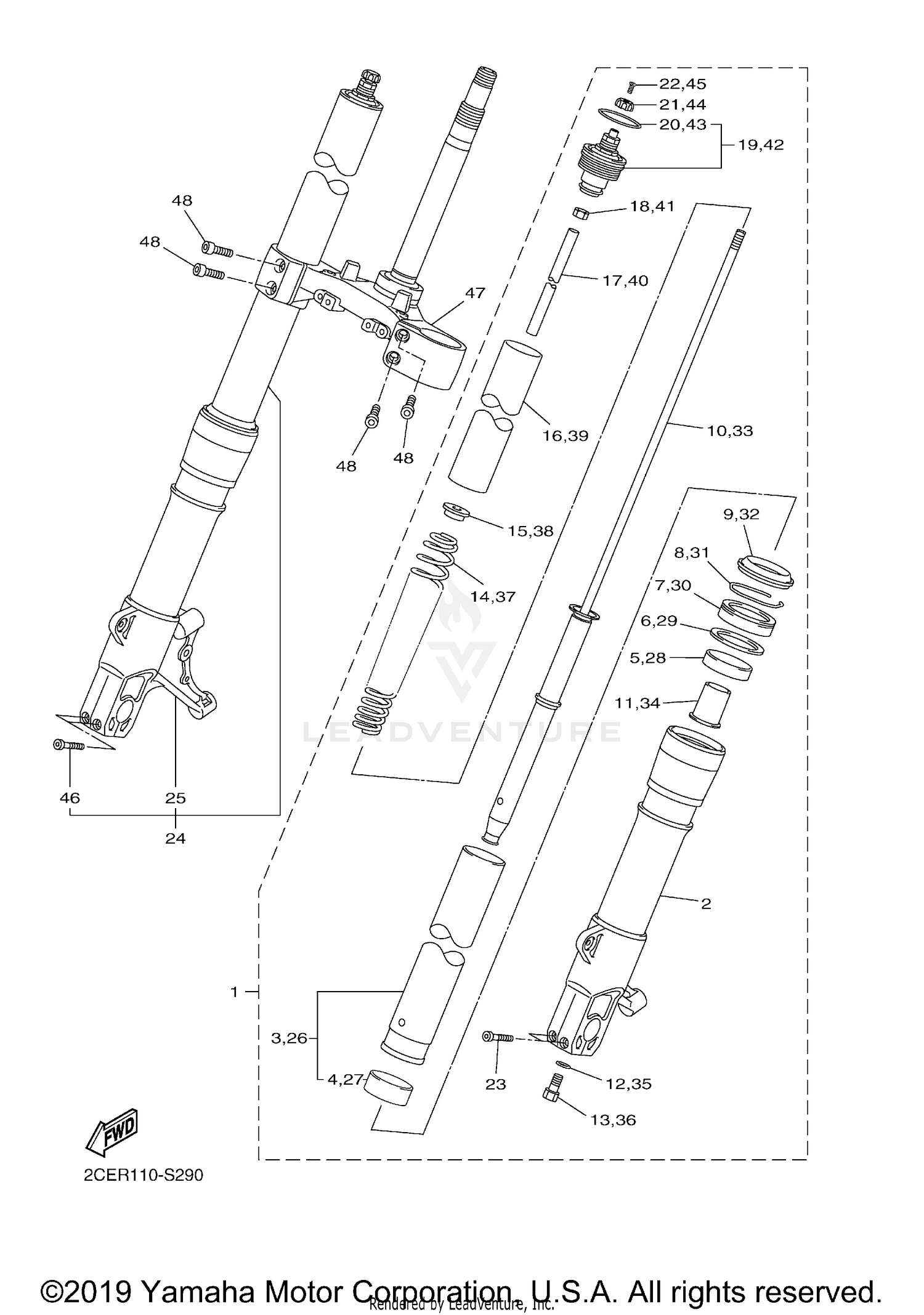

| Ref | Part Number | Description |
|---|
| 1 |
2CE-23102-10-00 |
FRONT FORK ASSY (L.H) Price: $1,236.99 |
| 2 |
2CE-23106-10-00 |
OUTER TUBE COMP. Price: $585.99 |
| 3 |
2CE-23110-00-00 |
INNER TUBE COMP. 1 Price: $426.99 |
| 4 |
2S3-23135-00-00 |
METAL, SLIDE 2 Price: $37.99 |
| 5 |
2S3-23125-00-00 |
METAL, SLIDE 1 Price: $55.99 |
| 6 |
2S3-23115-00-00 |
SEAT 1 Price: $17.99 |
| 7 |
2S3-23145-00-00 |
OIL SEAL Price: $17.99 |
| 8 |
2CE-23156-00-00 |
RING, SNAP Price: $5.99 |
| 9 |
2S3-23144-00-00 |
SEAL, DUST Price: $19.99 |
| 10 |
2CE-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $458.99 |
| 11 |
5UX-23173-00-00 |
SPINDLE, TAPER Price: $34.99 |
| 13 |
5UX-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD Price: $24.99 |
| 14 |
2CE-23141-00-00 |
SPRING, FRONT FORK Price: $47.99 |
| 15 |
2CE-23142-00-00 |
SEAT, SPRING UPPER Price: $21.99 |
| 16 |
2CE-23104-00-00 |
REINF. COMP. Price: $32.99 |
| 17 |
2CE-23118-00-00 |
SPACER Price: $14.49 |
| 18 |
5UX-23778-00-00 |
NUT Price: $4.00 |
| 19 |
2CE-23111-00-00 |
BOLT, CAP Price: $245.99 |
| 20 |
CS4-43862-40-00 |
O-RING Price: $8.49 |
| 21 |
5JW-2319W-00-00 |
KNOB (TEN) Price: $11.99 |
| 22 |
1MC-23119-10-00 |
SCREW Price: $2.60 |
| 23 |
91314-08045-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 24 |
2CE-23103-11-00 |
FRONT FORK ASSY (R.H) This part replaces 2CE-23103-10-00. Price: $1,113.99 |
| 25 |
2CE-23107-10-00 |
OUTER TUBE COMP. Price: $585.99 |
| 26 |
2CE-23110-00-00 |
INNER TUBE COMP. 1 Price: $426.99 |
| 27 |
2S3-23135-00-00 |
METAL, SLIDE 2 Price: $37.99 |
| 28 |
2S3-23125-00-00 |
METAL, SLIDE 1 Price: $55.99 |
| 29 |
2S3-23115-00-00 |
SEAT 1 Price: $17.99 |
| 30 |
2S3-23145-00-00 |
OIL SEAL Price: $17.99 |
| 31 |
2CE-23156-00-00 |
RING, SNAP Price: $5.99 |
| 32 |
2S3-23144-00-00 |
SEAL, DUST Price: $19.99 |
| 33 |
2CE-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $458.99 |
| 34 |
5UX-23173-00-00 |
SPINDLE, TAPER Price: $34.99 |
| 36 |
5UX-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD Price: $24.99 |
| 37 |
2CE-23141-00-00 |
SPRING, FRONT FORK Price: $47.99 |
| 38 |
2CE-23142-00-00 |
SEAT, SPRING UPPER Price: $21.99 |
| 39 |
2CE-23104-00-00 |
REINF. COMP. Price: $32.99 |
| 40 |
2CE-23118-00-00 |
SPACER Price: $14.49 |
| 41 |
5UX-23778-00-00 |
NUT Price: $4.00 |
| 42 |
2CE-23111-00-00 |
BOLT, CAP Price: $245.99 |
| 43 |
CS4-43862-40-00 |
O-RING Price: $8.49 |
| 44 |
5JW-2319W-00-00 |
KNOB (TEN) Price: $11.99 |
| 45 |
1MC-23119-10-00 |
SCREW Price: $2.60 |
| 46 |
91314-08045-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 47 |
2CE-23340-00-00 |
UNDER BRACKET COMP. Price: $457.99 |
