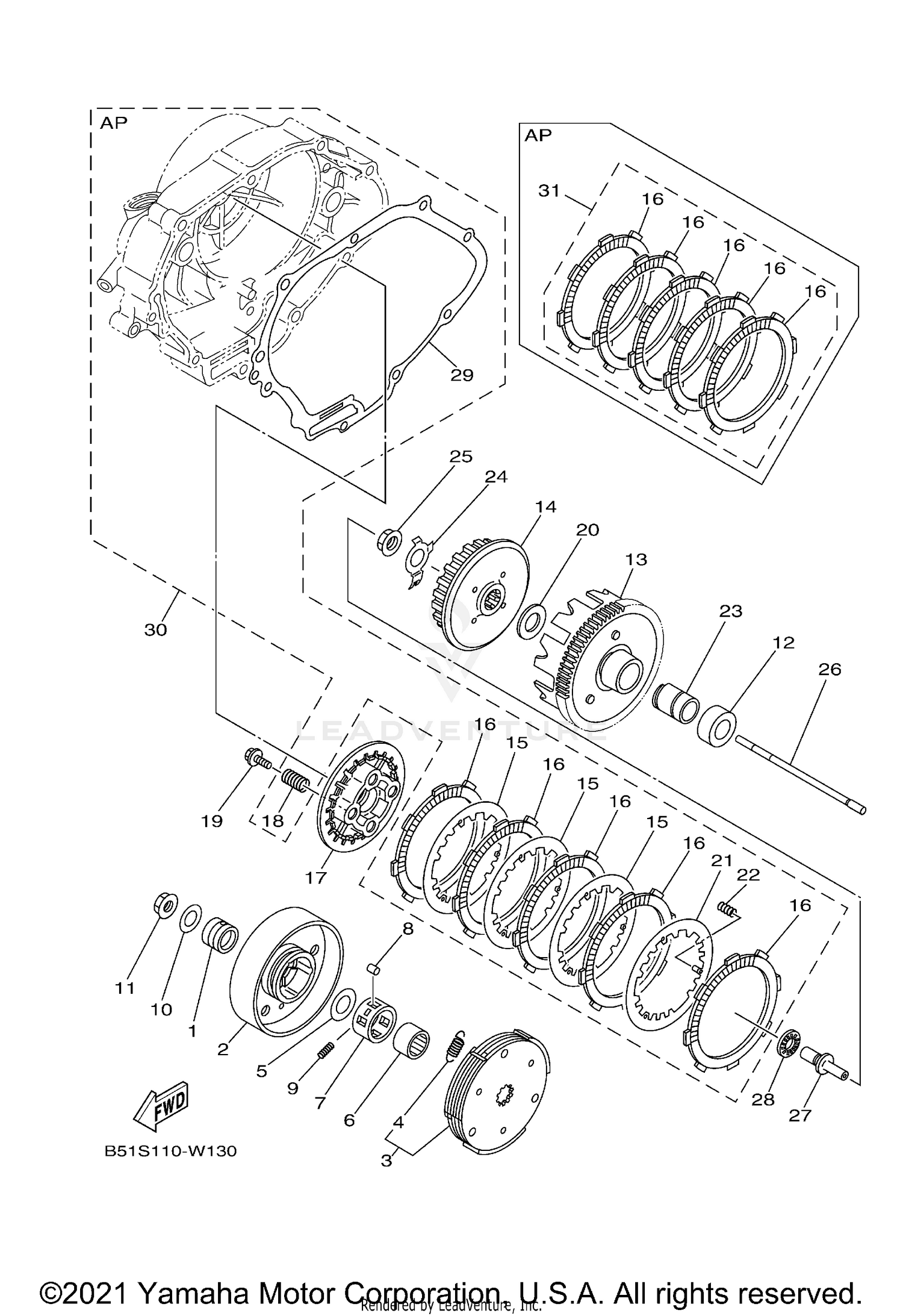

| Ref | Part Number | Description |
|---|
| 1 |
90387-16001-00 |
COLLAR This part replaces 90387-16803-00. Price: $39.99 |
| 2 |
2P2-E6611-00-00 |
CLUTCH HOUSING COMP. Price: $56.99 |
| 3 |
2P2-E6620-00-00 |
CLUTCH CARRIER ASSY Price: $74.99 |
| 4 |
2P2-E6626-00-00 |
SPRING, CLUTCH WEIGHT 1 Price: $1.10 |
| 5 |
90201-167P7-00 |
WASHER, PLATE Price: $10.49 |
| 6 |
4GL-16512-01-00 |
BOSS, CLUTCH HOUSING This part replaces 5LM-E6512-00-00. Price: $65.99 |
| 7 |
5D9-E6586-00-00 |
CAGE Price: $3.50 |
| 8 |
93606-10800-00 |
PIN, DOWEL Price: $3.80 |
| 9 |
90501-04800-00 |
SPRING, COMPRESSION Price: $2.65 |
| 10 |
90201-12019-00 |
WASHER, PLATE Price: $5.49 |
| 11 |
90179-12659-00 |
NUT Price: $9.49 |
| 12 |
90560-17384-00 |
SPACER Price: $17.49 |
| 13 |
2P2-E6150-00-00 |
PRIMARY DRIVEN GEAR COMP. Price: $79.99 |
| 14 |
2P2-E6371-00-00 |
BOSS, CLUTCH Price: $19.49 |
| 15 |
2P2-E6324-00-00 |
PLATE, CLUTCH 1 Price: $2.70 |
| 16 |
2P2-E6321-00-00 |
PLATE, FRICTION Price: $10.49 |
| 17 |
2P2-E6351-00-00 |
PLATE, PRESSURE 1 Price: $12.49 |
| 18 |
90501-203G2-00 |
SPRING, COMPRESSION Price: $4.20 |
| 19 |
90119-05001-00 |
BOLT, WITH WASHER This part replaces 90119-05827-00. Price: $3.50 |
| 20 |
4S9-E6154-10-00 |
PLATE,THRUST 1 This part replaces 90201-178J5-00. Price: $5.49 |
| 21 |
2P2-E6350-00-00 |
PRESSURE PLATE ASSY Price: $9.99 |
| 22 |
90501-050F1-00 |
SPRING, COMPRESSION Price: $5.49 |
| 23 |
90387-17004-00 |
COLLAR Price: $14.49 |
| 24 |
4GL-16135-00-00 |
WASHER, LOCK This part replaces 5TP-E6135-00-00. Price: $11.49 |
| 25 |
90179-14001-00 |
NUT Price: $10.49 |
| 26 |
4S9-E6357-00-00 |
ROD, PUSH 2 This part replaces 5LM-E6357-00-00. Price: $10.49 |
| 27 |
4S9-E6356-00-00 |
ROD, PUSH 1 This part replaces 5LM-E6356-01-00. Price: $32.99 |
| 28 |
93340-210Y0-00 |
BEARING Price: $8.99 |
| 29 |
4ST-E5461-11-00 |
GASKET, CRANKCASE COVER 2 Price: $14.49 |
