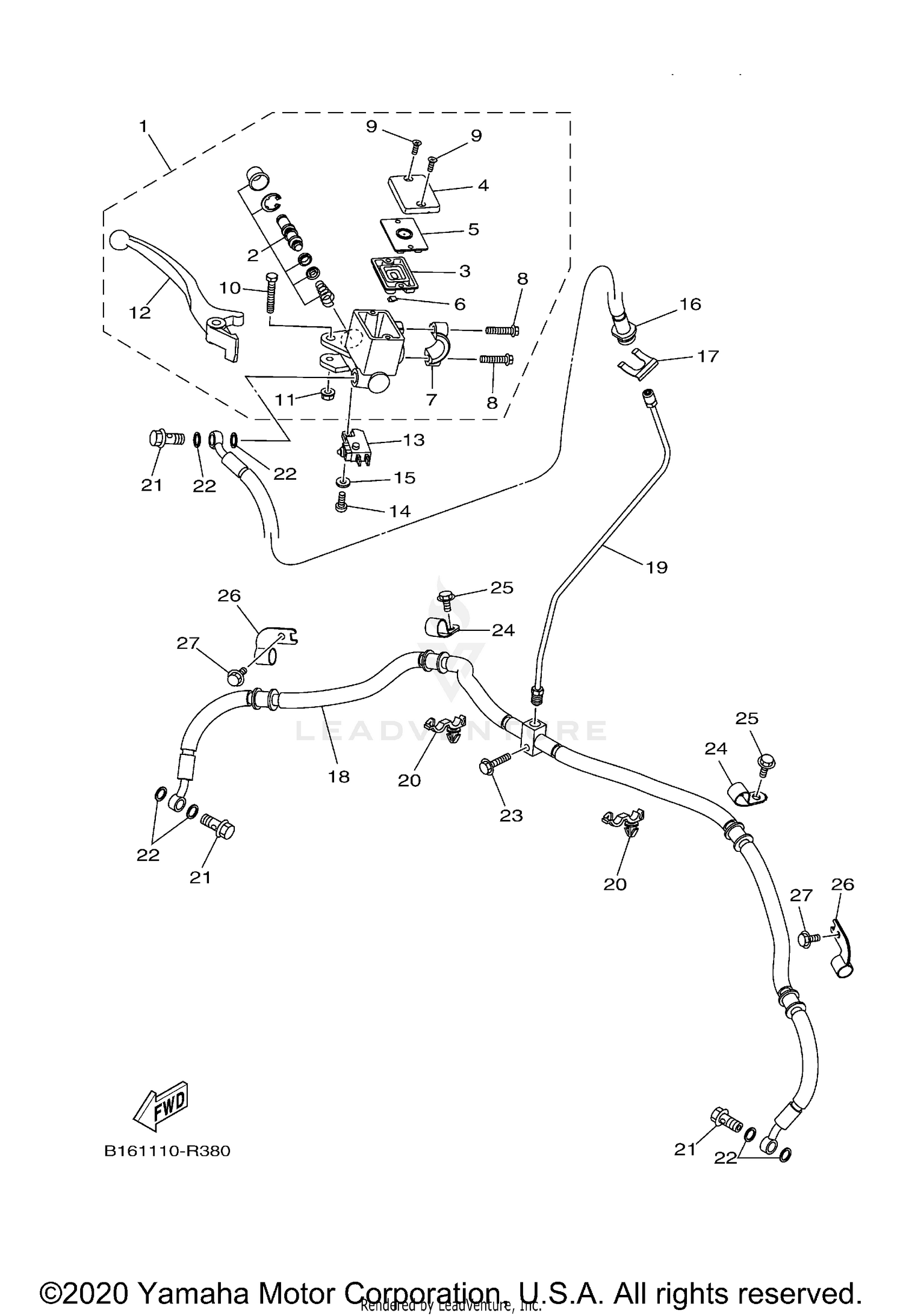

| Ref | Part Number | Description |
|---|
| 1 |
B16-F583T-01-00 |
MASTER CYLINDER ASSY This part replaces B16-F583T-00-00. Price: $83.99 |
| 2 |
B16-F5807-00-00 |
CYLINDER KIT, MASTER Price: $33.99 |
| 3 |
B16-F5854-00-00 |
DIAPHRAGM, RESERVOIR Price: $4.55 |
| 4 |
B16-F5852-00-00 |
CAP, RESERVOIR Price: $8.49 |
| 5 |
B16-F585B-00-00 |
PLATE, DIAPHRAGM Price: $6.49 |
| 6 |
B16-F5889-00-00 |
SEPARATOR Price: $0.75 |
| 7 |
B16-F5867-00-00 |
BRACKET, MASTER CYLINDER Price: $10.49 |
| 8 |
B16-F6332-00-00 |
BOLT Price: $5.49 |
| 9 |
98707-04012-00 |
SCREW, FLAT HEAD This part replaces 98702-04012-00. Price: $1.85 |
| 10 |
B16-F589F-10-00 |
BOLT, LEVER Price: $4.60 |
| 11 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 12 |
B16-F3922-00-00 |
LEVER, BRAKE Price: $31.99 |
| 13 |
1HP-83980-03-00 |
FRONT STOP SWITCH AS This part replaces 1HP-83980-01-00. Price: $34.99 |
| 14 |
98517-04012-00 |
SCREW,PANHEAD This part replaces 98502-04012-00. Price: $4.20 |
| 15 |
92990-04600-00 |
WASHER, PLATE This part replaces 92902-04600-00. Price: $0.99 |
| 16 |
B16-F5872-02-00 |
HOSE, BRAKE 1 This part replaces B16-F5872-01-00. Price: $22.99 |
| 17 |
2GU-25866-00-00 |
CIRCLIP Price: $10.99 |
| 18 |
1HP-F5873-01-00 |
HOSE, BRAKE 2 This part replaces 1HP-F5873-00-00. Price: $72.99 |
| 19 |
1HP-F5871-00-00 |
PIPE, BRAKE Price: $9.49 |
| 20 |
90464-20010-00 |
CLAMP Price: $3.50 |
| 21 |
90401-10015-00 |
BOLT, UNION Price: $12.49 |
| 22 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 23 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95812-06025-00. Price: $1.75 |
| 24 |
3B4-25886-00-00 |
HOLDER, BRAKE HOSE Price: $7.49 |
| 25 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95812-06012-00. Price: $1.95 |
| 26 |
2PG-25876-00-00 |
HOLDER, BRAKE HOSE 2 Price: $3.55 |
