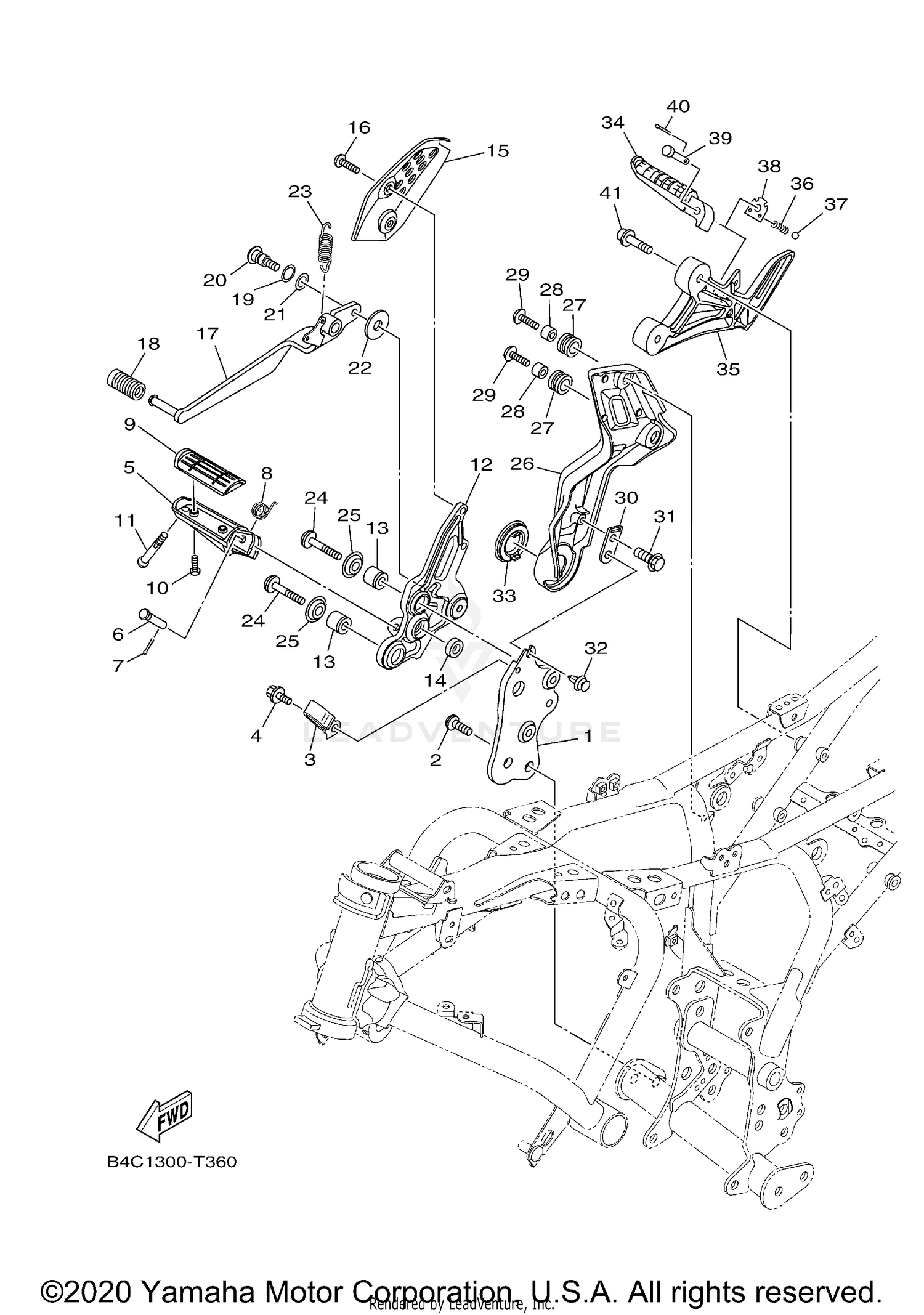

| Ref | Part Number | Description |
|---|
| 1 |
B34-274A4-00-00 |
BRACKET, ADAPTER 2 Price: $83.99 |
| 2 |
90111-10006-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-10060-00. Price: $5.99 |
| 3 |
90465-08045-00 |
CLAMP Price: $13.49 |
| 4 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 5 |
1WS-27461-00-00 |
FOOTREST Price: $39.99 |
| 6 |
91702-08040-00 |
PIN, CLEVIS This part replaces 91701-08040-00. Price: $4.85 |
| 7 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 8 |
90508-18056-00 |
SPRING, TORSION Price: $2.55 |
| 9 |
3YX-27413-00-00 |
COVER, FOOTREST Price: $32.99 |
| 10 |
98580-05014-00 |
SCREW, PAN HEAD This part replaces 90157-05025-00. Price: $6.99 |
| 11 |
90109-08225-00 |
BOLT This part replaces 90109-086F8-00. Price: $6.49 |
| 12 |
1WS-27443-10-00 |
BRACKET 3 Price: $93.99 |
| 13 |
36Y-27414-00-00 |
DAMPER, FOOTREST Price: $30.99 |
| 14 |
5VX-27114-00-00 |
STOPPER, MAIN STAND Price: $7.49 |
| 15 |
1WS-27446-10-00 |
PLATE 2 Price: $47.99 |
| 16 |
90111-08022-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.20 |
| 17 |
B4C-27211-00-00 |
PEDAL, BRAKE Price: $62.99 |
| 18 |
1WS-18113-00-00 |
COVER, SHIFT PEDAL Price: $5.99 |
| 19 |
90206-12074-00 |
WASHER, WAVE Price: $10.49 |
| 20 |
4BP-27434-11-00 |
BOLT This part replaces 4BP-27434-01-00. Price: $4.65 |
| 21 |
90201-12051-00 |
WASHER, PLATE Price: $8.49 |
| 22 |
90201-08053-00 |
WASHER, PLATE Price: $6.49 |
| 23 |
90506-23008-00 |
SPRING, TENSION Price: $8.49 |
| 24 |
90110-08071-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 25 |
90209-08295-00 |
WASHER Price: $9.49 |
| 26 |
1WS-27463-11-00 |
COVER 2 This part replaces 1WS-27463-10-00. Price: $76.99 |
| 27 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 28 |
90387-06057-00 |
COLLAR Price: $9.49 |
| 29 |
90149-06105-00 |
SCREW Price: $6.49 |
| 30 |
1WS-27425-00-00 |
BRACKET, FOOTREST 2 Price: $3.10 |
| 31 |
95D02-06010-00 |
BOLT, FLANGE DEEP RECESS Price: $0.45 |
| 32 |
90269-08008-00 |
RIVET Price: $2.35 |
| 34 |
3VR-27441-02-00 |
FOOTREST, REAR 2 Price: $32.99 |
| 35 |
1WS-2742L-02-00 |
BRACKET 5 This part replaces 1WS-2742L-01-00. Price: $95.99 |
| 36 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 37 |
93501-04011-00 |
BALL Price: $9.49 |
| 38 |
5VX-27437-00-00 |
WASHER, SPECIAL Price: $8.49 |
| 39 |
91702-08040-00 |
PIN, CLEVIS Price: $4.85 |
| 40 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
