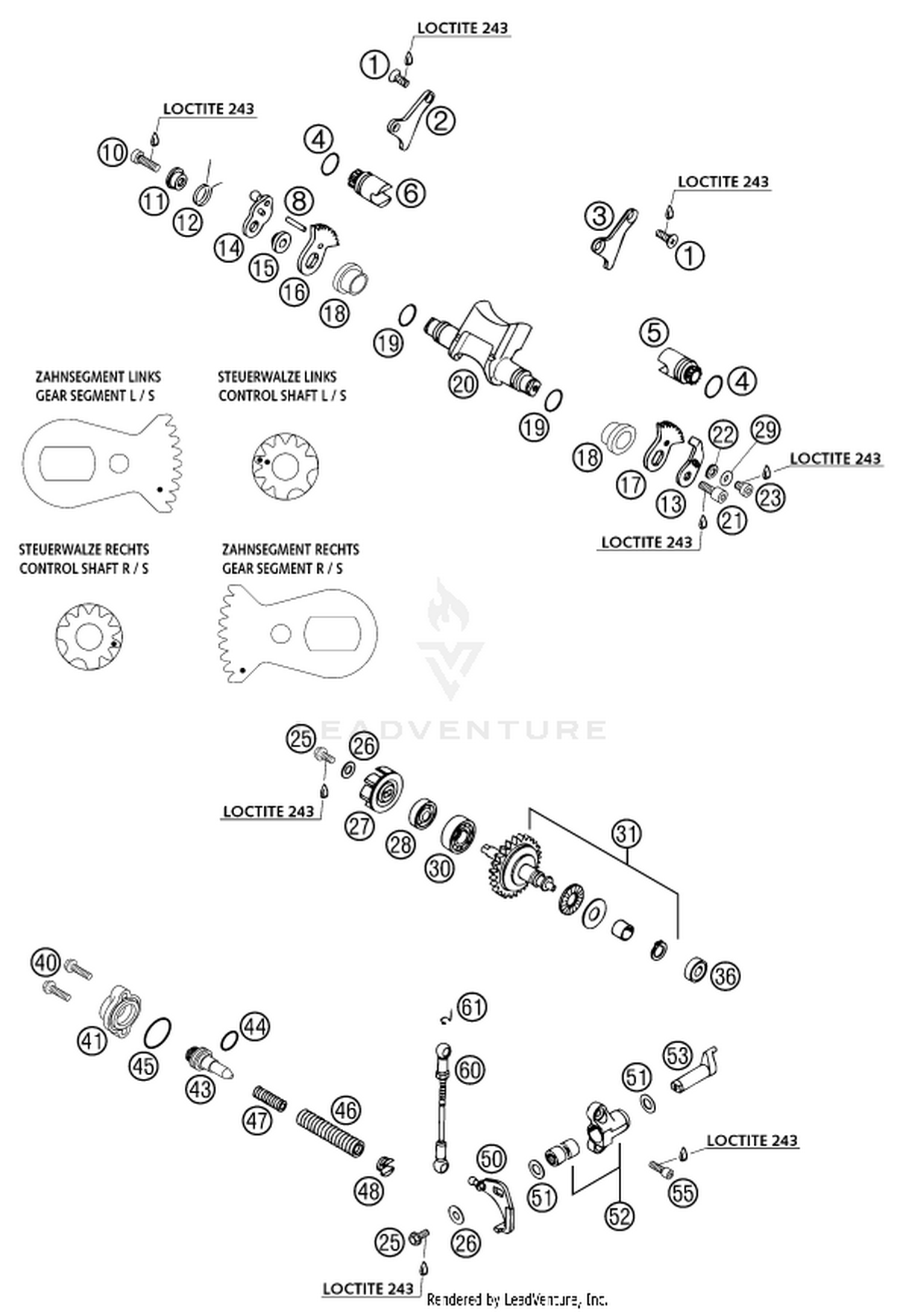

37 EXHAUST CONTROL

37 EXHAUST CONTROL

Parts (32)

RefPart NumberDescription
1 0965050103 FLAT HEAD SCREW DIN0965-M 5X10 Price: Call Us
4 0770160021 O-ring 16X2 VITON 75 Price: Call Us
8 0007050160 CYLINDER PIN DIN 7-5X16MM (M6) Price: Call Us
10 0912060203 AH SCREW DIN0912-M 6X20 Price: Call Us
11 54637067000 SPRING SLEEVE Price: Call Us
12 54637066000 OVERLOAD SPRING Price: Call Us
13 54637085300 RETAIN.PLATE CONTROL FLAP '92 Price: Call Us
14 54637065000 CONTROL LEVER WITH BALL TYPE Price: Call Us
15 54637068100 BUSHING SLEEVE Price: Call Us
18 54737019000 BEAR. SLEEVE F.CONTROL FLAP'97 Price: Call Us
19 0770150151 O-RING 15,00X1,50 VITON Price: Call Us
21 0912060163 AH SCREW DIN0912-M 6X16 Price: Call Us
22 54637056100 WASHER 6,5X11X2 This part replaces 54637056000. Price: Call Us
23 0984060063 AH SCREW DIN7984-M 6X 6 Not Available Price:
25 0025050126 HH collar screw M5x12 TX30 This part replaces 0015050123. Price: Call Us
26 0349000050 WASHER DIN7349-5X15X2 Price: Call Us
27 54635005000 WATER PUMP WHEEL Price: Call Us
28 0760082472 SHAFT SEAL RING 8X24X7 A DUO Price: Call Us
30 0625160020 BALL BEARING 16002 C3 This part replaces 0625160026. Price: Call Us
31 54637050344 CENTRIFUGAL TIMER CPL. Price: Call Us
36 54637098000 GROOVED BALL BEAR. 626.2RS1.C3 Not Available Price:
40 0025050206 HH collar screw M5x20 TX30 This part replaces 0015050203. Price: Call Us
41 55537035000 Closing cover This part replaces 54637070100. Price: Call Us
43 54837075200 Spring thrust bearing This part replaces 54637075100. Price: Call Us
44 0770021120 O-RING 12,37X2,62 NBR70 Price: Call Us
45 0770240020 O-RING 24,00X2,00 NBR70 Price: Call Us
48 54637071200 SPRING INSERT Price: Call Us
50 47237056100 Power valve control lever This part replaces 54637055244. Price: Call Us
51 0988101610 SHIM WASHER DIN988 10X16X1 Price: Call Us
52 54637059244 BUSHING SUPPORT CPL. Price: Call Us
53 54637057200 CONTROL LEVER '91 Price: Call Us
55 0912050163 AH collar screw DIN 912 M5x16 Price: Call Us
