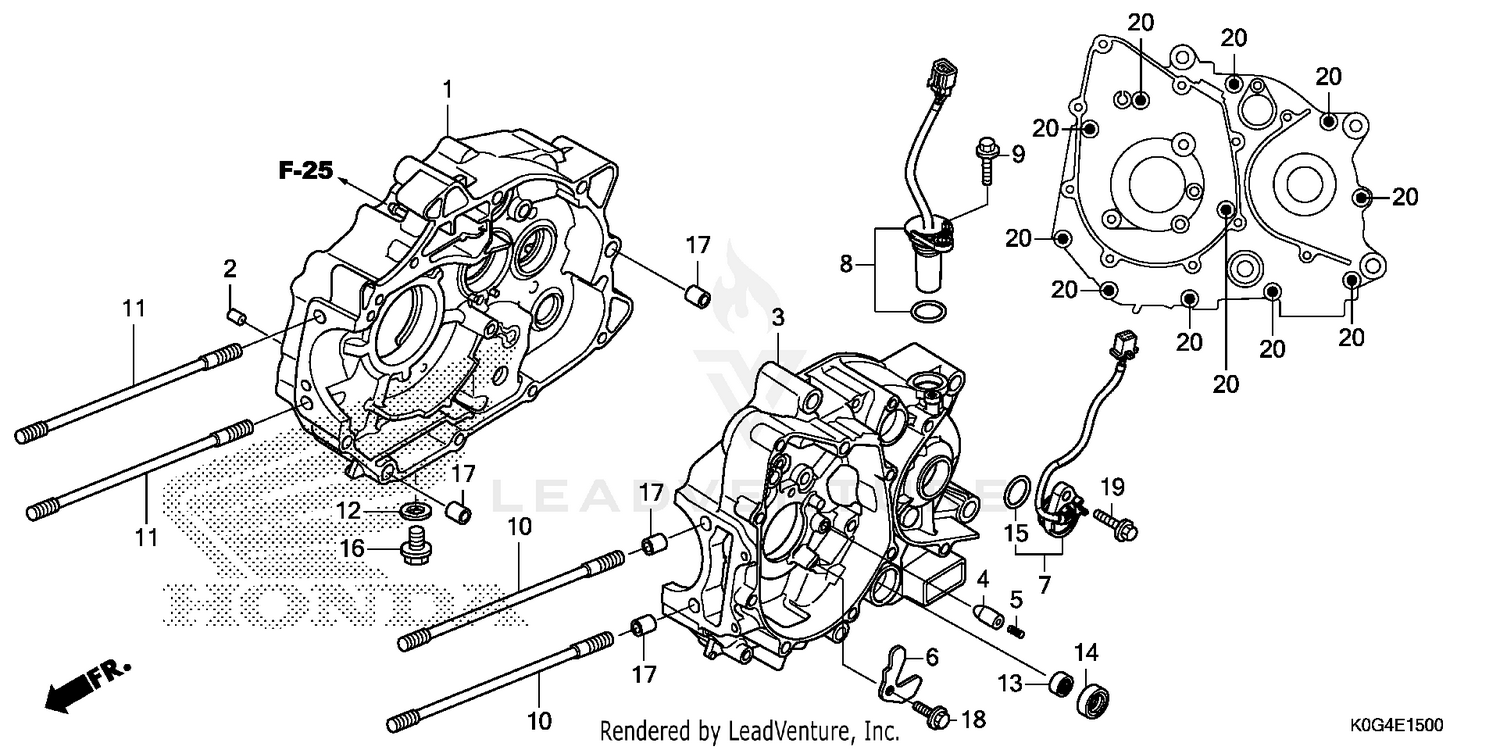

| Ref | Part Number | Description |
|---|
| 1 |
11100-K0G-900 |
CRANKCASE, R. Price: $107.67 |
| 2 |
11133-KYZ-900 |
JET, OIL (1.0MM) Price: $1.27 |
| 3 |
11200-K0G-900 |
CRANKCASE, L. Price: $117.49 |
| 4 |
11215-KYZ-900 |
PLUG, BEARING PUSH Price: $3.00 |
| 5 |
11216-KYZ-900 |
SPRING, BEARING PUSH Price: $0.51 |
| 6 |
11218-KYZ-900 |
PLATE, OIL STOPPER Price: $4.29 |
| 7 |
35759-K0G-961 |
CONTACT ASSY., CHANGE SWITCH Price: $34.96 |
| 8 |
37700-K0G-951 |
SENSOR ASSY., SPEED Price: $54.18 |
| 9 |
90004-GHB-640 |
BOLT, FLANGE (6X18) (NSHF) Price: $3.35 |
| 10 |
90031-KPH-900 |
BOLT, CYLINDER STUD (8X203) Price: $3.38 |
| 11 |
90031-KYZ-900 |
BOLT, STUD (8X196) Price: $3.45 |
| 12 |
90407-259-000 |
GASKET, DRAIN PETCOCK (12.5X20) Price: $3.35 |
| 13 |
91053-MFJ-D01 |
BEARING, NEEDLE (12X16X10) Price: $5.36 |
| 14 |
91208-KPH-901 |
OIL SEAL (11.6X24X10) (ARAI) Price: $1.71 |
| 15 |
91301-HP2-671 |
O-RING (21X2.4) Price: $2.65 |
| 16 |
92800-12000 |
BOLT, DRAIN PLUG (12MM) Price: $4.05 |
| 17 |
94301-10120 |
PIN, DOWEL (10X12) Price: $2.58 |
| 18 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 19 |
95701-06018-00 |
BOLT, FLANGE (6X18) BOLT, HEX. (6X18) Price: $1.70 |
