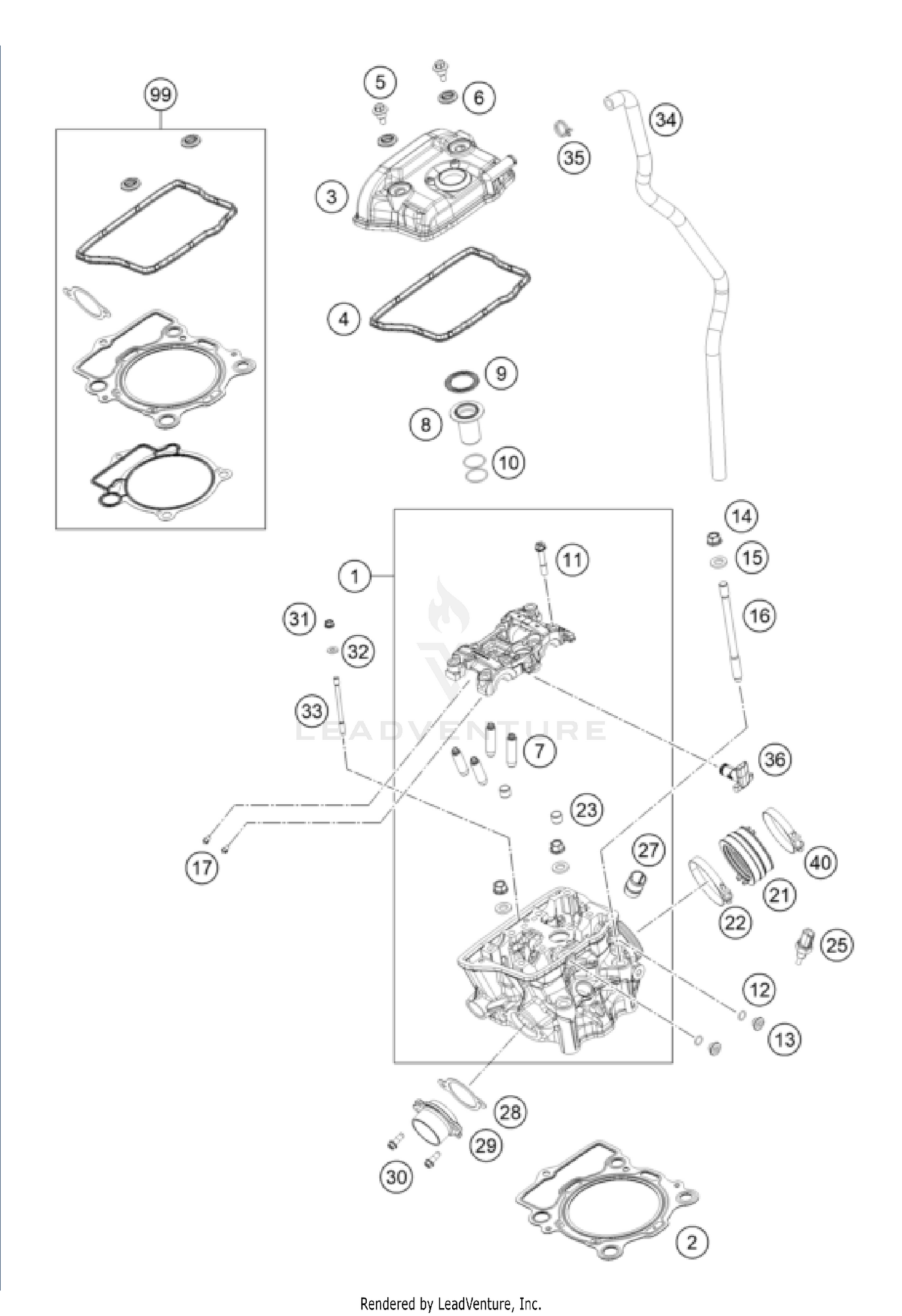

CYLINDER HEAD
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A46036020044 | Cylinder head cmpl. Price: $537.12 |
| 2 | A46030036072 | Cylinder head gasket Price: $60.27 |
| 3 | A46036052000C1 | Valve cover Price: $29.58 |
| 4 | A46036053000 | Valve cover seal Price: $4.99 |
| 5 | 77336054150 | VALVE COVER SCREW Price: $6.15 |
| 6 | 77036054250 | Sealing element This part replaces 77036054150. Price: $4.99 |
| 7 | 77136026001 | VALVE GUIDE OUTLET Price: $32.77 |
| 8 | A46036075000 | Spark plug shaft insert Price: $12.53 |
| 9 | 77336053050 | GASKET SPARK-PLUG SHAFT Price: $6.92 |
| 10 | 07702300151 | O-ring 23x1.5 Viton Price: $6.15 |
| 11 | 0000150703800 | Collar screw M7x1x38 Price: $1.99 |
| 12 | 07700900151 | O-RING 9x1,5 V80 SH This part replaces 0770090015. Price: $2.99 |
| 13 | 77236080000 | SCREW PLUG This part replaces 77236080100. Price: $7.80 |
| 14 | 77336088210 | COLLAR NUT M10X1,25 SW13 Price: $2.99 |
| 16 | 0900000814500 | Stud M10x1,25 Price: $4.99 |
| 22 | 61036047000 | HOSE CLAMP GEMI 63MM 05 Price: $8.90 |
| 27 | 58030010200 | SCREW IN NOZZLE M20X1,5 Price: $10.44 |
| 28 | A46036041000 | Exhaust pipe flange gasket Price: $7.14 |
| 29 | A46036039000 | Engine flange Price: $24.19 |
| 30 | 0025060166S | HH collar screw M6x16 TX30 SL Price: $2.99 |
| 31 | 77336088106 | COLLAR NUT M6X1 SW8 Price: $14.84 |
| 32 | 0125060003 | WASHER DIN0125-A 6,4 Price: $1.99 |
| 33 | 0900000607900 | Stud M6 Price: $2.99 |
| 34 | 79030087000 | ENGINE BREATHER TUBE Price: $37.17 |
| 35 | 58431082300 | CLAMP YDNAC 10173 (18MM) Price: $2.99 |
| 36 | A46036081000 | Angle piece, engine breather Price: $7.80 |
| 40 | 77236048000 | HOSE CLAMP GEMI 58MM Price: $14.18 |
