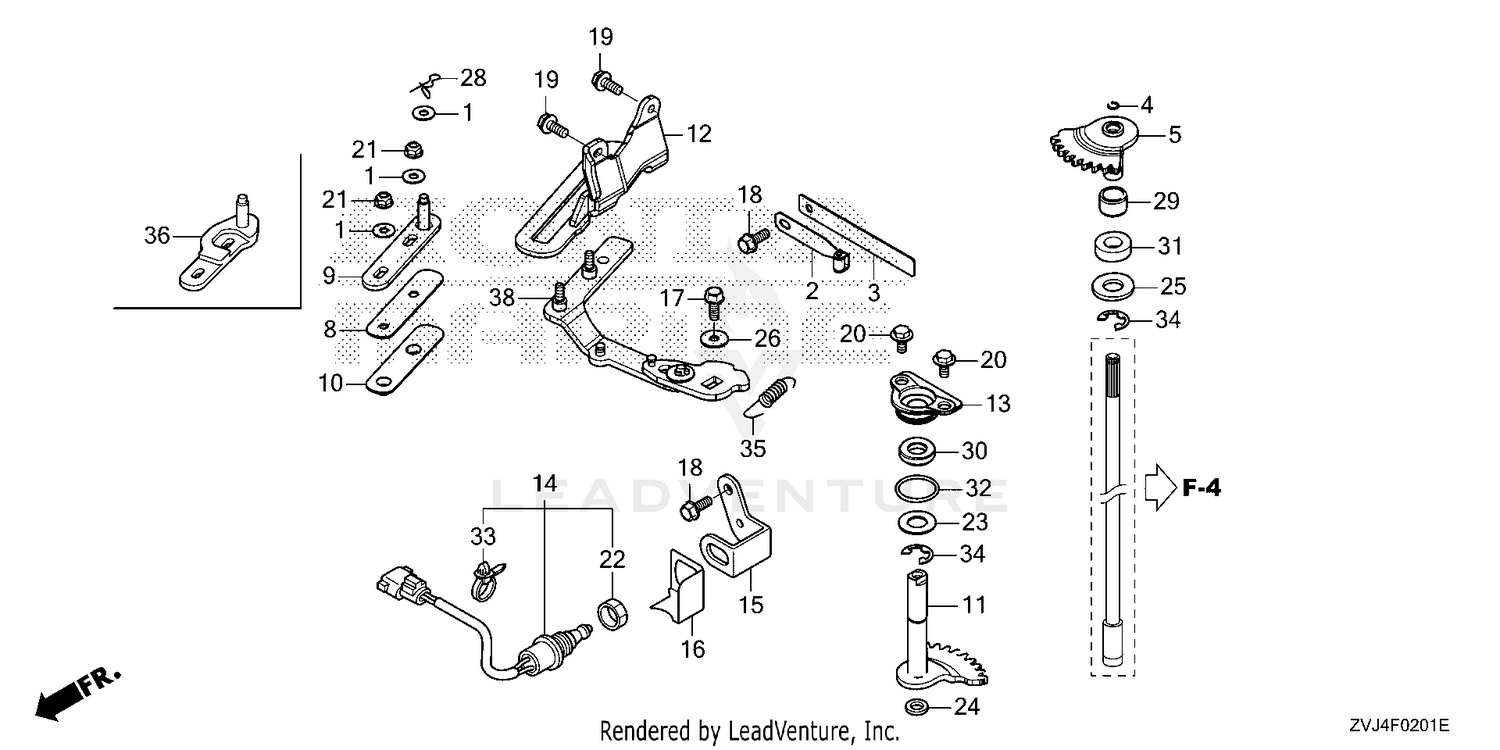

| Ref | Part Number | Description |
|---|
| 1 |
17936-921-000 |
WASHER, PIVOT Price: $1.64 |
| 2 |
24210-ZVL-000 |
SPRING, CLICK Price: $11.00 |
| 3 |
24221-ZY3-000 |
SPRING, CLICK ASSIST Price: $18.08 |
| 4 |
24327-ZW1-000 |
RING, STOPPER Price: $2.32 |
| 5 |
24610-ZY3-A00 |
SHAFT, SHIFT (A) Price: $113.76 |
| 8 |
24614-ZVL-000 |
PLATE, SHIFT PIVOT Price: $4.76 |
| 10 |
24618-ZVL-000 |
PIVOT, SHIFT SLIDE Price: $6.70 |
| 11 |
24620-ZY3-000 |
SHAFT, SHIFT (B) Price: $118.06 |
| 12 |
24627-ZVL-010 |
GUIDE, SHIFT LINK Price: $110.68 |
| 13 |
24629-ZW1-000 |
HOLDER, SEAL Price: $29.30 |
| 14 |
35470-ZX2-013 |
SWITCH ASSY., NEUTRAL Price: $58.92 |
| 15 |
35476-ZY3-010 |
BRACKET, NEUTRAL SWITCH Price: $30.88 |
| 16 |
35477-ZVL-000 |
COVER, NEUTRAL SWITCH Price: $4.14 |
| 17 |
90017-ZZ5-M01 |
BOLT, FLANGE (6X16) Price: $1.70 |
| 18 |
90021-ZZ5-M01 |
BOLT, FLANGE (6X14) Price: $1.56 |
| 19 |
90026-ZY9-M01 |
BOLT, FLANGE (8X20) Price: $2.04 |
| 21 |
90205-ZY1-000 |
NUT, SELF-LOCK (6MM) Price: $6.52 |
| 22 |
90302-ZV5-003 |
NUT, HEX. (20MM) Use up to Frame SN 1300359. Price: $7.22 |
| 23 |
90402-HA0-000 |
WASHER, THRUST (14MM) Price: $5.20 |
| 24 |
90428-958-000 |
WASHER B, THRUST (14MM) Price: $6.44 |
| 25 |
90508-ZV7-000 |
WASHER Price: $9.04 |
| 26 |
90508-ZZ5-M01 |
WASHER, PLAIN (6MM) Price: $2.48 |
| 28 |
90705-SD2-931 |
PIN, SNAP (6MM) Price: $5.22 |
| 29 |
91152-ZY3-003 |
RING (INNER) (15X20X13) Price: $16.48 |
| 30 |
91251-ZW5-003 |
OIL SEAL (14X26X6) Price: $5.28 |
| 31 |
91255-ZY3-003 |
SEAL, WATER (14X26X8) Price: $9.92 |
| 32 |
91302-PF0-003 |
O-RING (26.9X2.4) (NOK) Price: $4.30 |
| 33 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.98 |
| 34 |
94540-12029 |
E-RING (12MM) Price: $10.98 |
| 35 |
24639-ZVL-000 |
SPRING, GEARSHIFT ARM Price: $3.84 |
| 36 |
24617-ZVL-010 |
ROD COMP Price: $53.82 |
