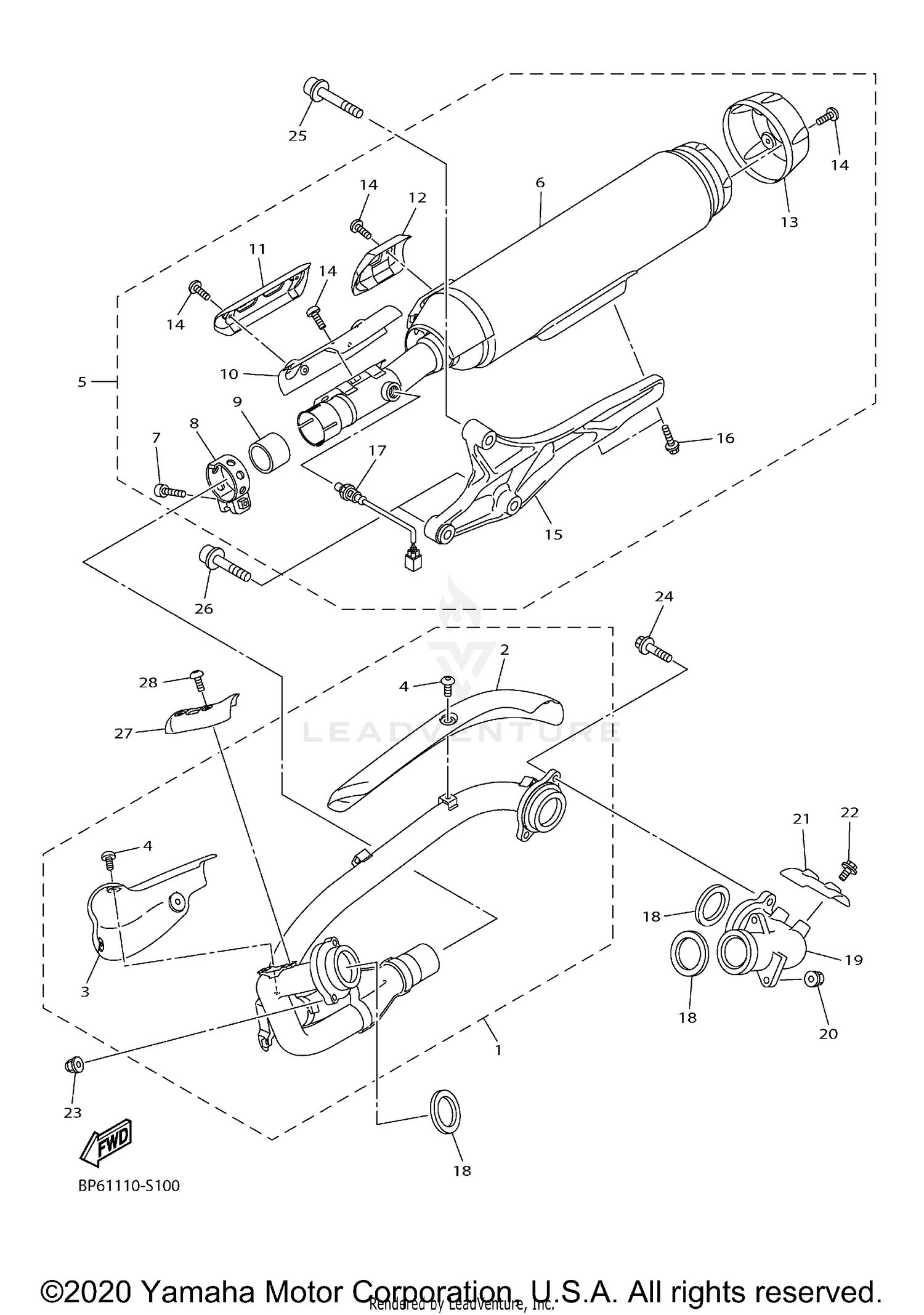

| Ref | Part Number | Description |
|---|
| 1 |
1TP-14610-10-00 |
EXHAUST PIPE ASSY 1 Price: $662.99 |
| 2 |
1TP-1465T-01-00 |
PLATE, PROTECTOR 2 Price: $199.99 |
| 3 |
1TP-1465U-00-00 |
PLATE, PROTECTOR 3 Price: $159.99 |
| 4 |
90111-06148-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06147-00. Price: $2.90 |
| 5 |
1TP-14710-03-00 |
MUFFLER ASSY 1 Price: $1,477.99 |
| 6 |
1TP-14711-02-00 |
MUFFLER 1 Price: $911.99 |
| 7 |
91314-08040-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 8 |
5S7-14715-00-00 |
BAND, MUFFLER Price: $60.99 |
| 9 |
5YU-14755-00-00 |
GASKET, SILENCER Price: $33.99 |
| 10 |
1TP-14728-00-00 |
PROTECTOR, MUFFLER 2 Price: $133.99 |
| 11 |
1TP-14738-00-00 |
PROTECTOR, MUFFLER 3 Price: $100.99 |
| 12 |
1TP-14748-00-00 |
PROTECTOR, MUFFLER 4 Price: $150.99 |
| 13 |
1TP-14799-01-00 |
CAP Price: $127.99 |
| 14 |
90111-06148-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06147-00. Price: $2.90 |
| 15 |
1TP-14772-00-00 |
STAY, MUFFLER 2 Price: $142.99 |
| 16 |
95814-10025-00 |
BOLT, FLANGE Price: $9.49 |
| 17 |
5D1-8592A-00-00 |
SENSOR, OXYGEN Price: $304.99 |
| 18 |
3EG-14613-00-00 |
GASKET, EXHAUST PIPE Price: $25.99 |
| 19 |
1TP-14615-00-00 |
JOINT, EXHAUST 1 Price: $263.99 |
| 20 |
90176-08012-00 |
NUT, CROWN Price: $3.55 |
| 21 |
1TP-1468W-00-00 |
PLATE, SILENCER 3 Price: $12.49 |
| 22 |
95880-06010-00 |
BOLT, FLANGE Price: $4.15 |
| 23 |
90176-08006-00 |
NUT, CROWN Price: $3.80 |
| 24 |
90105-08251-00 |
BOLT, FLANGE Price: $3.85 |
| 25 |
90110-10042-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 26 |
90110-10038-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 27 |
1TP-1465R-01-00 |
PLATE, PROTECTOR 1 Price: $65.99 |
