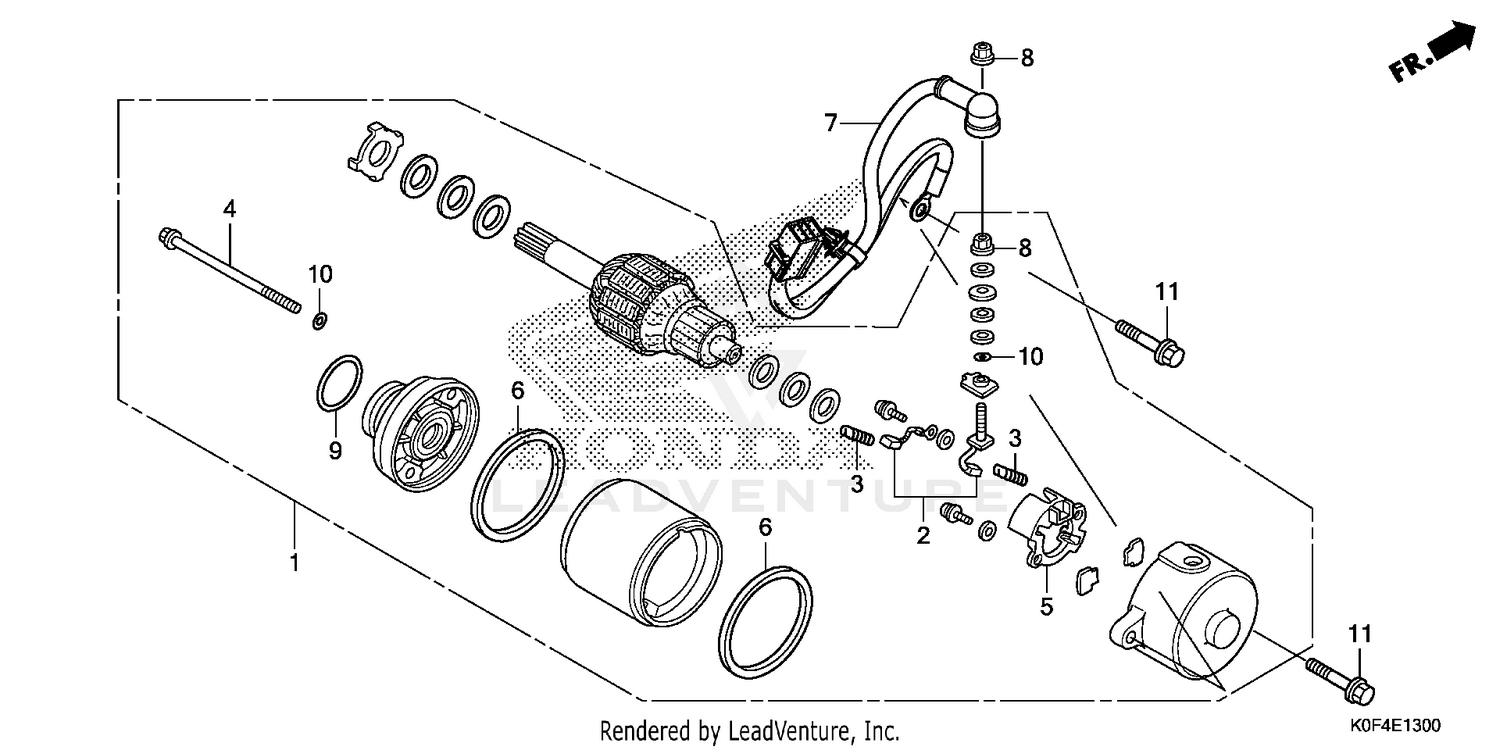

STARTER MOTOR
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31200-KPW-901 | STARTER MOTOR ASSY. (MITSUBA) Price: $208.76 |
| 2 | 31201-KVS-J01 | TERMINAL SET, BRUSH Price: $13.69 |
| 3 | 31204-KG8-004 | SPRING, CARBON BRUSH Price: $4.42 |
| 4 | 31205-KPW-901 | BOLT, SETTING Price: $2.95 |
| 5 | 31206-KPW-901 | HOLDER, BRUSH Price: $2.53 |
| 6 | 31207-MBE-008 | RING Price: $4.89 |
| 7 | 32410-K0F-T00 | CABLE, STARTER MOTOR Price: $13.71 |
| 8 | 90071-MB0-000 | NUT-WASHER (6MM) Price: $2.36 |
| 9 | 91312-MG7-003 | O-RING (24.4X3.1) This part replaces 91309-425-003. Price: $7.98 |
| 10 | 91320-MB0-000 | O-RING (Honda Code 1292184) Price: $2.76 |
