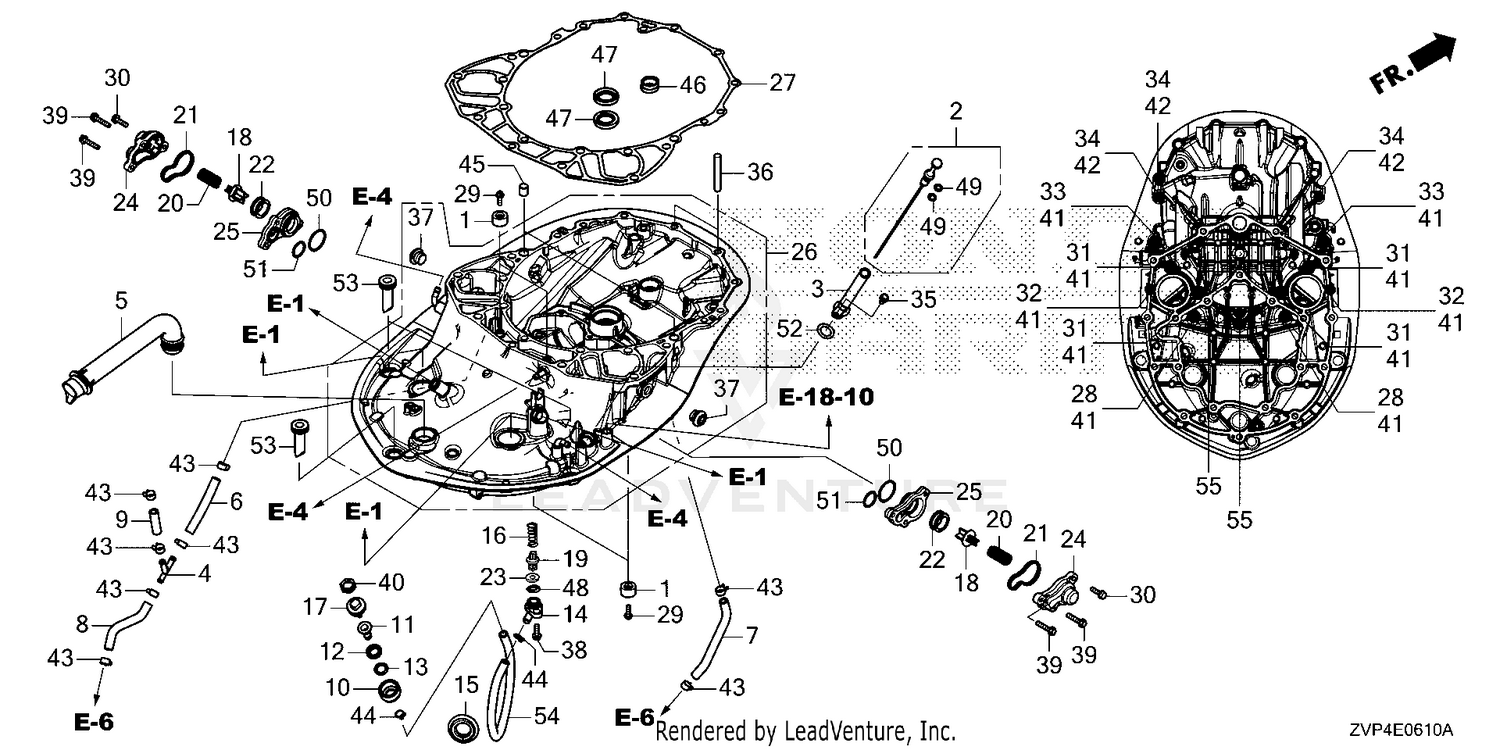

| Ref | Part Number | Description |
|---|
| 1 |
12155-ZV5-010 |
METAL, ANODE Price: $13.06 |
| 2 |
15655-ZVP-000 |
GAUGE COMP Price: $14.04 |
| 3 |
15665-ZVP-000 |
PIPE COMP, OIL LEVEL Price: $28.30 |
| 4 |
16959-MY1-000 |
JOINT, FUEL TUBE Price: $23.70 |
| 5 |
18211-ZVP-010 |
PORT, IDLE EX. Price: $34.30 |
| 6 |
19264-ZVP-000 |
TUBE, FLUSH VALVE Price: $8.02 |
| 7 |
19265-ZVP-000 |
TUBE Price: $9.52 |
| 8 |
19266-ZVP-000 |
TUBE A Price: $8.82 |
| 9 |
19267-ZVP-000 |
TUBE B Price: $3.82 |
| 10 |
19270-ZY3-000 |
NUT, WATER MOUTH Price: $17.84 |
| 11 |
19271-ZY3-000 |
JOINT, WATER HOSE Price: $12.12 |
| 12 |
19272-ZY3-000 |
SEAT, WATER MOUTH Price: $5.54 |
| 13 |
19274-ZVL-000 |
SEAT, WATER JOINT Price: $2.16 |
| 14 |
19277-ZY9-M01 |
COVER, FLUSH VLV Price: $15.30 |
| 15 |
19279-ZVP-000 |
GROMMET, WATER TUBE Price: $7.96 |
| 16 |
19279-ZW9-010 |
SEE PART DETAILS - PRI; SPRING, FLUSH VALVE Price: $2.16 |
| 17 |
19289-ZY3-000 |
CAP, WATER JOINT Price: $4.04 |
| 18 |
19291-ZW5-000 |
VALVE, RELIEF Price: $10.06 |
| 19 |
19291-ZW9-000 |
VALVE, FLUSH Price: $8.08 |
| 20 |
19292-ZW5-000 |
SPRING, RELIEF VALVE Price: $5.74 |
| 21 |
19296-ZVP-000 |
PKG Price: $4.72 |
| 22 |
19297-ZW5-000 |
GASKET, RELIEF VALVE Price: $8.62 |
| 23 |
19297-ZW9-010 |
PKG, FLUSH VALVE Price: $2.10 |
| 24 |
19297-ZY3-000 |
COVER, L. RELIEF VALVE Price: $22.98 |
| 25 |
19298-ZY3-000ZB |
SPACER, L. RELIEF VALVE *TGRAY* (GRAY) Price: $73.16 |
| 26 |
23170-ZVP-000 |
CASE COMP, MOUNT Price: $1,135.50 |
| 27 |
23172-ZVP-005 |
GSKT, MOUNT CASE Price: $141.56 |
| 28 |
90001-ZVP-000 |
BOLT, HEX. (12X100) Price: $17.50 |
| 29 |
90004-ZX2-000 |
BOLT, FLANGE (6X18) Price: $2.58 |
| 30 |
90009-ZW9-000 |
BOLT, FLANGE (6X23) Use from Frame SN 4800343. Price: $3.94 |
| 31 |
90010-ZVP-000 |
BOLT, HEX. (12X175) Price: $30.30 |
| 32 |
90011-ZVP-000 |
BOLT, HEX. (12X55) Price: $10.02 |
| 33 |
90011-ZY3-000 |
BOLT, HEX. (12X65) Price: $17.52 |
| 34 |
90015-ZY3-000 |
BOLT, HEX. (10X60) Price: $11.54 |
| 35 |
90021-ZZ5-M01 |
BOLT, FLANGE (6X14) Price: $1.56 |
| 36 |
90045-ZVP-000 |
BOLT 2, STUD (10X50) Price: $4.10 |
| 37 |
90083-ZVP-000 |
BOLT, SEALING (18MM) Price: $10.02 |
| 38 |
90105-ZW9-000 |
BOLT, FLANGE (6X20) (ENGINE NO.) Price: $3.94 |
| 39 |
90109-ZVA-000 |
BOLT-WASHER (6X35) Price: $4.02 |
| 40 |
90302-921-000 |
NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE) Price: $5.62 |
| 41 |
90559-ZV5-000 |
WASHER, PLAIN (12MM) Price: $4.04 |
| 42 |
90563-ZV5-000 |
WASHER, PLAIN (10MM) Price: $3.34 |
| 43 |
90601-ZVL-000 |
CLAMP D12.5, TUBE Price: $2.10 |
| 44 |
90651-ZY6-000 |
CLIP B1, TUBE Price: $5.08 |
| 45 |
90701-PW5-000 |
PIN, DOWEL (14X15) Price: $6.34 |
| 46 |
91001-ZY3-003 |
BEARING, NEEDLE (20X28X13) (SOLID) Price: $49.28 |
| 47 |
91204-ZV5-005 |
OIL SEAL (25X40X7) Price: $15.36 |
| 48 |
91303-800-000 |
O-RING (16MM) (Honda Code 0065094). Price: $2.80 |
| 49 |
91303-ZVL-000 |
O-RING (8.8X1.9) Price: $0.98 |
| 50 |
91305-ZY3-003 |
O-RING (33.5X2) Price: $3.74 |
| 51 |
91306-ZY3-003 |
O-RING (23.5X2) Price: $4.58 |
| 52 |
91309-ZVT-000 |
O-RING (15.5X3.5) Price: $1.32 |
| 53 |
91601-ZVP-000 |
GROMMET (1WAY) Price: $10.12 |
| 54 |
95001-80001-60M |
BULK HOSE, FUEL (8X1000) (95001-80001-(95001-80001-60M) Price: $34.78 |
