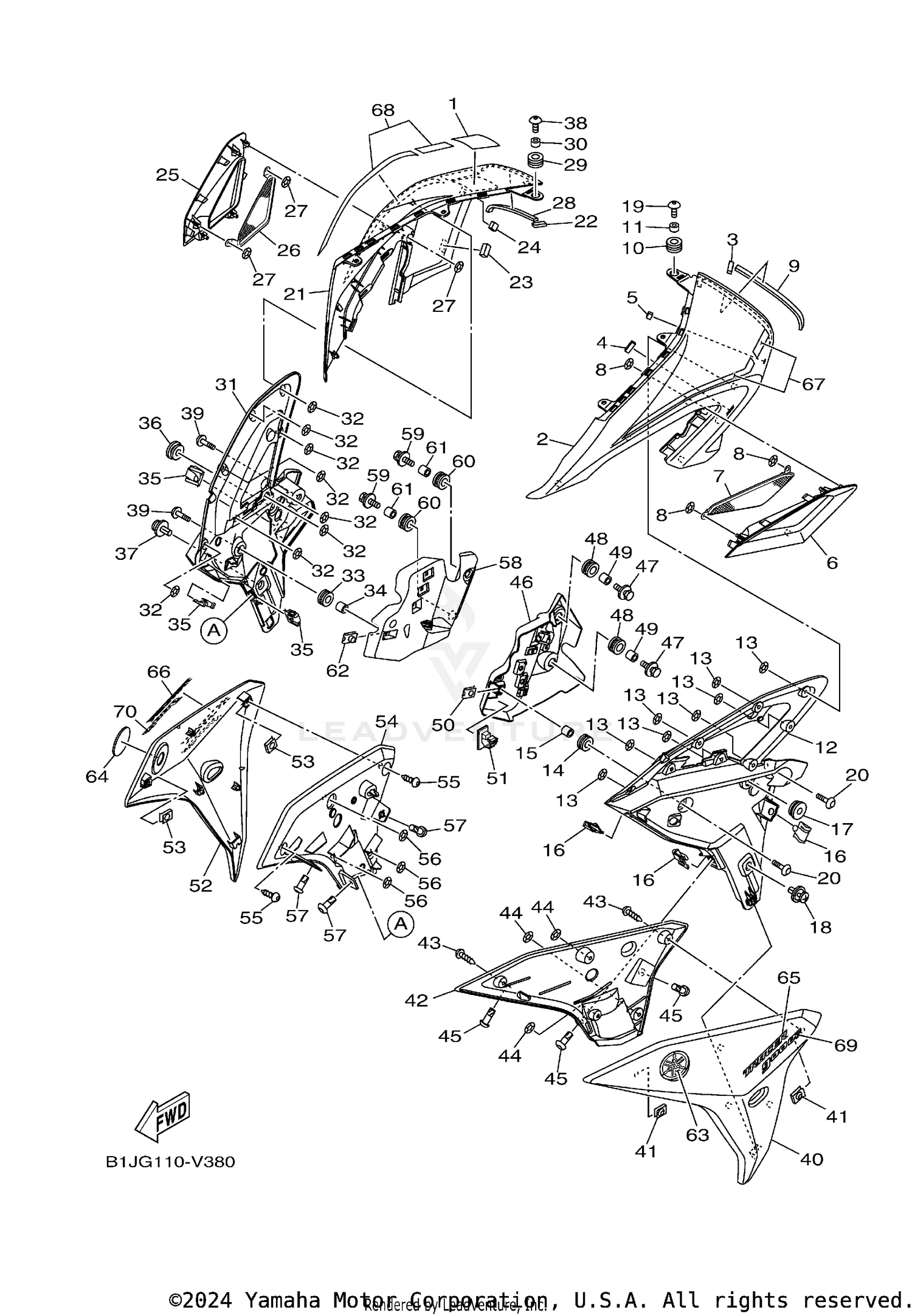

| Ref | Part Number | Description |
|---|
| 1 |
29P-2816R-01-00 |
LABEL, WARNING GENER This part replaces 29P-2816R-00-00. Price: $3.65 |
| 3 |
13S-28415-00-00 |
DAMPER 1 Price: $7.49 |
| 4 |
5B6-23445-00-00 |
DAMPER Price: $5.99 |
| 5 |
4D9-24763-00-00 |
PAD, SEAT 2 Price: $1.45 |
| 7 |
B5C-2837N-00-00 |
GRILL, AIR INTAKE 1 Price: $41.99 |
| 8 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 9 |
2C0-2174X-00-00 |
DAMPER Price: $2.50 |
| 10 |
90480-13018-00 |
GROMMET Price: $9.49 |
| 11 |
90387-0611W-00 |
COLLAR Price: $4.10 |
| 12 |
B5C-2836K-00-00 |
PANEL, INNER 1 Price: $200.99 |
| 13 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 14 |
90480-13018-00 |
GROMMET Price: $9.49 |
| 15 |
90387-0611W-00 |
COLLAR Price: $4.10 |
| 16 |
5PW-2177L-01-00 |
PLATE, SPRING Price: $7.49 |
| 17 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 18 |
90269-07076-00 |
RIVET Price: $8.49 |
| 19 |
90111-05007-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 20 |
90111-05026-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 22 |
13S-28415-00-00 |
DAMPER 1 Price: $7.49 |
| 23 |
5B6-23445-00-00 |
DAMPER Price: $5.99 |
| 24 |
4D9-24763-00-00 |
PAD, SEAT 2 Price: $1.45 |
| 26 |
B5C-2837R-00-00 |
GRILL, AIR INTAKE 2 Price: $41.99 |
| 27 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 28 |
2C0-2174X-00-00 |
DAMPER Price: $2.50 |
| 29 |
90480-13018-00 |
GROMMET Price: $9.49 |
| 30 |
90387-0611W-00 |
COLLAR Price: $4.10 |
| 31 |
B5C-2836L-00-00 |
PANEL, INNER 2 Price: $199.99 |
| 32 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 33 |
90480-13018-00 |
GROMMET Price: $9.49 |
| 34 |
90387-0611W-00 |
COLLAR Price: $4.10 |
| 35 |
5PW-2177L-01-00 |
PLATE, SPRING Price: $7.49 |
| 36 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 37 |
90269-07076-00 |
RIVET Price: $8.49 |
| 38 |
90111-05007-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 39 |
90111-05026-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 41 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 42 |
B5C-2837L-00-00 |
PANEL, CONSOLE 1 Price: $86.99 |
| 43 |
90167-05079-00 |
SCREW, TAPPING Price: $4.50 |
| 44 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 45 |
14B-28386-00-00 |
HEAD Price: $11.99 |
| 46 |
2PP-2836H-01-00 |
BRACKET 5 This part replaces 2PP-2836H-00-00. Price: $16.49 |
| 47 |
90119-06118-00 |
BOLT, WITH WASHER This part replaces 90119-06267-00. Price: $9.49 |
| 48 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 49 |
90387-06057-00 |
COLLAR Price: $9.49 |
| 50 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 51 |
90464-25160-00 |
CLAMP Price: $12.49 |
| 53 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 54 |
B5C-2837M-00-00 |
PANEL, CONSOLE 2 Price: $86.99 |
| 55 |
90167-05079-00 |
SCREW, TAPPING Price: $4.50 |
| 56 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 57 |
14B-28386-00-00 |
HEAD Price: $11.99 |
| 58 |
2PP-2836J-01-00 |
BRACKET 6 This part replaces 2PP-2836J-00-00. Price: $15.49 |
| 59 |
90119-06118-00 |
BOLT, WITH WASHER This part replaces 90119-06267-00. Price: $9.49 |
| 60 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 61 |
90387-06057-00 |
COLLAR Price: $9.49 |
| 62 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 63 |
1RC-2413B-02-00 |
EMBLEM This part replaces 1RC-2413B-01-00. Price: $22.99 |
| 64 |
1RC-2413B-02-00 |
EMBLEM This part replaces 1RC-2413B-01-00. Price: $22.99 |
| 65 |
2PP-2839B-00-00 |
EMBLEM 3D Price: $47.99 |
| 66 |
2PP-2839B-00-00 |
EMBLEM 3D Price: $47.99 |
| 67 |
B5C-28391-40-00 |
GRAPHIC 1 Price: $32.99 |
| 68 |
B5C-28392-40-00 |
GRAPHIC 2 Price: $24.99 |
| 69 |
B1J-28315-40-00 |
EMBLEM Price: $8.49 |
