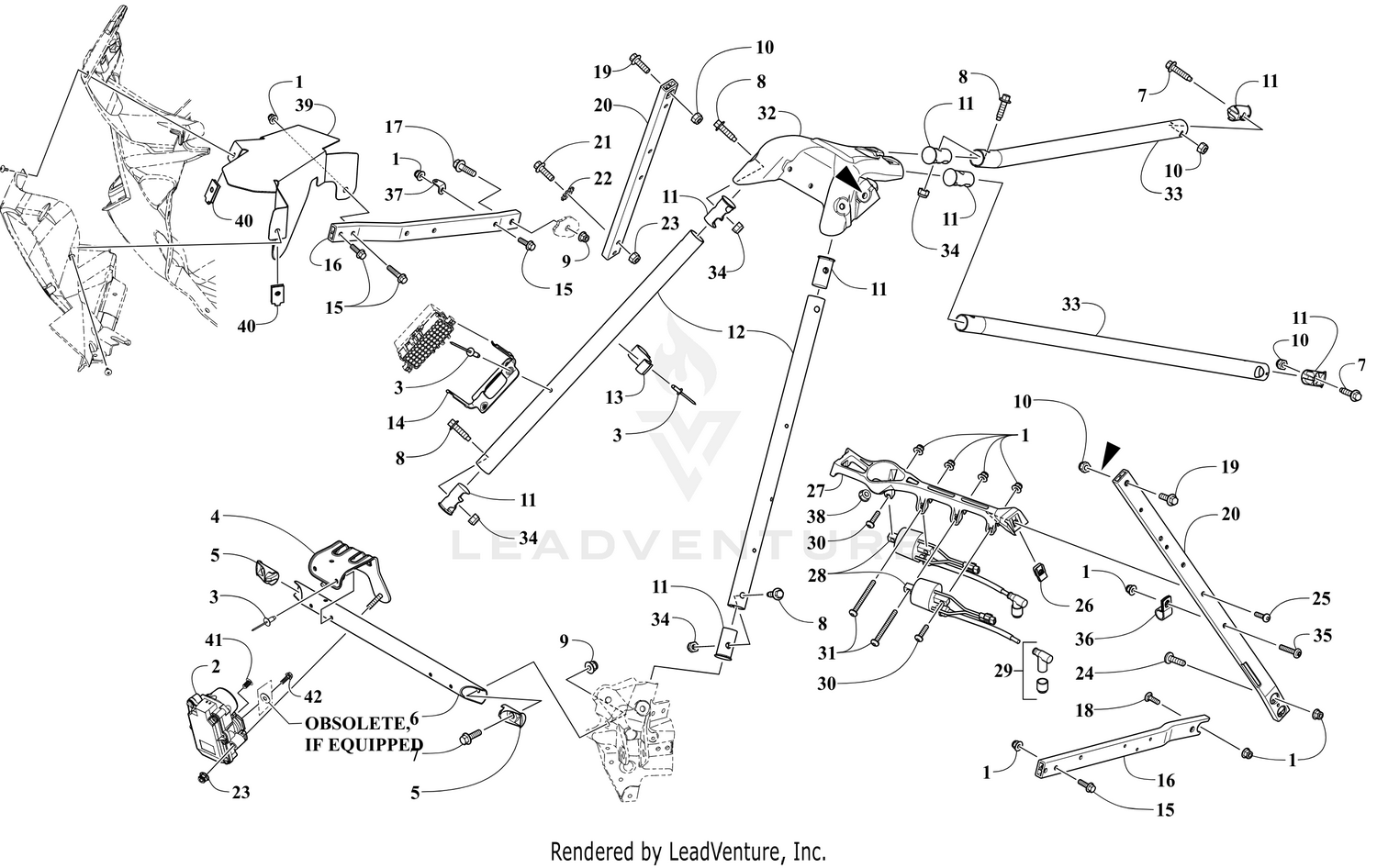

STEERING SUPPORT ASSEMBLY [110080]

Parts (43)

Ref	Part Number	Description
1	8427-602	Nut, Hex Price: $0.23
2	0902-056	Servomotor Price: $428.95
3	8060-686	Rivet - Zinc Price: $0.46
4	0708-687	Bracket, Mounting - Servomotor Price: $159.95
5	1607-002	Insert Price: $2.05
6	1707-582	Support, Shock Mount Bracket -Black Price: $22.99
7	1623-982	Screw, Cap Price: $1.32
8	1623-836	Screw, Cap Price: $3.02
9	8427-802	Nut, Lock Price: $0.58
10	8422-802	Nut, Lock Price: $0.46
11	1607-680	Insert Price: $3.88
12	2707-497	Spar, Front - Black Price: $26.95
13	1623-938	Clamp, Routing Price: $2.91
14	0645-653	Bracket, Mounting - Fuse Block Price: $22.99
15	8408-630	Screw, Cap Price: $1.08
16	0607-248	Support, Chassis - Right Price: $60.95
16	1607-583	Support, Chassis - Left Price: $74.95
17	8408-885	Screw, Cap Price: $3.02
18	1623-917	Bolt, Carriage Price: $1.08
19	8408-820	Screw, Cap Price: $0.71
20	0607-252	Support, Side - Rear - Right Price: $83.95
20	1607-963	Support, Side - Rear Left Price: $42.95
21	8408-625	Screw, Cap Price: $0.59
22	8053-212	Washer, Lock Price: $0.23
23	8422-602	Nut Price: $0.48
24	8476-616	Screw, Machine Price: $0.46
25	8476-631	Screw, Machine Price: $2.42
26	0423-577	Clip, U-Nut Price: $0.46
27	0708-626	Bracket, Mounting - Coil Price: $41.95
29	3006-367	Cap, Spark Plug Price: $29.95
30	8468-640	Screw, Machine Price: $0.71
31	8468-650	SCREW,MACH-TSPNH M6X1.0X50 CL8.8 BLK Price: $1.92
32	2707-850	Support, Steering Price: $311.95
33	2707-686	Spar, Rear - Right Price: $38.95
33	2707-687	Spar, Rear - Left Price: $38.95
34	8422-002	Nut, Lock Price: $1.08
35	8476-625	Screw, Machine Price: $1.92
36	2623-083	Clamp, Routing Price: $1.80
37	2612-707	Tab, Spring Price: $3.21
38	0608-695	Bushing Price: $1.92
39	3612-370	Duct, Heat Price: $27.95
40	1623-052	Clip, U-Nut Price: $1.08
41	2623-347	Clip Price: $0.65
