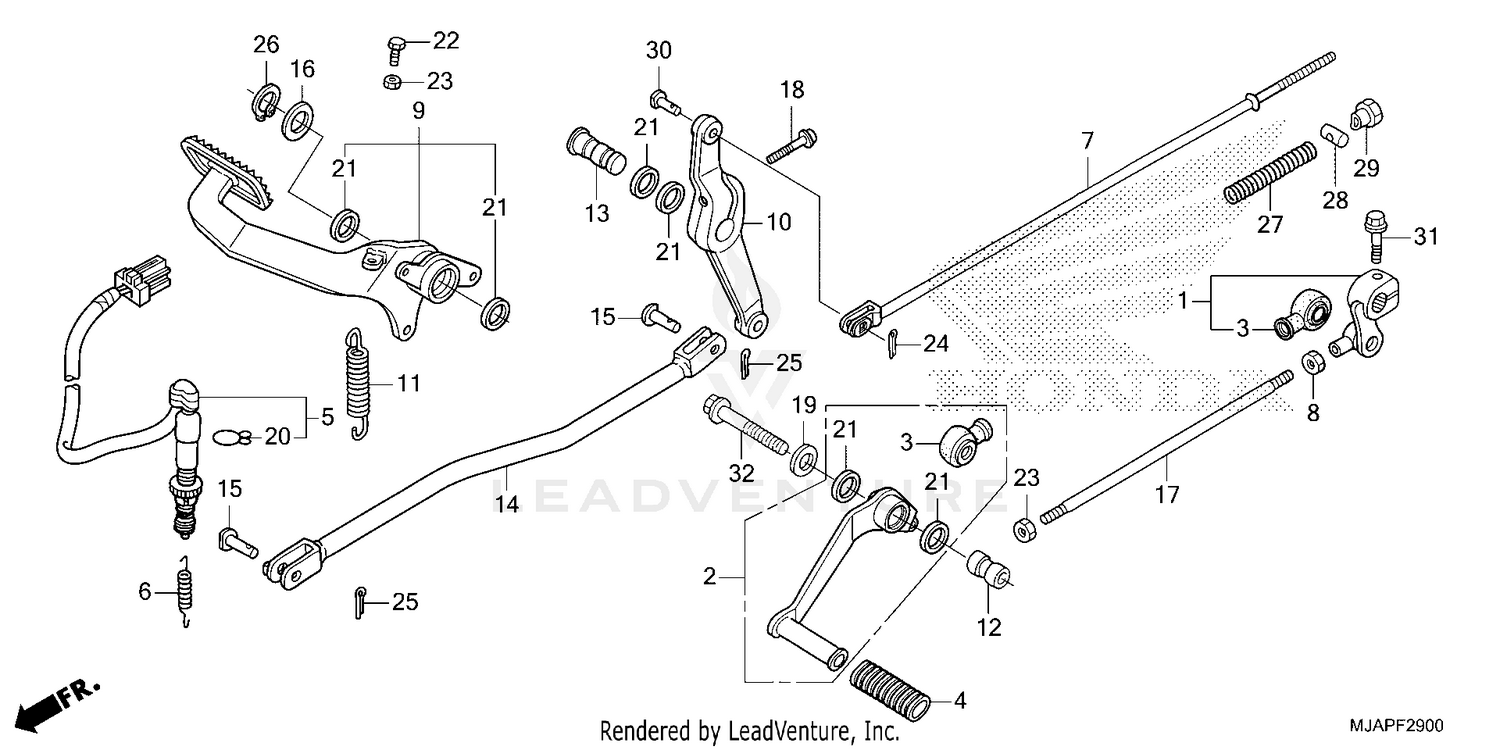

| Ref | Part Number | Description |
|---|
| 1 |
24702-MEG-000 |
ARM, GEARSHIFT Price: $55.00 |
| 3 |
24724-MBW-D21 |
COVER, DUST Price: $8.76 |
| 4 |
24781-371-000 |
RUBBER, GEARSHIFT PEDAL Price: $6.44 |
| 5 |
35350-MEG-003 |
SWITCH ASSY., RR. STOP Price: $23.04 |
| 6 |
35357-KR3-670 |
SPRING, STOP SWITCH Price: $6.42 |
| 7 |
43451-MEG-000 |
ROD, RR. BRAKE Price: $18.04 |
| 8 |
45423-KA4-700 |
NUT, HEX. (6MM) (LEFT HAND THREAD) Price: $1.85 |
| 9 |
46500-MFE-A40 |
PEDAL ASSY., RR. BRAKE Price: $119.18 |
| 10 |
46511-MEG-000 |
ARM, RR. BRAKE MIDDLE Price: $61.49 |
| 11 |
46514-KZ9-000 |
SPRING, BRAKE PEDAL Price: $6.45 |
| 12 |
46515-MM8-000 |
COLLAR, RR. BRAKE PIVOT Price: $14.20 |
| 13 |
46517-MEG-000 |
SHAFT, RR. BRAKE PIVOT Price: $21.80 |
| 14 |
46540-MEG-000 |
ROD, RR. BRAKE MIDDLE Price: $61.49 |
| 15 |
46545-MBA-000 |
PIN, MIDDLE ROD JOINT Price: $7.71 |
| 16 |
53312-657-000 |
BUSH, WASHER Price: $8.42 |
| 17 |
90065-MEG-000 |
BOLT, TIE ROD Price: $9.78 |
| 18 |
90133-MAT-000 |
BOLT, FLANGE SOCKET (8X32) Price: $5.16 |
| 20 |
90601-KAF-003 |
CLIP, SWITCH COVER Price: $3.05 |
| 21 |
91206-968-003 |
DUST SEAL (17X23X3) (NOK) Price: $4.64 |
| 22 |
92101-06020-0A |
BOLT, HEX. (6X20) BOLT, FLANGE (6X20) Price: $1.08 |
| 23 |
94002-06000-0S |
NUT, HEX. (6MM) Price: $1.37 |
| 24 |
94201-20120 |
PIN, COTTER (2.0X12) Price: $1.08 |
| 25 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
| 26 |
94511-15000 |
CIRCLIP (OUTER) (15MM) Price: $0.78 |
| 27 |
95014-73100 |
SPRING A, BRAKE ROD Price: $1.47 |
| 28 |
95015-32001 |
JOINT B, BRAKE ARM Price: $1.07 |
| 29 |
95015-42000 |
NUT B, BRAKE ROD ADJUSTING Price: $2.20 |
| 30 |
95015-53000 |
PIN, JOINT (C) Price: $3.84 |
