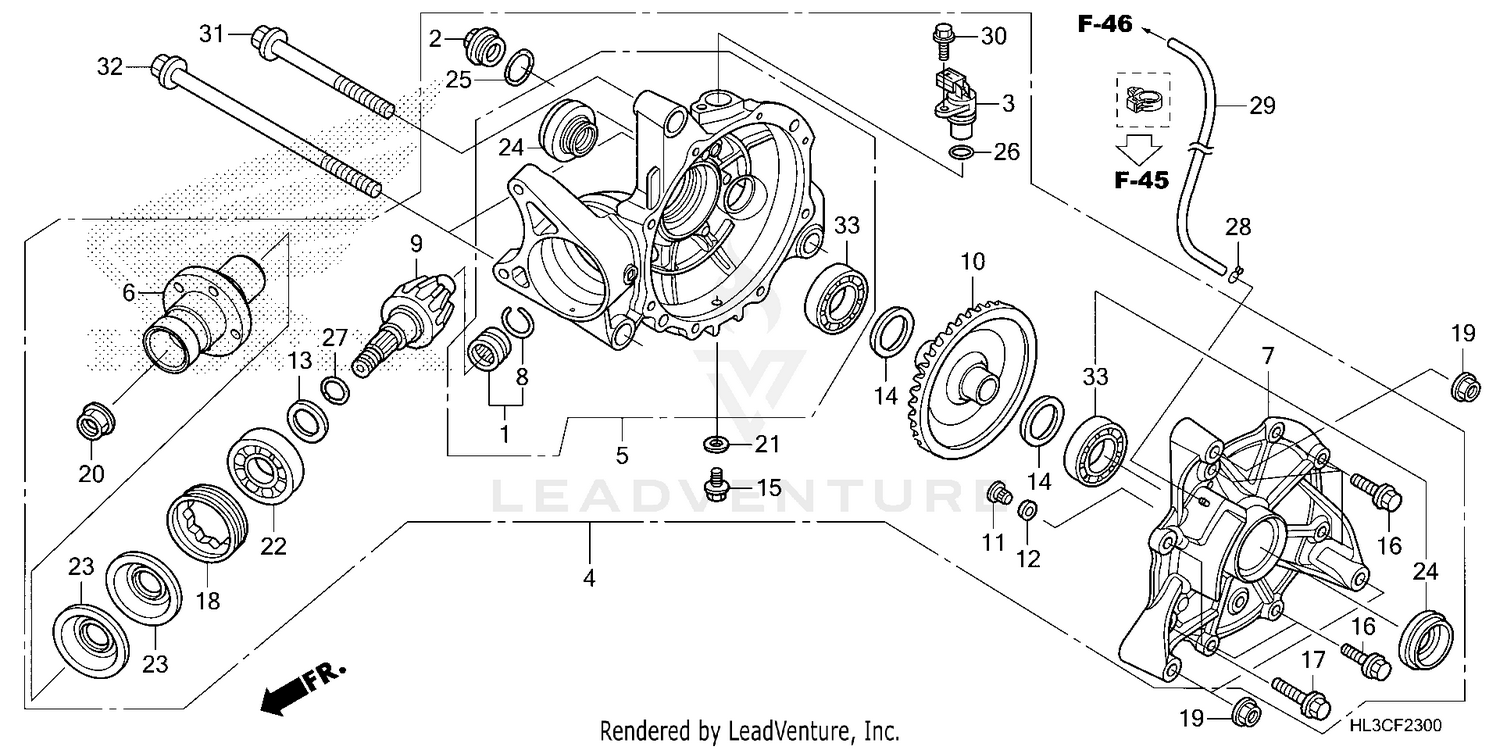

| Ref | Part Number | Description |
|---|
| 1 |
06910-HP0-A00 |
BEARING SET, NEEDLE Price: $37.09 |
| 2 |
12361-300-000 |
CAP, VALVE ADJ. This part replaces 12361-035-000. Price: $12.40 |
| 3 |
37700-KZR-601 |
SENSOR ASSY., SPEED (TDK-EPC) Price: $53.38 |
| 4 |
41300-HL3-600 |
GEAR ASSY., RR. FINAL Price: $700.35 |
| 5 |
41311-HL3-A00 |
CASE SUB-ASSY., RR. FINAL GEAR Price: $240.09 |
| 6 |
41315-HL3-A00 |
JOINT, RR. PINION Price: $92.62 |
| 7 |
41331-HL3-A00 |
COVER SUB-ASSY., RR. FINAL GEAR Price: $289.16 |
| 8 |
41405-HA7-670 |
RING, STOPPER Price: $3.73 |
| 9 |
41421-HL3-A00 |
GEAR, RR. PINION (13T) Price: $274.93 |
| 10 |
41431-HL3-A00 |
GEAR, RR. RING (45T) Price: $608.67 |
| 11 |
41436-MB0-310 |
PIN, RING GEAR STOPPER Price: $36.45 |
| 12 |
41437-MB0-310 |
SHIM A, STOPPER PIN (0.10) Price: $6.45 |
| 12 |
41438-MB0-310 |
SHIM B, STOPPER PIN (0.15) Price: $6.45 |
| 13 |
41450-MG9-000 |
SHIM A, PINION GEAR (1.32) Price: $8.20 |
| 13 |
41451-MG9-000 |
SHIM B, PINION GEAR (1.38) Price: $8.20 |
| 13 |
41452-MG9-000 |
SHIM C, PINION GEAR (1.44) Price: $8.20 |
| 13 |
41453-MG9-000 |
SHIM D, PINION GEAR (1.50) Price: $8.20 |
| 13 |
41454-MG9-000 |
SHIM E, PINION GEAR (1.56) Price: $8.20 |
| 13 |
41455-MG9-000 |
SHIM F, PINION GEAR (1.62) Price: $8.20 |
| 13 |
41456-MG9-000 |
SHIM G, PINION GEAR (1.68) Price: $8.20 |
| 14 |
41540-HA0-000 |
SPACER A, RING GEAR (1.82) Price: $14.35 |
| 14 |
41541-HA0-000 |
SPACER B, RING GEAR (1.88) Price: $14.35 |
| 14 |
41542-HA0-000 |
SPACER C, RING GEAR (1.94) Price: $14.35 |
| 14 |
41543-HA0-000 |
SPACER D, RING GEAR (2.00) Price: $14.35 |
| 14 |
41544-HA0-000 |
SPACER E, RING GEAR (2.06) Price: $14.35 |
| 14 |
41545-HA0-000 |
SPACER F, RING GEAR (2.12) Price: $14.35 |
| 14 |
41546-HA0-000 |
SPACER G, RING GEAR (2.18) Price: $14.35 |
| 14 |
41547-HA0-000 |
SPACER H, RING GEAR (2.24) Price: $14.35 |
| 14 |
41548-HA0-000 |
SPACER I, RING GEAR (2.30) Price: $14.35 |
| 15 |
90109-371-000 |
BOLT, SEALING (8MM) Price: $3.09 |
| 16 |
90133-HP5-600 |
BOLT, FLANGE (8X27) Price: $3.05 |
| 17 |
90134-HP5-600 |
BOLT, FLANGE (10X35) Price: $4.40 |
| 18 |
90242-HL1-A00 |
NUT, LOCK (72MM) Price: $25.15 |
| 19 |
90305-HC0-770 |
NUT, SELF-LOCK (10MM) Price: $3.76 |
| 20 |
90381-MT3-000 |
NUT, HEX. (16MM) Price: $9.09 |
| 21 |
90471-580-000 |
WASHER (8MM) Price: $3.40 |
| 22 |
91064-HL4-A01 |
BEARING, RADIAL BALL (63/28) Price: $37.85 |
| 23 |
91251-HL3-A01 |
OIL SEAL (36X75X8) Price: $7.96 |
| 24 |
91252-HL3-A01 |
OIL SEAL (28X55X7) Price: $6.44 |
| 25 |
91302-001-020 |
O-RING (30.8MM) (Honda Code 0001065) Price: $4.70 |
| 26 |
91303-KF0-003 |
O-RING (14.8X2.4) (ARAI) Price: $2.02 |
| 27 |
91355-759-003 |
O-RING (21.8X2.4) (Honda Code 3793031) Price: $2.18 |
| 28 |
95002-35000 |
CLIP, TUBE (C6.5) Price: $0.78 |
| 29 |
95005-35001-30M |
BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M) Price: $10.45 |
| 30 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 31 |
95801-10095-00 |
BOLT, FLANGE (10X95) Price: $4.62 |
| 32 |
95801-10160-00 |
BOLT, FLANGE (10X160) Price: $5.38 |
