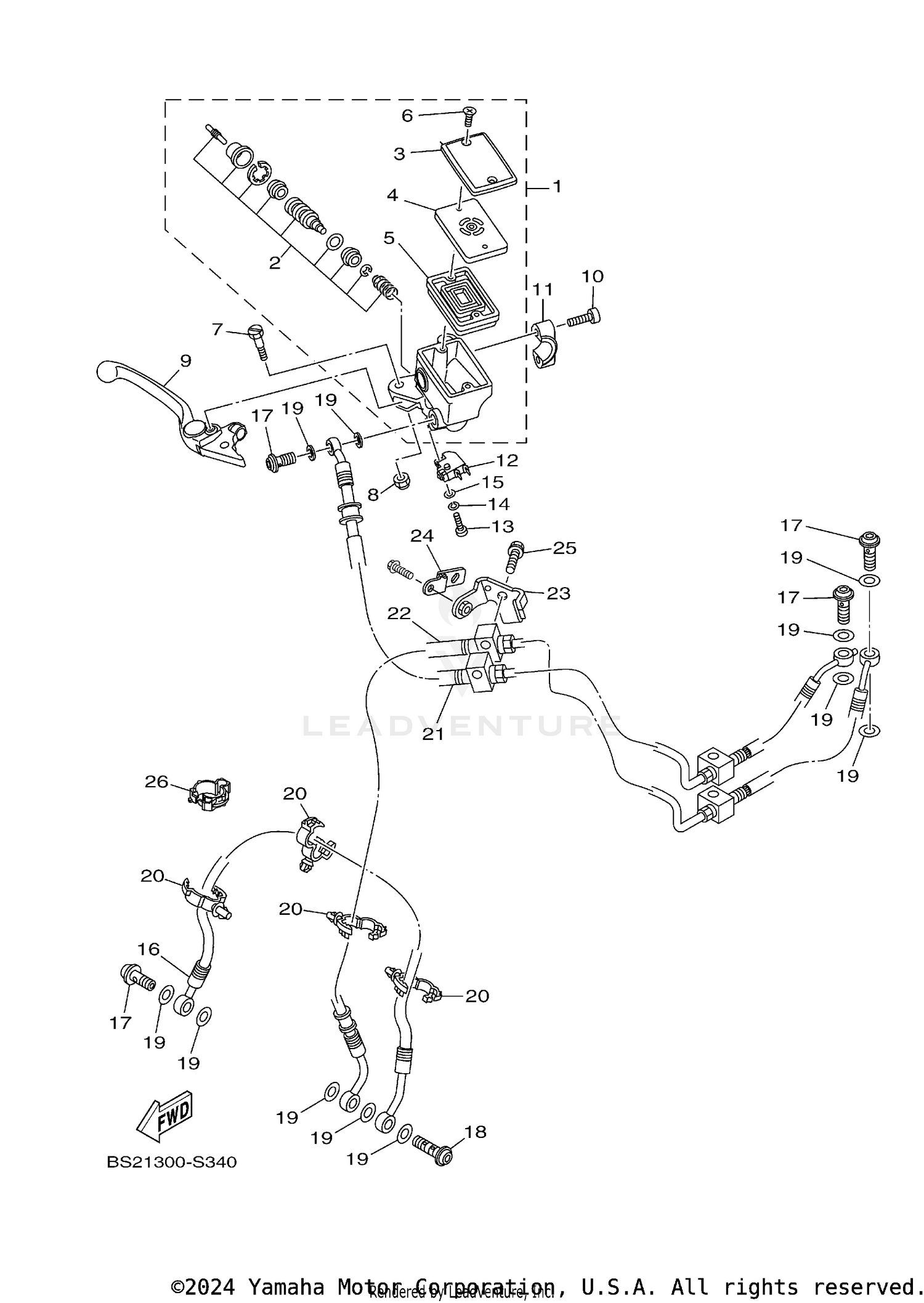

| Ref | Part Number | Description |
|---|
| 1 |
2DR-2580A-00-00 |
MASTER CYLINDER SUB ASSY 2 Price: $240.99 |
| 2 |
1MC-25807-00-00 |
CYLINDER KIT, MASTER Price: $36.99 |
| 3 |
5VS-25852-00-00 |
CAP, RESERVOIR Price: $30.99 |
| 4 |
5VS-25855-00-00 |
BUSH, DIAPHRAGM Price: $17.99 |
| 5 |
20S-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $31.99 |
| 6 |
5VS-2589H-00-00 |
SCREW Price: $4.45 |
| 7 |
5VS-2589F-00-00 |
BOLT, LEVER Price: $15.49 |
| 8 |
95617-06100-00 |
NUT, S/L Price: $2.90 |
| 9 |
5VS-83922-00-00 |
LEVER 2 Price: $92.99 |
| 10 |
5VS-26332-00-00 |
BOLT Price: $4.95 |
| 11 |
5VS-25867-00-00 |
BRACKET, MASTER CYLINDER Price: $39.99 |
| 12 |
1HP-83980-03-00 |
FRONT STOP SWITCH AS This part replaces 1HP-83980-01-00. Price: $34.99 |
| 13 |
98517-04012-00 |
SCREW,PANHEAD This part replaces 98502-04012-00. Price: $4.20 |
| 14 |
92990-04100-00 |
WASHER, SPRING This part replaces 92902-04100-00. Price: $0.95 |
| 15 |
92990-04600-00 |
WASHER, PLATE This part replaces 92902-04600-00. Price: $0.99 |
| 16 |
2DR-25872-01-00 |
HOSE, BRAKE 1 This part replaces 2DR-25872-00-00. Price: $64.99 |
| 17 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 18 |
90401-10042-00 |
BOLT, UNION Price: $18.49 |
| 19 |
90430-10005-00 |
GASKET Price: $9.49 |
| 20 |
90464-18002-00 |
CLAMP Price: $9.49 |
| 21 |
B6C-2584A-01-00 |
BRAKE HOSE ASSY This part replaces B6C-2584A-00-00. Price: $210.99 |
| 22 |
2DR-2584B-01-00 |
HOSE, BRAKE This part replaces 2DR-2584B-00-00. Price: $204.99 |
| 23 |
2DR-85132-00-00 |
BRACKET, REFLECTOR 1 Price: $17.49 |
| 24 |
B90-2612E-00-00 |
BRACKET Price: $5.99 |
| 25 |
90105-06091-00 |
BOLT, FLANGE This part replaces 90105-06192-00. Price: $6.49 |
