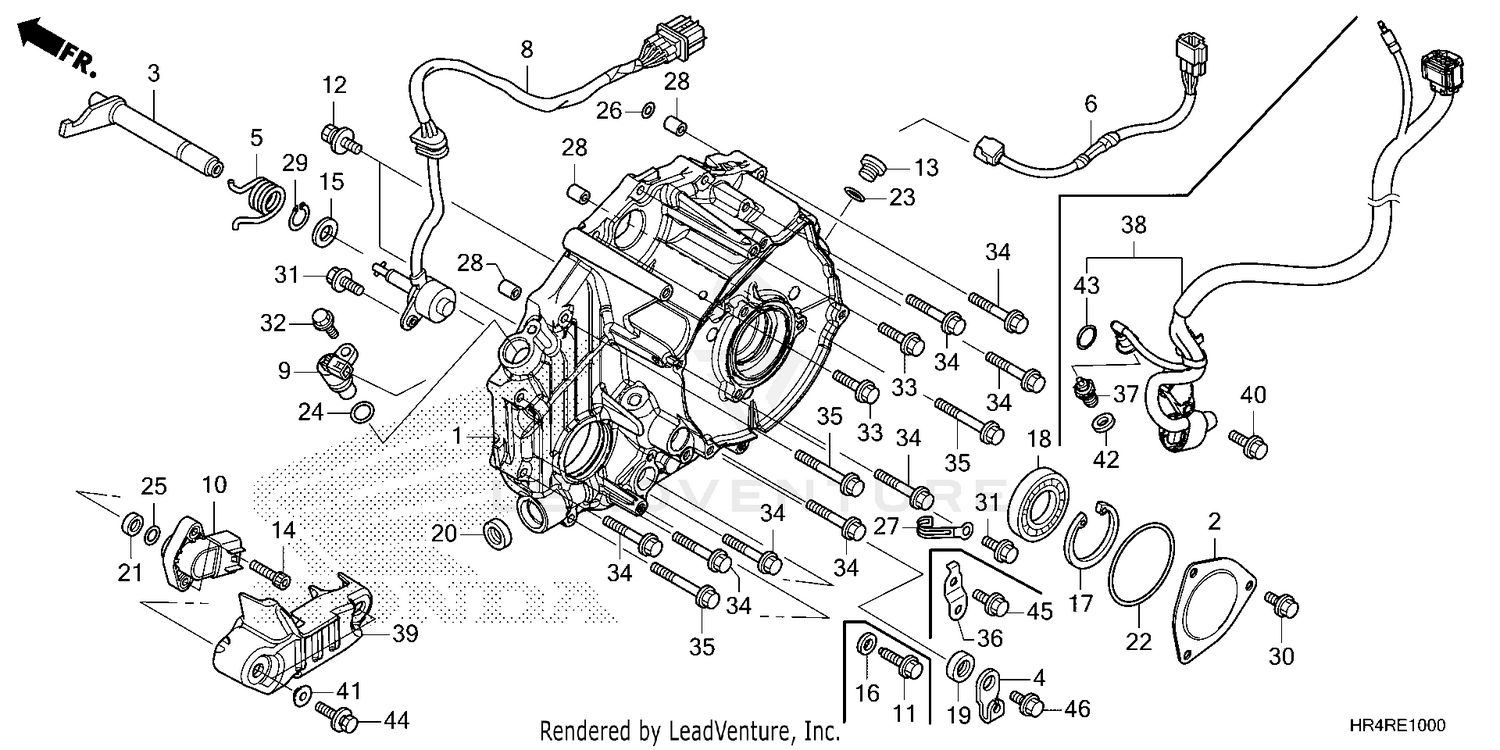

| Ref | Part Number | Description |
|---|
| 1 |
11400-HR4-A20 |
COVER ASSY., RR. CRANKCASE Price: $271.30 |
| 2 |
11342-HP5-600 |
CAP, RR. COVER Price: $3.84 |
| 3 |
24860-HP5-000 |
SHAFT A, REVERSE STOPPER Price: $25.18 |
| 4 |
24865-HP5-600 |
LEVER, REVERSE STOPPER Price: $6.00 |
| 5 |
24867-HP5-600 |
SPRING, REVERSE STOPPER Price: $4.76 |
| 6 |
32101-HR3-HB0 |
SUB-HARNESS, ENGINE Price: $66.42 |
| 8 |
35759-HR3-HA1 |
SWITCH ASSY., CHANGE Price: $146.84 |
| 9 |
37700-KZR-601 |
SENSOR ASSY., SPEED (TDK-EPC) Price: $53.38 |
| 11 |
90009-HP5-000 |
BOLT, SPECIAL FLANGE (8X24.5) Price: $4.40 |
| 12 |
90021-MM5-000 |
BOLT-WASHER (6X12) (Honda Code 2551760) Price: $6.42 |
| 13 |
90084-KY2-000 |
CAP (14MM) Price: $19.35 |
| 15 |
90452-166-600 |
WASHER, THRUST (12MM) Price: $2.73 |
| 16 |
90495-MN5-000 |
WASHER, SEALING (8MM) Price: $4.47 |
| 17 |
90602-GFZ-000 |
CIRCLIP (INNER) (42MM) Price: $4.20 |
| 18 |
91015-HR0-F21 |
BEARING, RADIAL BALL (6806) Price: $21.27 |
| 19 |
91201-965-000 |
OIL SEAL (12X22X5) Price: $5.09 |
| 20 |
91202-444-023 |
OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-013. Price: $4.76 |
| 22 |
91301-HR3-A40 |
O-RING (58X3) Price: $2.65 |
| 23 |
91303-377-000 |
O-RING (13.8X2.5) Price: $4.29 |
| 24 |
91303-KF0-003 |
O-RING (14.8X2.4) (ARAI) Price: $2.02 |
| 26 |
91313-MN5-004 |
O-RING (7.8X1.9) (NOK) Price: $2.49 |
| 27 |
91413-679-000 |
CLIP (2X70) Price: $11.20 |
| 28 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 29 |
94510-12000 |
CIRCLIP (OUTER) (12MM) Price: $1.89 |
| 30 |
95701-06012-00 |
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) Price: $1.70 |
| 31 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 32 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 33 |
95701-06025-00 |
BOLT, FLANGE (6X25) Price: $1.88 |
| 34 |
95701-06040-00 |
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45) Price: $1.97 |
| 35 |
95701-06050-00 |
BOLT, FLANGE (6X50) (Honda Code 2410975) Price: $2.27 |
