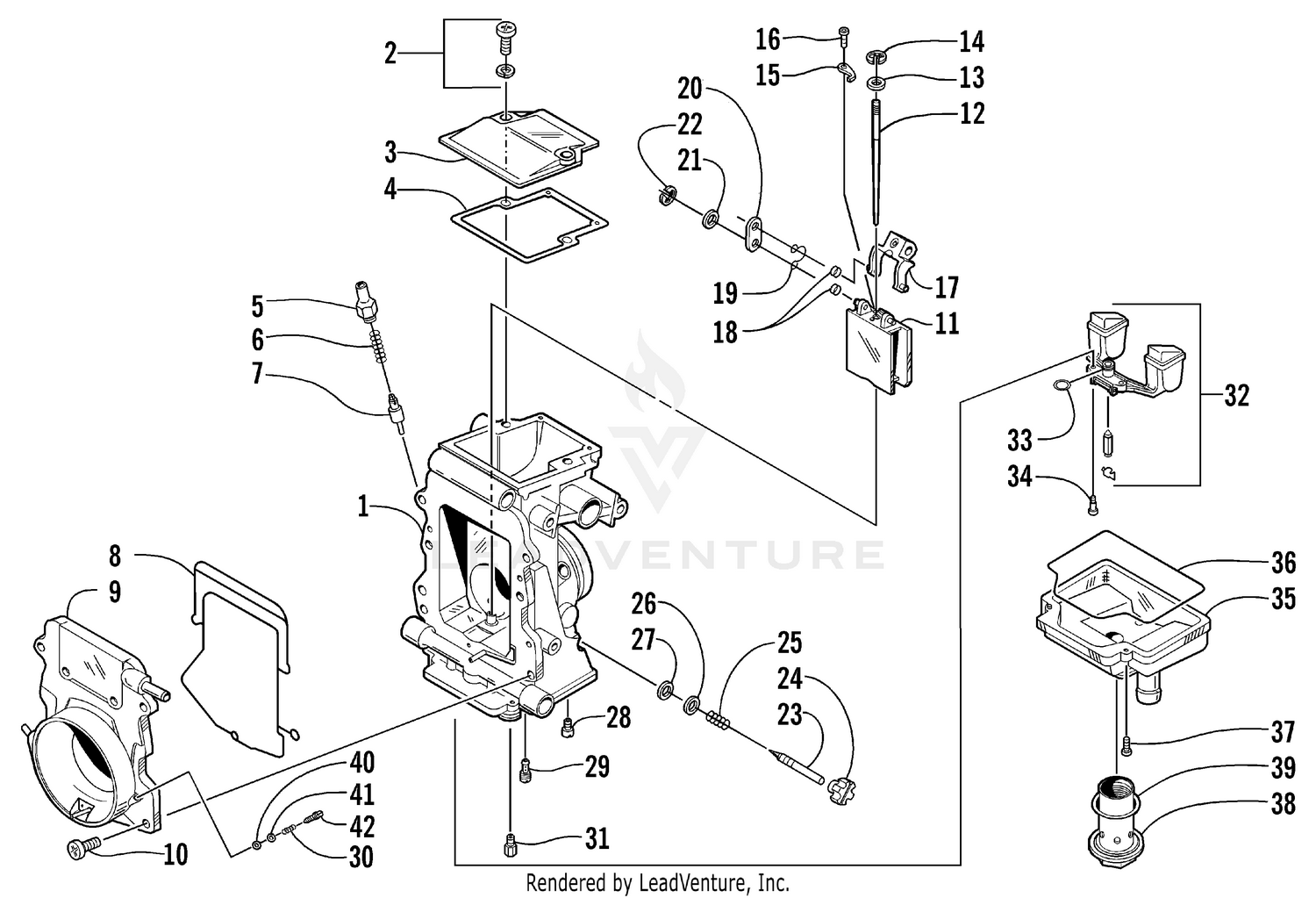

CARBURETOR - INTERNAL PARTS [58903]

Parts (41)

Ref	Part Number	Description
2	6505-591	Screw w/Washer Price: $1.92
3	6506-142	Cap, Top Price: $8.95
4	6506-034	Gasket Price: $35.95
5	6506-137	Cap, Starter Plunger Price: $10.95
6	6506-138	Spring, Starter Plunger Price: $4.03
7	6506-139	Starter Plunger Price: $28.95
8	6506-209	Gasket Price: $31.95
9	6506-239	Funnel Assembly Price: $83.11
10	6505-980	Screw Price: $1.70
11	6506-120	PISTON VALVE-3.0 Price: $155.95
12	6506-201	Jet Needle 9DFH2-59-3 Price: $36.95
13	6505-552	Washer Price: $1.32
14	6505-628	E-Clip Price: $4.11
15	6506-055	Plate, Retaining - Jet Needle Price: $4.79
16	6506-054	Screw, Machine Price: $1.69
17	6506-043	Lever Assembly - Left Price: $127.95
17	6506-047	Lever Assembly - Right Price: $107.95
18	6506-053	Bushing, Clip Price: $4.35
19	6506-040	Clip Price: $21.77
20	6506-039	Plate Price: $12.07
21	6506-052	Washer Price: $2.66
22	6506-051	E-Clip Price: $4.35
23	6506-145	Screw, Fuel Mixture Price: $22.99
24	6506-076	Cap, Fuel Mixture Screw Price: $8.43
25	6506-079	Spring Price: $4.72
26	6506-078	Washer Price: $1.70
27	6506-080	Washer Price: $2.30
28	6506-265	Starter Jet 135 Price: $13.28
29	6505-262	Pilot Jet 50 Price: $4.48
30	6506-217	Spring Price: $4.11
32	6506-144	Float Assembly 1.8 Price: $172.95
33	6505-875	O-Ring Price: $1.80
34	6506-037	Screw, Float Arm Price: $4.11
35	6506-036	Chamber, Float Price: $115.95
35	6506-270	Chamber, Float - Assembly - Right Price: $99.95
36	6506-038	Gasket, Float Chamber Price: $26.95
37	6506-072	Screw, Machine Price: $1.45
38	6506-032	Plug, Drain Price: $47.95
39	6505-185	O-Ring, Drain Plug Price: $4.35
40	4505-011	O-Ring Price: $5.44
41	6506-218	Washer Price: $1.70
