Parts Catalog

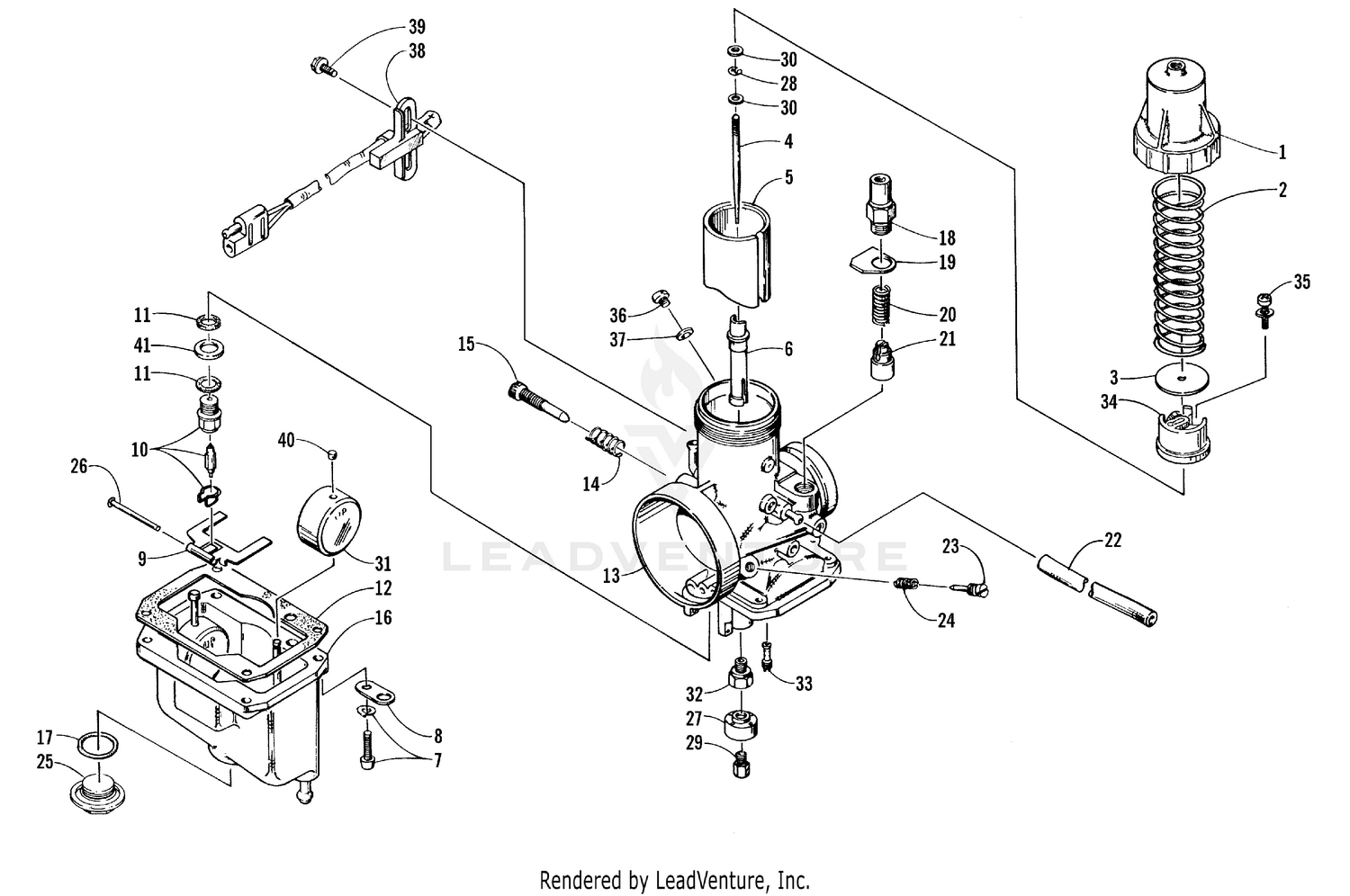

CARBURETOR VM38 [67358]

Parts (42)

Ref	Part Number	Description
1	6505-582	Top, Mixing Chamber Price: $18.95
2	6505-584	Spring, Piston Valve Price: $28.95
3	6505-588	Plate Price: $1.69
4	6505-711	Jet Needle, 6DH41-3 Price: $11.95
5	6505-818	Piston Valve CA 2.5 Price: $121.95
6	6505-539	Needle Jet (VM-Style) - P-6 (480) Price: $28.95
6	6505-540	NEEDLE JET P4 (480) Price: $6.95
6	6505-641	Needle Jet (VM-Style) - Q-2 (480) Price: $5.95
7	6505-195	Screw w/Spring Washer Price: $2.17
8	6505-094	Plate, Hose Price: $13.28
9	6505-638	Arm, Float Price: $26.95
10	6505-171	Needle Valve Assembly 1.5 Price: $53.95
11	6505-102	Washer, Valve Seat Price: $1.20
12	6505-197	Gasket, Float Chamber Price: $15.71
14	6505-021	Spring, Throttle Stop Screw Price: $3.75
15	6505-101	Screw, Throttle Stop Price: $8.43
16	6505-637	Chamber, Float Price: $69.95
17	6505-622	O-Ring Price: $5.34
18	6505-188	Cap, Starter Plunger Price: $18.13
19	6505-193	Washer Price: $3.38
20	6505-033	Spring, Starter Plunger Price: $19.35
21	6505-035	Plunger, Starter Price: $19.35
22	6505-280	Tube, Air Vent Price: $8.43
23	6505-019	Screw, Pilot Air Price: $13.28
24	6505-020	Spring, Pilot Air Screw Price: $3.75
25	6505-617	Screw, Drain Price: $46.95
26	6505-153	Pin Price: $3.38
27	6505-620	Ring, Baffle Price: $26.95
28	6505-610	E-Ring Price: $2.42
29	6505-038	Main Jet 360 Price: $7.23
30	6505-437	Washer Price: $1.92
31	6505-049	Float Price: $35.95
32	6505-199	Guide, Screw Price: $19.35
33	6505-029	Pilot Jet 35 Price: $7.23
33	6505-047	Pilot Jet 40 Price: $4.79
34	6505-590	Block, Magnet Price: $32.95
35	6505-591	Screw w/Washer Price: $1.92
36	6505-400	Main Jet 400 Price: $1.80
37	6505-399	Washer Price: $0.89
38	0630-257	Switch, Magnetic Carburetor - Assembly (Normally Close) Price: $58.95
39	0623-137	Screw, Self-Tapping Price: $0.48
40	6505-010	Cap Price: $1.80
