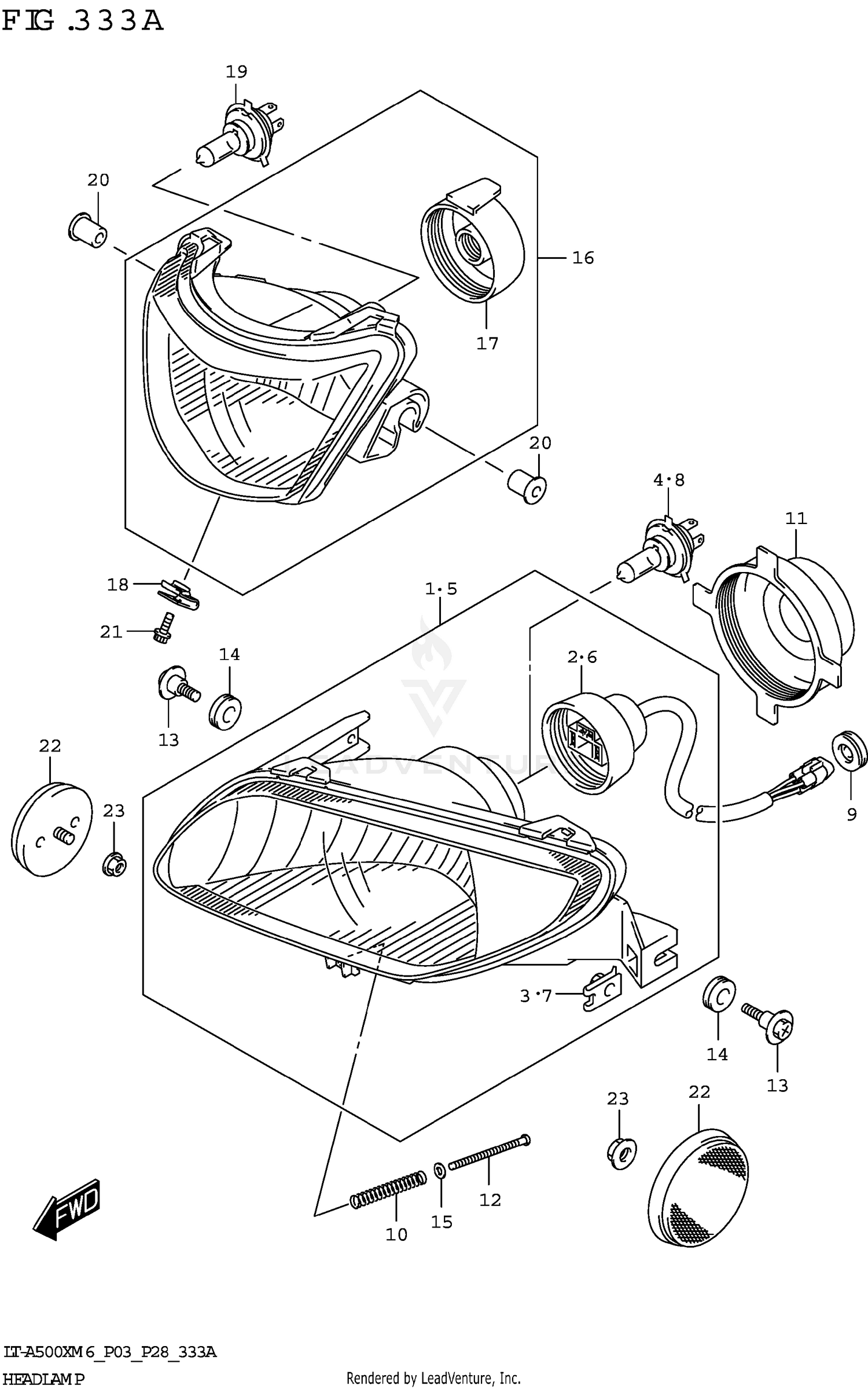

HEADLAMP
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35100-31G92-999 | HEADLAMP ASSY RH Price: $125.05 |
| 4 | 09471-12101 | BULB (12V35/35W,HS1(01750A)) Price: $82.33 |
| 5 | 35300-31G92-999 | HEADLAMP ASSY LH Price: $125.05 |
| 8 | 09471-12101 | BULB (12V35/35W,HS1(01750A)) Price: $82.33 |
| 9 | 09308-07011 | GROMMET Price: $3.20 |
| 10 | 35154-31300 | SPRING Price: $4.70 |
| 11 | 35174-31G00 | COVER,HEADLAMP HOUSING Price: $13.49 |
| 12 | 09125-04031 | SCREW (4X50) Price: $2.77 |
| 13 | 09139-06118 | SCREW (6X22.5) Price: $4.12 |
| 14 | 09320-10078 | CUSHION (10X20X10) Price: $5.14 |
| 15 | 08322-0104A | WASHER Price: $2.33 |
| 16 | 35100-31GB3-999 | HEADLAMP ASSY Price: $96.04 |
| 18 | 09148-05052 | NUT (M5) Price: $4.10 |
| 19 | 09471-12101 | BULB (12V35/35W,HS1(01750A)) Price: $82.33 |
| 20 | 09320-07020 | CUSHION Price: $1.46 |
| 21 | 07120-0512B | BOLT Price: $3.06 |
| 22 | 35950-14A11 | REFLEX REFLECTOR ASSY, FR SID Price: $18.81 |
