Parts Catalog

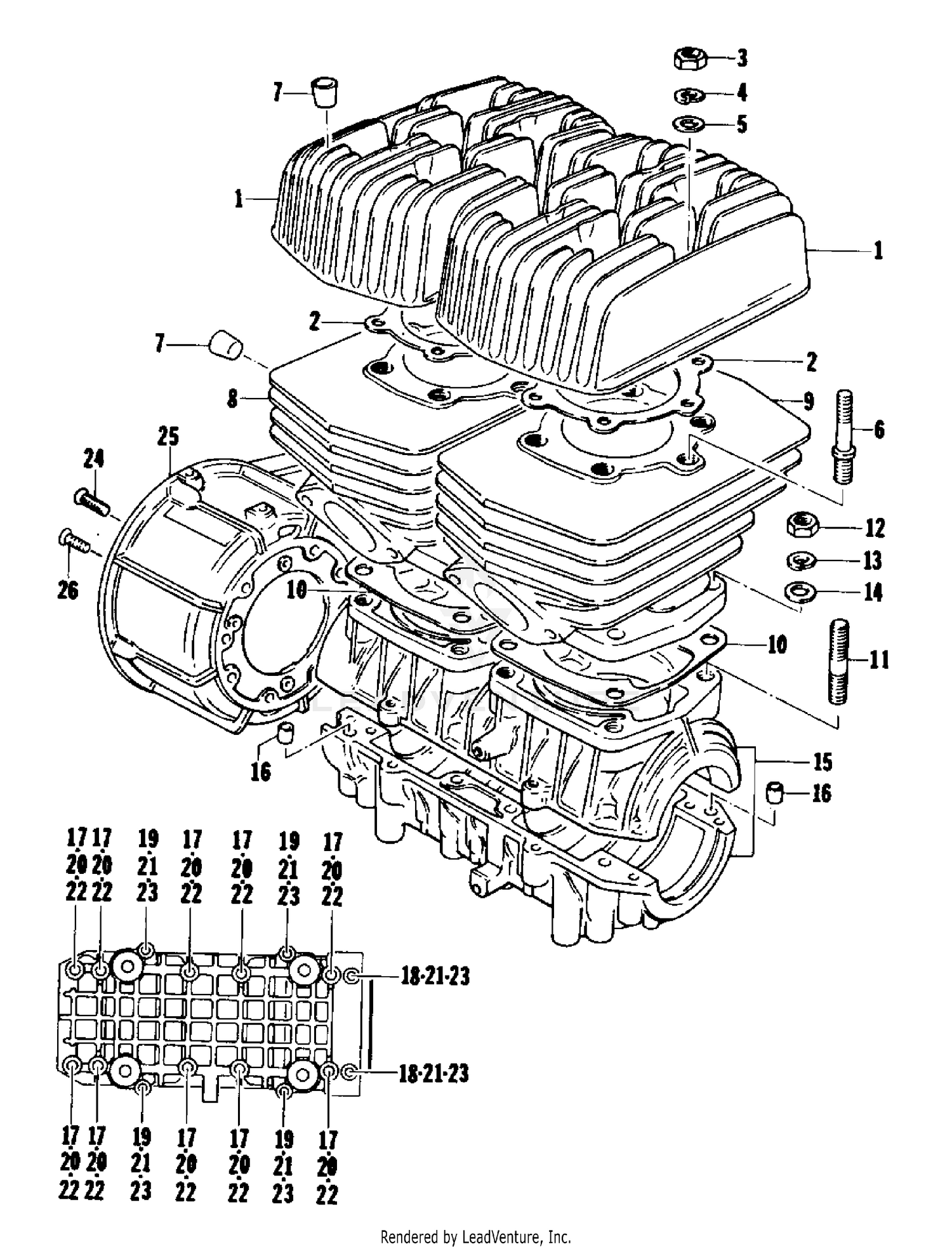

CRANKCASE AND CYLINDER [51634]

Parts (23)

Ref	Part Number	Description
1	3002-050	Cylinder Head Price: $123.95
2	3002-054	Gasket, Head Price: $8.95
3	3007-416	Nut Price: $2.69
4	3004-280	Washer, Lock, 8MM Price: $1.67
5	3423-204	Washer Price: $1.29
6	3002-020	Bolt, Stud Price: $4.19
7	3002-055	Pad Price: $3.39
8	3002-283	CYLINDER RH-4000 Price: $599.95
9	3002-285	CYLINDER LH-4000 Price: $722.95
10	3003-505	Gasket, Cylinder Base Price: $7.95
11	3005-383	STUD BOLT, CYLINDER,10MM Price: $3.79
12	3008-209	Nut Price: $3.47
13	3007-424	Lock Washer Price: $4.26
14	3007-410	Washer Price: $3.02
15	3003-515	CRANKCASE,ASSY (76 440Z) Price: $350.00
16	3002-012	Pin, Case Price: $3.13
18	3002-963	BOLT,HEX M6X70 Price: $2.09
20	3004-280	Washer, Lock, 8MM Price: $1.67
21	3004-447	WASHER, LOCK 6MM Price: $3.47
22	3423-204	Washer Price: $1.29
23	3000-101	Washer Price: $0.39
24	3007-566	SCREW Price: $1.09
25	3002-170	Case, Magneto Price: $140.95
