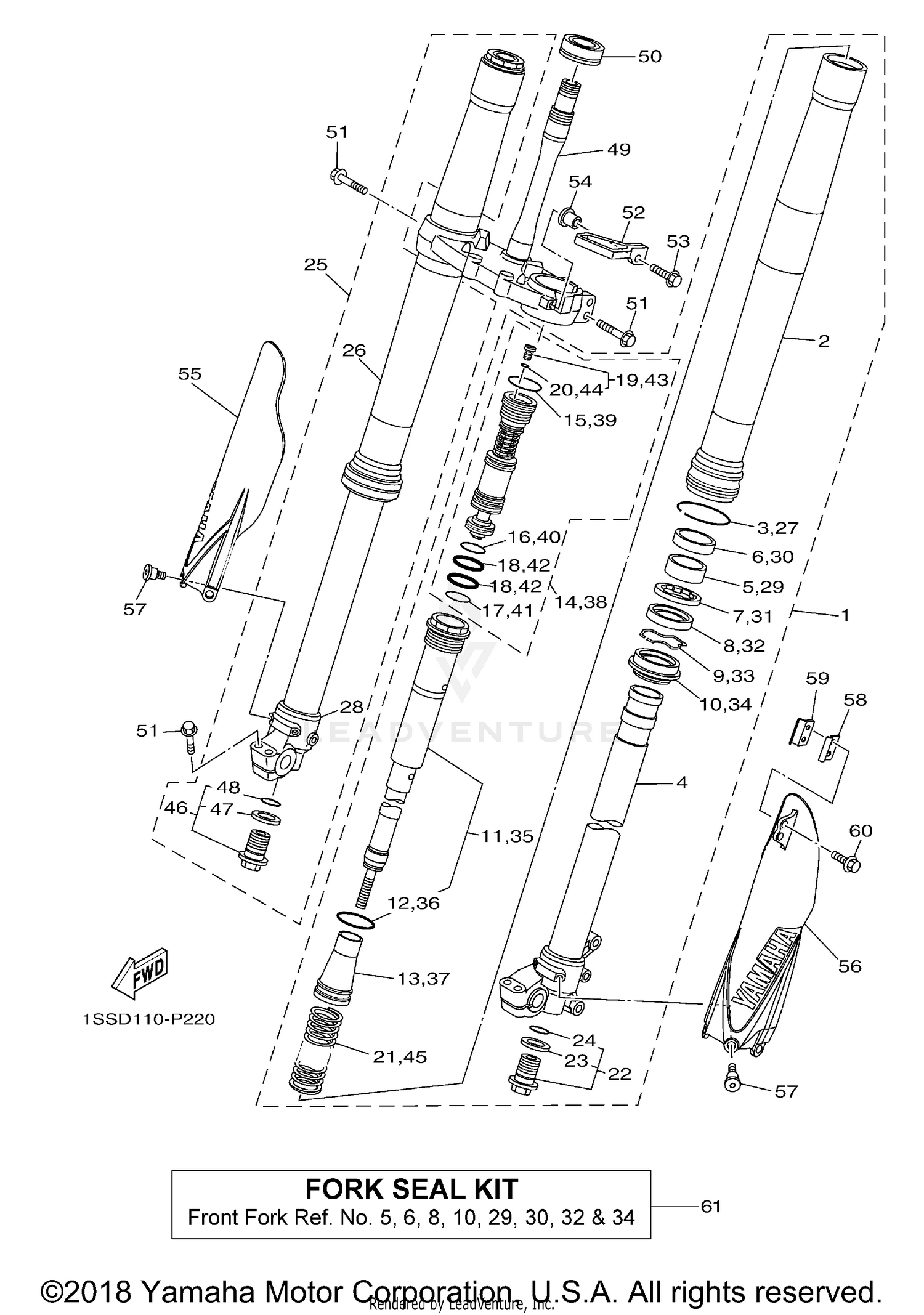

| Ref | Part Number | Description |
|---|
| 1 |
BF1-23102-00-00 |
FRONT FORK ASSY (L.H) Price: $1,586.99 |
| 2 |
1SS-23136-00-00 |
TUBE, OUTER 2 Price: $649.99 |
| 3 |
17D-23153-00-00 |
RING, SNAP Price: $5.49 |
| 4 |
1SS-23120-00-00 |
INNER TUBE COMP. 2 Price: $504.99 |
| 7 |
5XC-23146-10-00 |
WASHER, OIL SEAL Price: $15.49 |
| 9 |
5XE-23153-L0-00 |
RING, SNAP Price: $8.49 |
| 11 |
BF1-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $452.99 |
| 12 |
1C3-23147-L1-00 |
O-RING This part replaces 1C3-23147-L0-00. Price: $3.75 |
| 13 |
17D-23142-00-00 |
SEAT, SPRING UPPER Price: $80.99 |
| 14 |
BF1-2316A-00-00 |
VALVE COMP. Price: $354.99 |
| 15 |
1C3-23188-L1-00 |
O-RING This part replaces 1C3-23188-L0-00. Price: $3.20 |
| 16 |
1C3-23188-N0-00 |
O-RING Price: $8.49 |
| 17 |
1C3-23188-P0-00 |
O-RING Price: $7.49 |
| 18 |
1W4-23114-L0-00 |
GASKET This part replaces 1AE-23147-00-00. Price: $8.49 |
| 19 |
1C3-23190-L1-00 |
AIR VALVE COMP. This part replaces 1C3-23190-L0-00. Price: $25.99 |
| 20 |
1C3-23188-R1-00 |
O-RING This part replaces 1C3-23188-R0-00. Price: $4.30 |
| 21 |
1C3-23141-E1-00 |
SPRING, FRONT FORK (K=4.3N/MM) This part replaces 5XC-23141-M1-00. Price: $134.99 |
| 22 |
5XC-23111-01-00 |
BOLT, CAP This part replaces 5XC-23111-00-00. Price: $78.99 |
| 23 |
2HH-23158-L0-00 |
GASKET Price: $11.99 |
| 24 |
276-23114-01-00 |
GASKET This part replaces 276-23114-00-00. Price: $4.60 |
| 25 |
BF1-23103-00-00 |
FRONT FORK ASSY (R.H) Price: $1,589.99 |
| 26 |
1SS-23136-00-00 |
TUBE, OUTER 2 Price: $649.99 |
| 27 |
17D-23153-00-00 |
RING, SNAP Price: $5.49 |
| 28 |
1SS-23110-00-00 |
INNER TUBE COMP. 1 Price: $519.99 |
| 31 |
5XC-23146-10-00 |
WASHER, OIL SEAL Price: $15.49 |
| 33 |
5XE-23153-L0-00 |
RING, SNAP Price: $8.49 |
| 35 |
BF1-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $452.99 |
| 36 |
1C3-23147-L1-00 |
O-RING This part replaces 1C3-23147-L0-00. Price: $3.75 |
| 37 |
17D-23142-00-00 |
SEAT, SPRING UPPER Price: $80.99 |
| 38 |
BF1-2316A-00-00 |
VALVE COMP. Price: $354.99 |
| 39 |
1C3-23188-L1-00 |
O-RING This part replaces 1C3-23188-L0-00. Price: $3.20 |
| 40 |
1C3-23188-N0-00 |
O-RING Price: $8.49 |
| 41 |
1C3-23188-P0-00 |
O-RING Price: $7.49 |
| 42 |
1W4-23114-L0-00 |
GASKET This part replaces 1AE-23147-00-00. Price: $8.49 |
| 43 |
1C3-23190-L1-00 |
AIR VALVE COMP. This part replaces 1C3-23190-L0-00. Price: $25.99 |
| 44 |
1C3-23188-R1-00 |
O-RING This part replaces 1C3-23188-R0-00. Price: $4.30 |
| 45 |
1C3-23141-E1-00 |
SPRING, FRONT FORK (K=4.3N/MM) This part replaces 5XC-23141-M1-00. Price: $134.99 |
| 46 |
5XC-23111-01-00 |
BOLT, CAP This part replaces 5XC-23111-00-00. Price: $78.99 |
| 47 |
2HH-23158-L0-00 |
GASKET Price: $11.99 |
| 48 |
276-23114-01-00 |
GASKET This part replaces 276-23114-00-00. Price: $4.60 |
| 49 |
1SS-23340-10-00 |
UNDER BRACKET COMP. Price: $612.99 |
| 50 |
93332-00081-00 |
BEARING Price: $63.99 |
| 51 |
90105-08154-00 |
BOLT, FLANGE Price: $8.49 |
| 52 |
1SS-23389-00-00 |
GUIDE, CABLE Price: $4.35 |
| 53 |
90105-06107-00 |
BOLT, FLANGE Price: $9.49 |
| 54 |
90387-06104-00 |
COLLAR Price: $1.60 |
| 55 |
17D-2315J-50-00 |
PROTECTOR 2 Price: $17.49 |
| 56 |
17D-2315H-50-00 |
PROTECTOR 1 Price: $17.49 |
| 57 |
90109-06232-00 |
BOLT Price: $4.15 |
| 58 |
17D-23466-00-00 |
CLAMP Price: $18.99 |
| 59 |
17D-23467-00-00 |
CLAMP Price: $27.99 |
| 60 |
90105-06170-00 |
BOLT, FLANGE Price: $5.49 |
