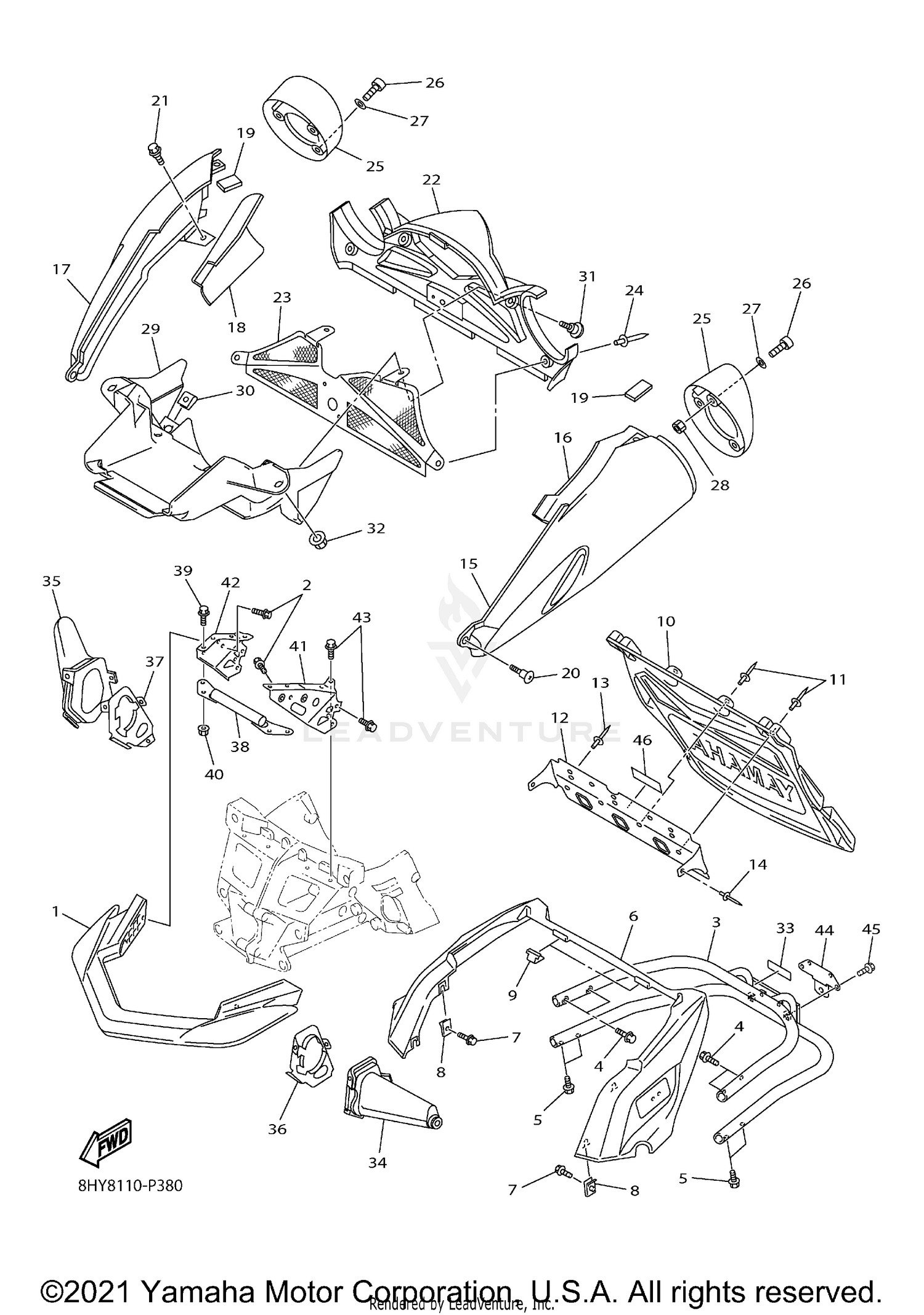

| Ref | Part Number | Description |
|---|
| 1 |
8FA-77511-01-00 |
BUMPER, FRONT 1 Price: $271.99 |
| 2 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 3 |
8ET-77541-01-00 |
BUMPER, REAR 1 Price: $307.99 |
| 4 |
95817-08020-00 |
BOLT, FLANGE This part replaces 95822-08020-00. Price: $10.49 |
| 5 |
95814-08016-00 |
BOLT, FLANGE This part replaces 95822-08016-00. Price: $10.49 |
| 6 |
8FA-77542-00-00 |
BUMPER, REAR 2 Price: $114.99 |
| 7 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95802-06016-00. Price: $1.95 |
| 8 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 9 |
8HV-7717H-00-00 |
TAPE 4 Price: $2.15 |
| 10 |
8GW-77595-00-00 |
FLAP Price: $47.99 |
| 11 |
90267-47187-00 |
RIVET, BLIND (4.7X16.4 BLACK) Price: $2.50 |
| 12 |
8GW-77596-01-00 |
STOPPER, FLAP Price: $69.99 |
| 13 |
90267-48095-00 |
RIVET, BLIND (4.8X12.6 SILVER) Price: $2.70 |
| 14 |
90267-47195-00 |
RIVET, BLIND (4.7X16.4 YELLOW) Price: $4.20 |
| 16 |
8HV-77261-00-00 |
LINING, SHROUD 1 Price: $22.99 |
| 18 |
8HV-77262-00-00 |
LINING, SHROUD 2 Price: $29.99 |
| 19 |
8HV-77263-00-00 |
LINING, SHROUD 3 Price: $2.60 |
| 20 |
90154-06009-00 |
SCREW, BINDING Price: $3.60 |
| 21 |
90109-06220-00 |
BOLT Price: $11.49 |
| 22 |
8FP-84516-01-00 |
COVER, TAILLIGHT Price: $89.99 |
| 23 |
8FP-77441-00-00 |
LOUVER 1 Price: $126.99 |
| 24 |
90267-47187-00 |
RIVET, BLIND (4.7X16.4 BLACK) Price: $2.50 |
| 25 |
8FP-77517-00-00 |
CAP Price: $167.99 |
| 26 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.65 |
| 27 |
92990-06200-00 |
WASHER, PLAIN Price: $1.00 |
| 28 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 29 |
8FP-2117E-01-00 |
BRACKET, TAILLIGHT Price: $20.99 |
| 30 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 31 |
90109-06220-00 |
BOLT Price: $11.49 |
| 32 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 33 |
8GS-2817S-E0-00 |
LABEL, PULLING LOAD LIMIT Price: $3.85 |
| 34 |
8FU-2198F-01-00 |
COVER 1 Price: $34.99 |
| 35 |
8FU-2198J-01-00 |
COVER 3 Price: $34.99 |
| 36 |
8FU-2195E-01-00 |
PLATE, STEERING BRACKET 1 Price: $13.49 |
| 37 |
8FU-2195F-01-00 |
PLATE, STEERING BRACKET 2 Price: $13.49 |
| 38 |
8FP-21979-00-00 |
BRACKET ,FRONT HOOD Price: $103.99 |
| 39 |
95817-06014-00 |
BOLT, FLANGE This part replaces 95822-06014-00. Price: $2.80 |
| 40 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 41 |
8FA-21949-00-00 |
BRACKET, FRONT Price: $69.99 |
| 42 |
8FA-21959-00-00 |
BRACKET, FRONT BUMPER Price: $64.99 |
| 43 |
95814-08016-00 |
BOLT, FLANGE This part replaces 95822-08016-00. Price: $10.49 |
| 44 |
84R-77592-00-00 |
BRACKET, HITCH 2 Price: $37.99 |
| 45 |
95817-08020-00 |
BOLT, FLANGE This part replaces 95827-08020-00. Price: $10.49 |
