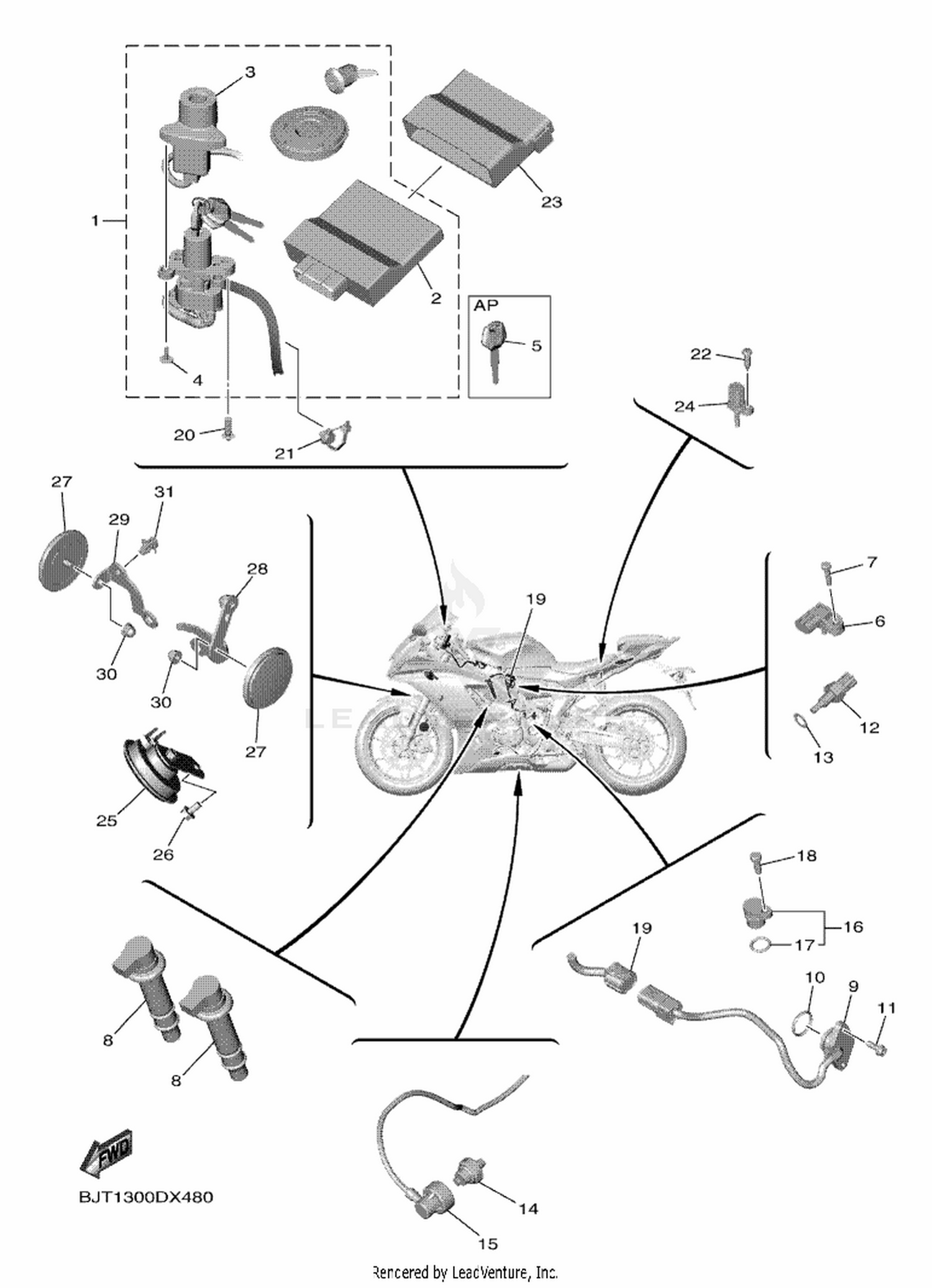

48 ELECTRICAL 2

48 ELECTRICAL 2

Parts (24)

RefPart NumberDescription
1 BJT-W8250-10 MAIN SW. IMMOBILIZER KIT Price: Call Us
7 91312-05020 BOLT Price: Call Us
8 1WS-82310-00 IGNITION COIL ASSY Price: Call Us
9 1WS-82540-00 NEUTRAL SWITCH ASSY Price: Call Us
10 93210-21001 O-RING Price: Call Us
11 90110-05067 BOLT, HEXAGON SOCKET HEAD Price: Call Us
12 4P9-83591-00 THERMO UNIT Price: Call Us
13 90430-10004 GASKET Price: Call Us
14 1WS-82504-00 OIL PRESSURE SWITCH ASSY Price: Call Us
15 1WS-81315-00 LEAD WIRE ASSY Price: Call Us
16 3P6-15399-00 PLUG, BLIND Price: Call Us
18 91312-06016 BOLT Price: Call Us
19 BAT-82309-00 WIRE, SUB LEAD Price: Call Us
20 90109-08195 BOLT Price: Call Us
21 90464-45008 CLAMP Price: Call Us
22 97702-50120 SCREW, TAPPING Price: Call Us
23 B34-H5546-00 BAND Price: Call Us
24 5YU-85886-00 SENSOR, AIR TEMPERATURE Price: Call Us
25 BD5-83371-00 HORN Price: Call Us
26 95D32-06012 BOLT, FLANGE DEEP RECESS Price: Call Us
27 4AG-85111-00 REFLECTOR, 1 Price: Call Us
28 BEB-85112-00 BRACKET, REFLECTOR 1 Price: Call Us
29 BEB-85122-00 BRACKET, REFLECTOR 2 Price: Call Us
30 90176-06011 NUT, CROWN Price: Call Us
